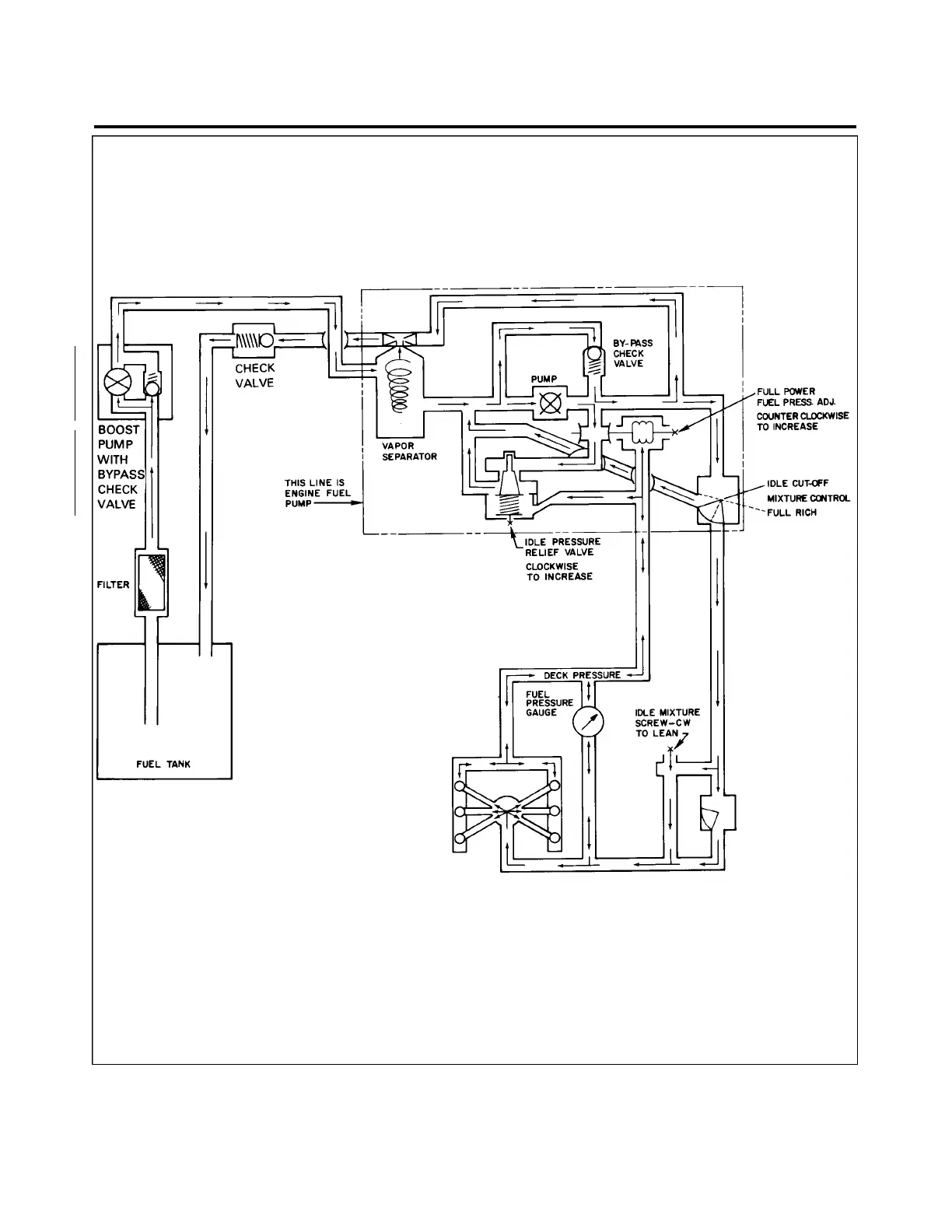

Figure 73-1. Schematic Diagram of Fuel Injection System
Effectivity 73-10-03
PA-28RT-201T Page 73-02
Revised: August 17, 1982
3C15
