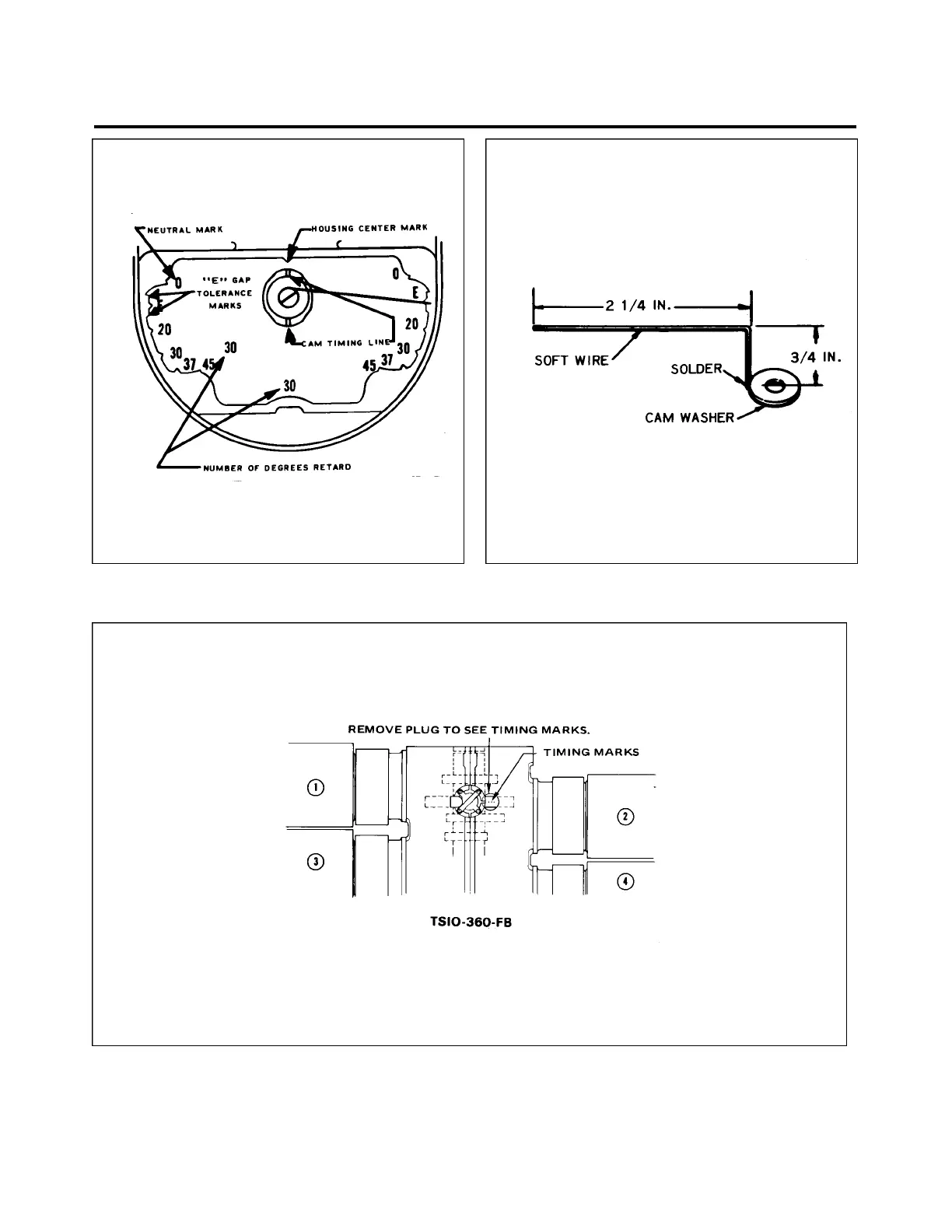

Figure 74-8. Cast-In Timing Marks Figure 74-9. Fabricated Pointer
Figure 74-10. Engine Timing Marks
Effectivity 74-11-03
PA-28RT-201T Page 74-08
Revised: February 23, 1979
3D17
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
