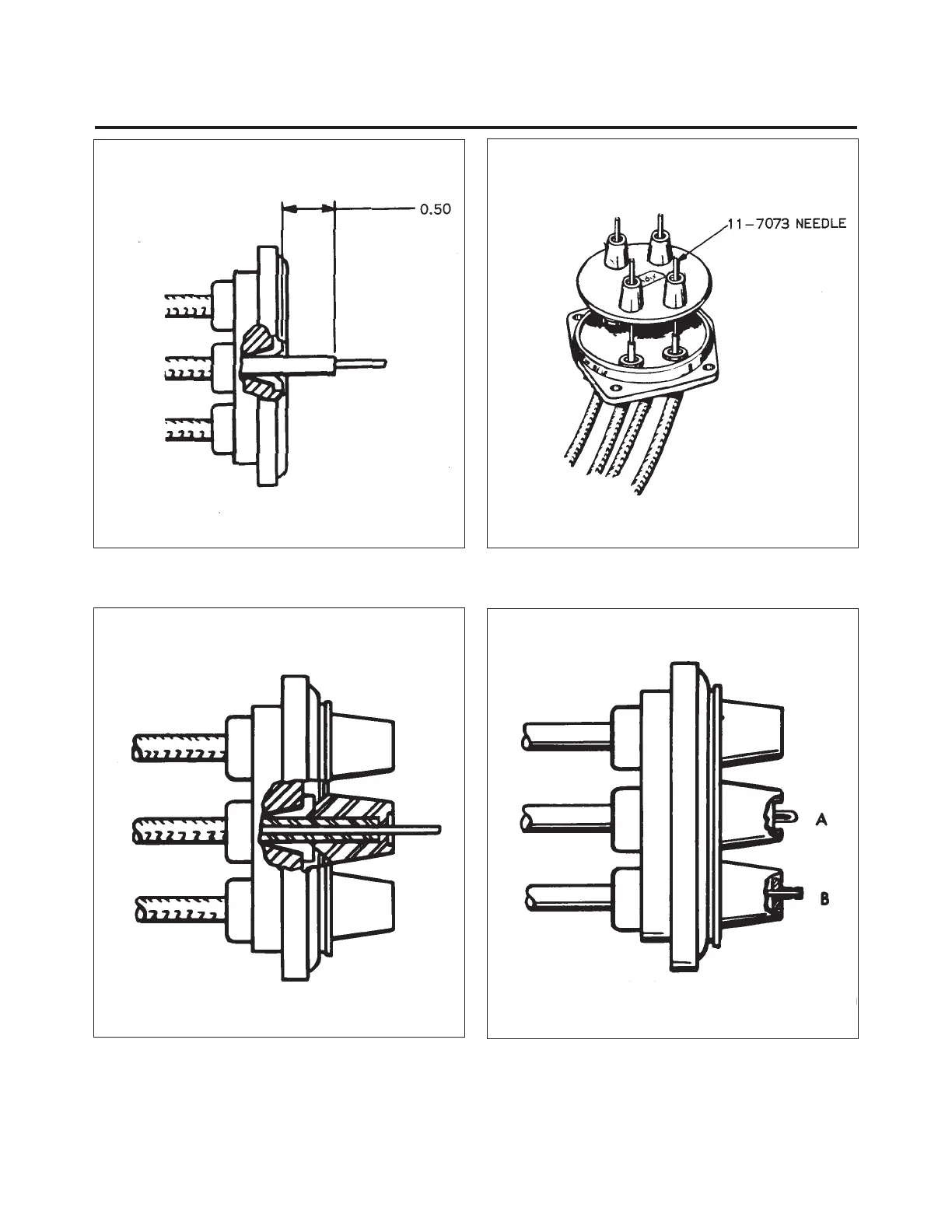

Figure 74-40. Measuring Wire From Top of Figure 74-41. Installing Grommet Over Lead
Ferrule Assemblies
Figure 74-42. Lead Assembly Installed in Figure 74-43. Wire Doubled Over for Installation
Grommet of Eyelet
Effectivity 74-21-03
PA-28RT-201 Page 74-36
December 1, 1978
3E21
