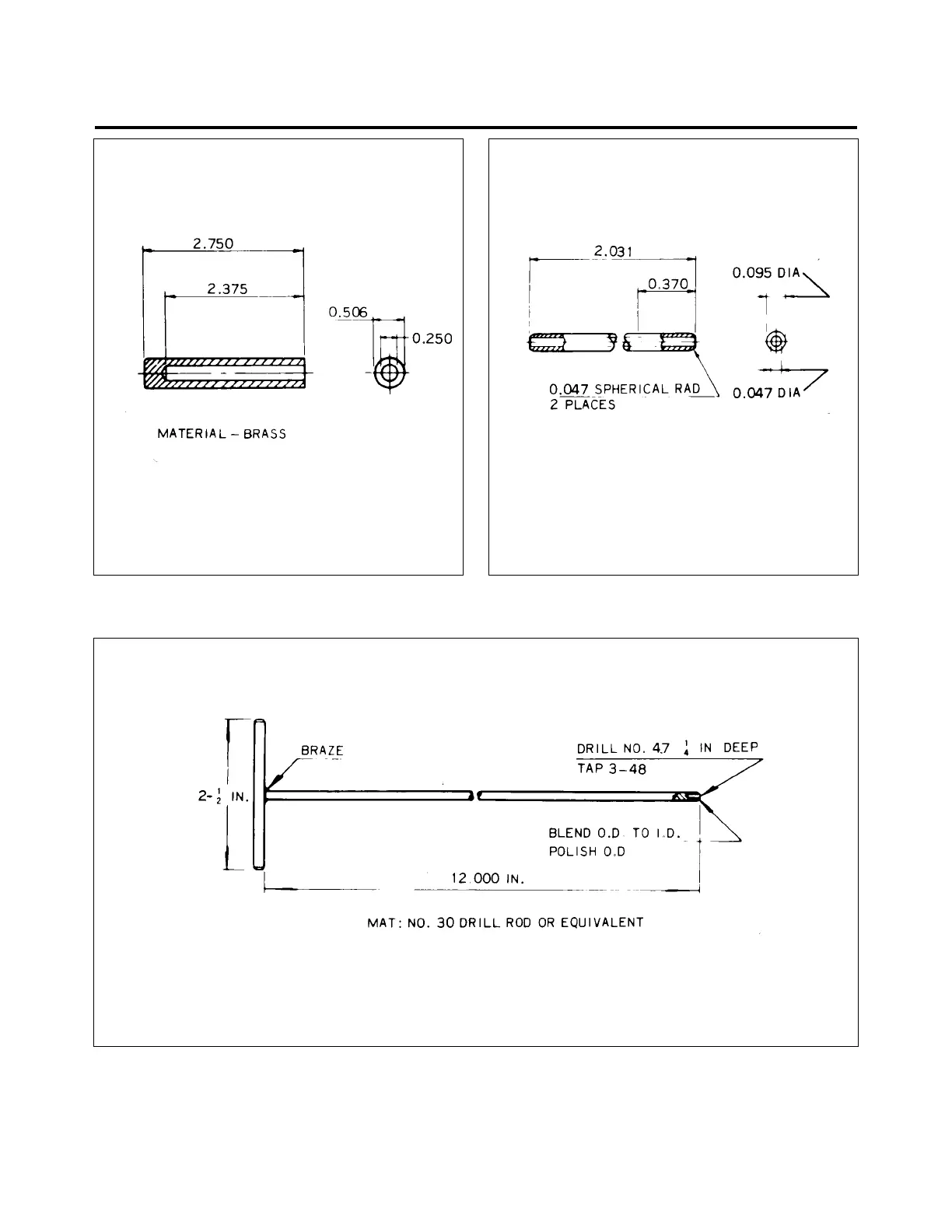

Figure 95-3. Ignition Harness Ferrule Figure 95-4. Needle
Seating Tool
Figure 95-5. Assembly Tool For Ignition Harness Insulating Sleeve Installation
95-10-01
Page 95-04
Added: December 21, 1981
3K6
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
