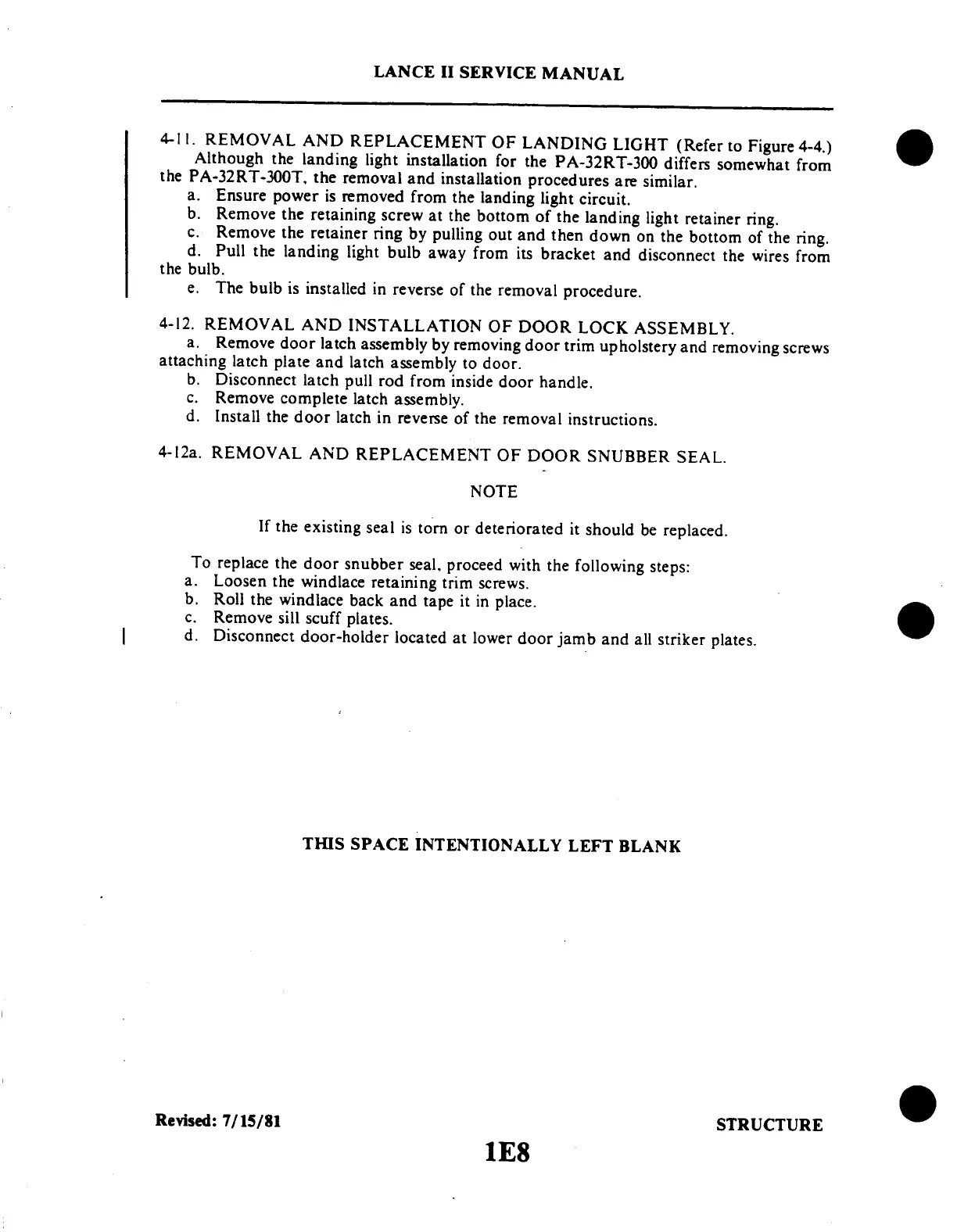

LANCE
II
SERVICE
MANUAL
4-11.
REMOVAL
AND
REPLACEMENT
OF
LANDING
LIGHT
(Refer
to
Figure
4-4.)
Although
the
landing
light
installation
for
the
PA-32RT-300
differs
somewhat
from
the
PA-32RT-300T,
the
removal
and
installation
procedures
are
similar.
a.
Ensure
power
is
removed
from
the
landing
light
circuit.
b.
Remove
the
retaining
screw
at
the
bottom
of
the
landing
light
retainer
ring.
c.
Remove
the
retainer
ring
by
pulling
out
and
then
down
on
the
bottom
of
the
ring.
d.
Pull
the
landing
light
bulb
away
from
its
bracket
and
disconnect
the
wires
from
the
bulb.
e.
The
bulb
is
installed
in
reverse
of
the
removal
procedure.
4-12.
REMOVAL
AND
INSTALLATION
OF
DOOR
LOCK
ASSEMBLY.
a.
Remove
door
latch
assembly
by
removing
door
trim
upholstery
and
removing
screws
attaching
latch
plate
and
latch
assembly
to
door.
b.
Disconnect
latch
pull
rod
from
inside
door
handle.
c.
Remove
complete
latch
assembly.
d.
Install
the
door
latch
in
reverse
of
the
removal
instructions.
4-12a.
REMOVAL
AND
REPLACEMENT
OF
DOOR
SNUBBER
SEAL.
NOTE
If
the
existing
seal
is
torn
or
deteriorated
it
should
be
replaced.
0
To
replace
the
door
snubber
seal.
proceed
with
the
following
steps:
a.
Loosen
the
windlace
retaining
trim
screws.
b.
Roll
the
windlace
back
and
tape
it
in
place.
c.
Remove
sill
scuff
plates.
d.
Disconnect
door-holder
located
at
lower
door
jamb
and
all
striker
plates.
THIS
SPACE
INTENTIONALLY
LEFT
BLANK
Revised:
7/15/81
