Piper PA-32RT-300T User Manual

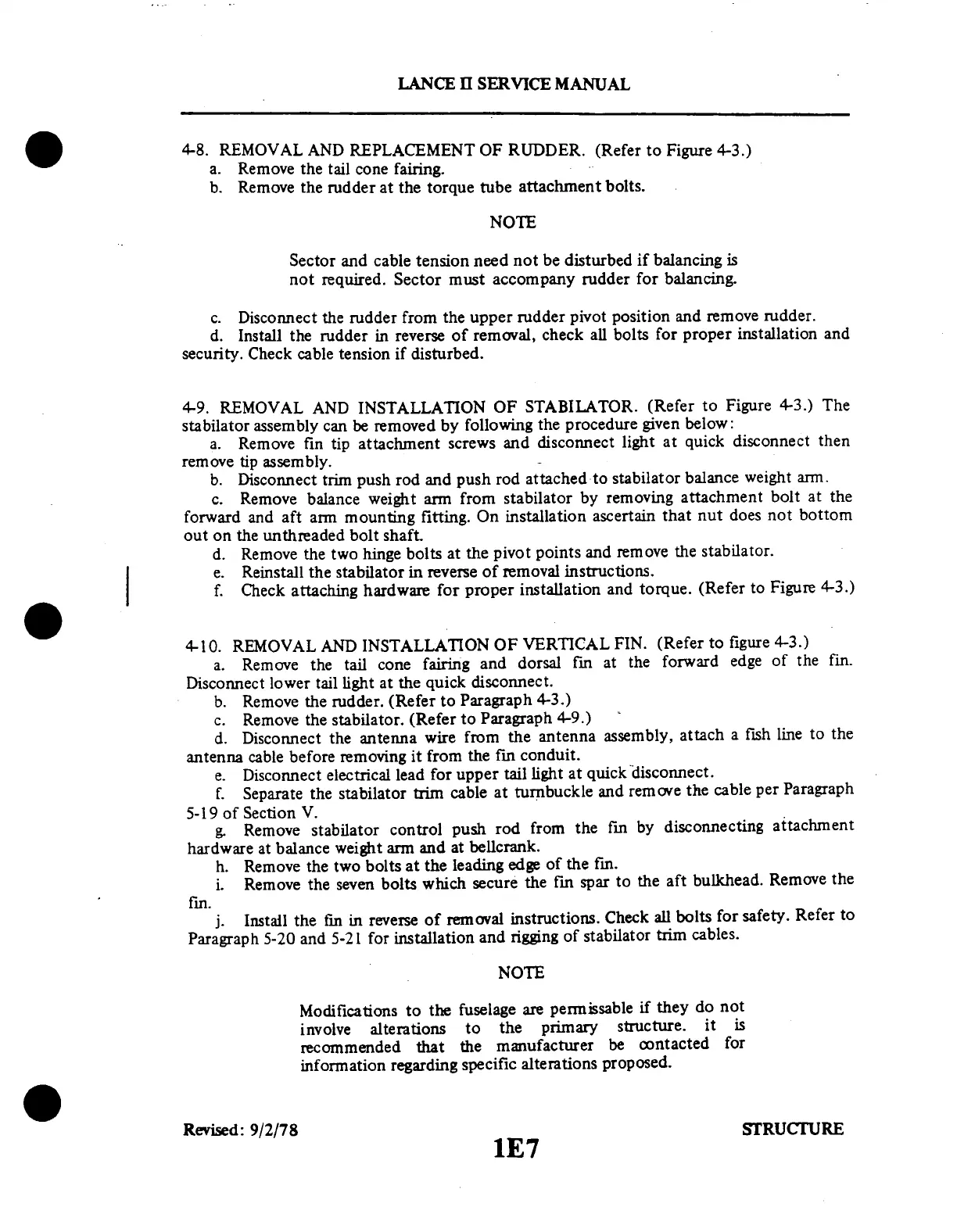

LANCE
II SERVICE
MANUAL
4-8.
REMOVAL
AND
REPLACEMENT
OF
RUDDER.
(Refer
to Figure
4-3.)
a.
Remove
the
tail cone
fairing.
b.
Remove
the rudder
at the
torque
tube
attachment
bolts.
NOTE
Sector
and cable
tension
need not
be
disturbed
if balancing
is
not required.
Sector
must
accompany
rudder
for
balancing.
c. Disconnect
the
rudder
from
the
upper
rudder
pivot
position
and
remove
rudder.
d. Install
the
rudder
in
reverse
of
removal,
check
all
bolts
for proper
installation
and
security.
Check
cable
tension
if disturbed.
4-9.
REMOVAL
AND
INSTALLATION
OF STABILATOR.
(Refer
to Figure
4-3.)
The
stabilator
assembly
can
be
removed
by
following
the
procedure
given
below:
a.
Remove
fin
tip
attachment
screws
and disconnect
light
at quick
disconnect
then
remove
tip assembly.
b.
Disconnect
trim
push
rod
and
push
rod
attached
to
stabilator
balance
weight
arm.
c. Remove
balance
weight
arm
from
stabilator
by
removing
attachment
bolt
at
the
forward
and
aft arm
mounting
fitting.
On installation
ascertain
that nut
does
not
bottom
out on
the unthreaded
bolt
shaft.
d.
Remove
the
two
hinge
bolts
at the
pivot
points
and
remove
the
stabilator.
e.
Reinstall
the
stabilator
in reverse
of removal
instructions.
f.
Check
attaching
hardware
for
proper
installation
and
torque.
(Refer
to
Figure
4-3.)
4-10.
REMOVAL
AND
INSTALLATION
OF
VERTICAL
FIN.
(Refer
to figure
4-3.)
a.
Remove
the
tail
cone
fairing
and
dorsal
fin
at
the
forward
edge
of
the
fin.
Disconnect
lower
tail
light
at the
quick
disconnect.
b.
Remove
the
rudder.
(Refer
to Paragraph
4-3.)
c.
Remove
the stabilator.
(Refer
to Paragraph
4-9.)
d.
Disconnect
the
antenna
wire
from
the
antenna
assembly,
attach
a
fish
line
to the
antenna
cable
before
removing
it
from
the
fin
conduit.
e.
Disconnect
electrical
lead
for
upper
tail
light
at
quick
disconnect.
f.
Separate
the
stabilator
trim
cable
at
turnbuckle
and
remove
the
cable
per
Paragraph
5-19
of
Section
V.
g.
Remove
stabilator
control
push
rod
from
the
fin
by
disconnecting
attachment
hardware
at
balance
weight
arm
and
at bellcrank.
h.
Remove
the
two
bolts
at
the
leading
edge
of
the
fin.
i.
Remove
the
seven
bolts
which
secure
the
fin
spar
to
the
aft
bulkhead.
Remove
the
fin.
j.
Install
the
fin
in reverse
of
removal
instructions.
Check
all
bolts
for
safety.
Refer
to
Paragraph
5-20
and
5-21
for
installation
and
rigging
of
stabilator
trim
cables.
NOTE
Modifications
to
the
fuselage
are
permissable
if
they
do
not
involve
alterations
to
the
primary
structure.
it
is
recommended
that
the
manufacturer
be
contacted
for
information
regarding
specific
alterations
proposed.
Revised:
9/2/78
STRUCTURE
1E7
