LANCE II SERVICE MANUAL
NUMBER
MATERIAL
1 2024-T3
2
20240
(1)
-3
2024-T3
4
2024-T3
5
2024-T3
6 2024-T3
7
2024-T3
8 20240 (2)
9
FIBERGLASS
10
2024-T3
(2)
11
THERMOPLASTIC
OR FIBERGLASS
12
2024-T3
(2)
13 5052-H34
14
2024-T3
(2)
15
2024-T3
(1)
THICKNESS
.016
.020
.020
.025
.032
.040
.051
.032
.020
.040
.040
.032
.016
NOTE: LEFTWINGSHOWNRIGHT WING
OPPOSITE.
1. HEATTREATTO 2024-T42
AFTER FORMING.
2. HEAT TREAT TO 2024-T3
AFTER
FORMING.

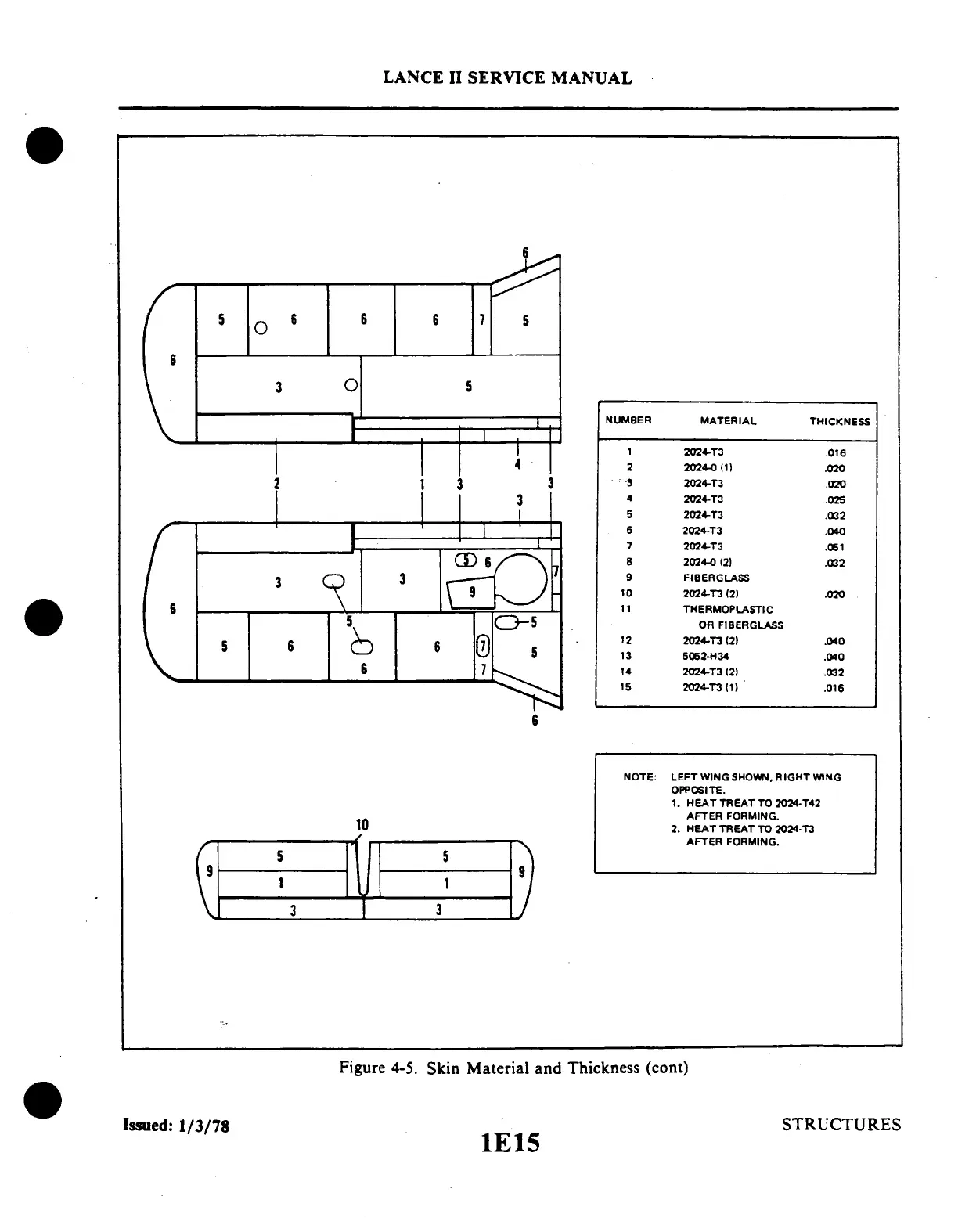

Figure 4-5. Skin Material and Thickness (cont)
Issued:
1/3/78
STRUCTURES
1E15
