Piper PA-32RT-300T User Manual

LANCE
II SERVICE
MANUAL
850

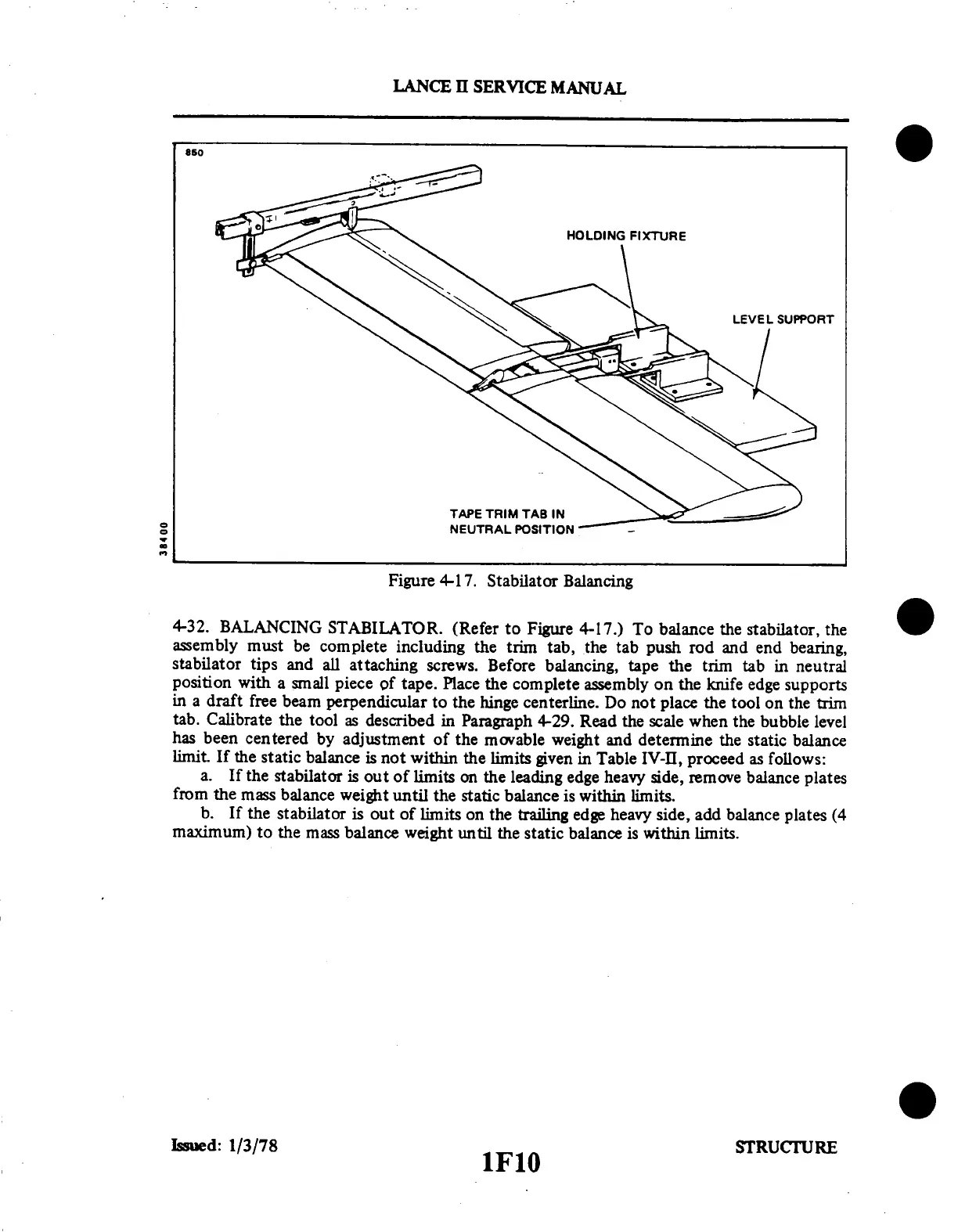

Figure
4-17.
Stabilator
Balancing
4-32.
BALANCING
STABILATOR.
(Refer
to
Figure
4-17.)
To balance
the
stabilator,
the
assembly
must
be complete
including
the
trim
tab,
the
tab
push
rod
and end
bearing,
stabilator
tips
and
all attaching
screws.
Before
balancing,
tape
the
trim
tab
in
neutral
position
with
a small
piece
of
tape.
Place
the complete
assembly
on
the knife
edge
supports
in a draft
free beam
perpendicular
to
the hinge
centerline.
Do
not
place
the
tool on
the
trim
tab. Calibrate
the
tool
as described
in
Paragraph
4-29.
Read
the scale
when
the bubble
level
has
been
centered
by adjustment
of the
movable
weight
and
determine
the
static
balance
limit.
If the
static
balance
is not
within
the
limits
given
in
Table
IV-II,
proceed
as follows:
a.
If the
stabilator
is
out
of limits
on
the leading
edge
heavy
side,
remove
balance
plates
from
the
mass
balance
weight
until
the
static
balance
is within
limits.
b.
If the
stabilator
is out
of
limits
on the
trailing
edge heavy
side,
add balance
plates
(4
maximum)
to the
mass
balance
weight
until
the
static
balance
is
within
limits.
Issued:
1/3/78
STRUCTURE
1F10
