LANCE II SERVICE MANUAL
2062
1. RUDDER & STEERING PEDAL ASSY.
2. BOLT, WASHER,
NUT & COTTER
PIN
3. BOLT, BUSHINGS, WASHER & NUT.
4. GUARD PIN, CABLE
5. PULLEY CLUSTER
6. RUB BLOCKS
7. BOLT, BUSHINGS, WASHER & NUT
8.
PULLEY
CLUSTER
9. GUARD
PIN,
CABLE
10.
GUARD PLATE,
CABLE
11. BOLT, BUSHINGS, WASHER & NUT
12. PULLEY
CLUSTER
13. CABLE,
RIGHT FORWARD
14. CABLE, LEFT FORWARD
15. TURNBUCKLE, LEFT
16.
TURNBUCKLE,
RIGHT
17. CABLE,
AFT
18. SECTOR ASSEMBLY
19. PULLEY, AFT
20. FITTING, STOP

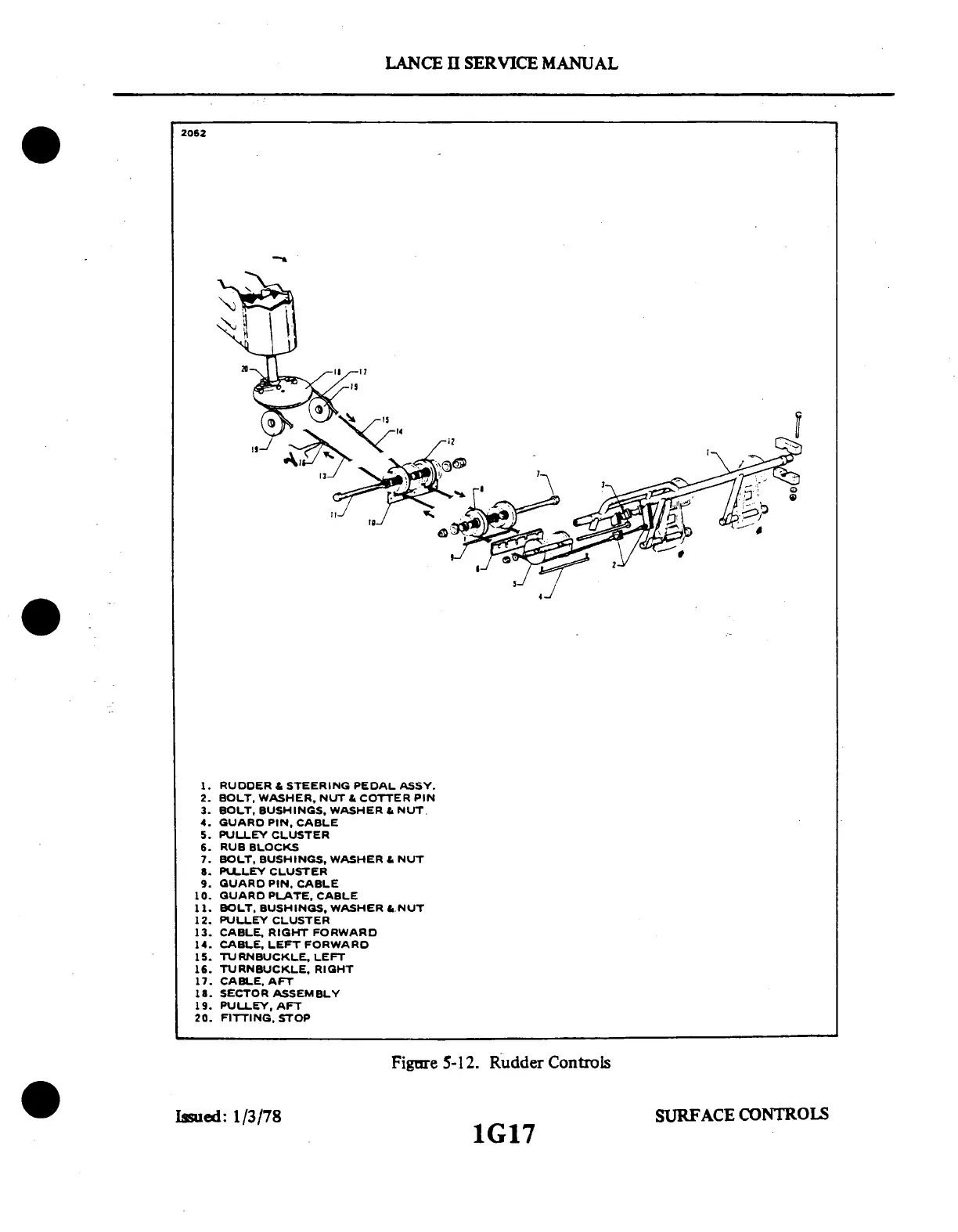

Figure
5-12. Rudder
Controls
Isued: 1/3/78
SURFACE CONTROLS
1G17
