1876
LANCE
II SERVICE
MANUAL
I. BRACKET,
ROO
ATTACHMENT
2. BOLT,
WASHER
&
NUT
3. JAM NUT
4.
ROD, FLAP
CONTROL
5.
BOLT.
BEARING
BLOCK
ATTACHMENT
6. BRACKET,
BEARING
BLOCK
7. BLOCK.
BEARING
8. NUT, LOCK
9. SCREW,
FLAP AOJUSTMENT
10. BOLT,
WASHER
& NUT
I 1.
CRANK (ARM),
TORQUE TUBE
12.
BOLT,
WASHER
&
BUSHING
13.
FITTING.
TORQUE
TUBE
STOP
14.
TUBE, TORQUE
15.
BOLT,
WASHER
& NUT
I6. BLOCK.
BEARING
17. SPROCKET,
TENSION
SPRING
18.
BOLT,
WASHER
& NUT
19.
BRACKET,
BEARING
BLOCK
20.
CHAIN,
TENSION
SPRING
21.
CLEVIS
BOLT,
BUSHING
NUT
&
COTTER
PIN
22.
SPRING,
TENSION
23.
CABLE,
FLAP
CONTROL
24.
PULLEY
25. TURNBUCKLE
26.
CLEVIS
BOLT,
NUT &
COTTER
PIN
27. BOLT,
BUSHING,
WASHER
& NUT
28. BRACKET,
FLAP
HANDLE
29. HANDOLE,
FLAP
30.
BOLT,
WASHER
& NUT
31. SPROCKET,
RETURN
SPRING
32.
CHAIN, RETURN
SPRING
33.
BLOCK,
BEARING
34.
SPRING.
RETURN
33.
BUTTON,
FLAP
RELEASE
36.
RUB
BLOCK
37.
SAFETY
COTTER
PIN

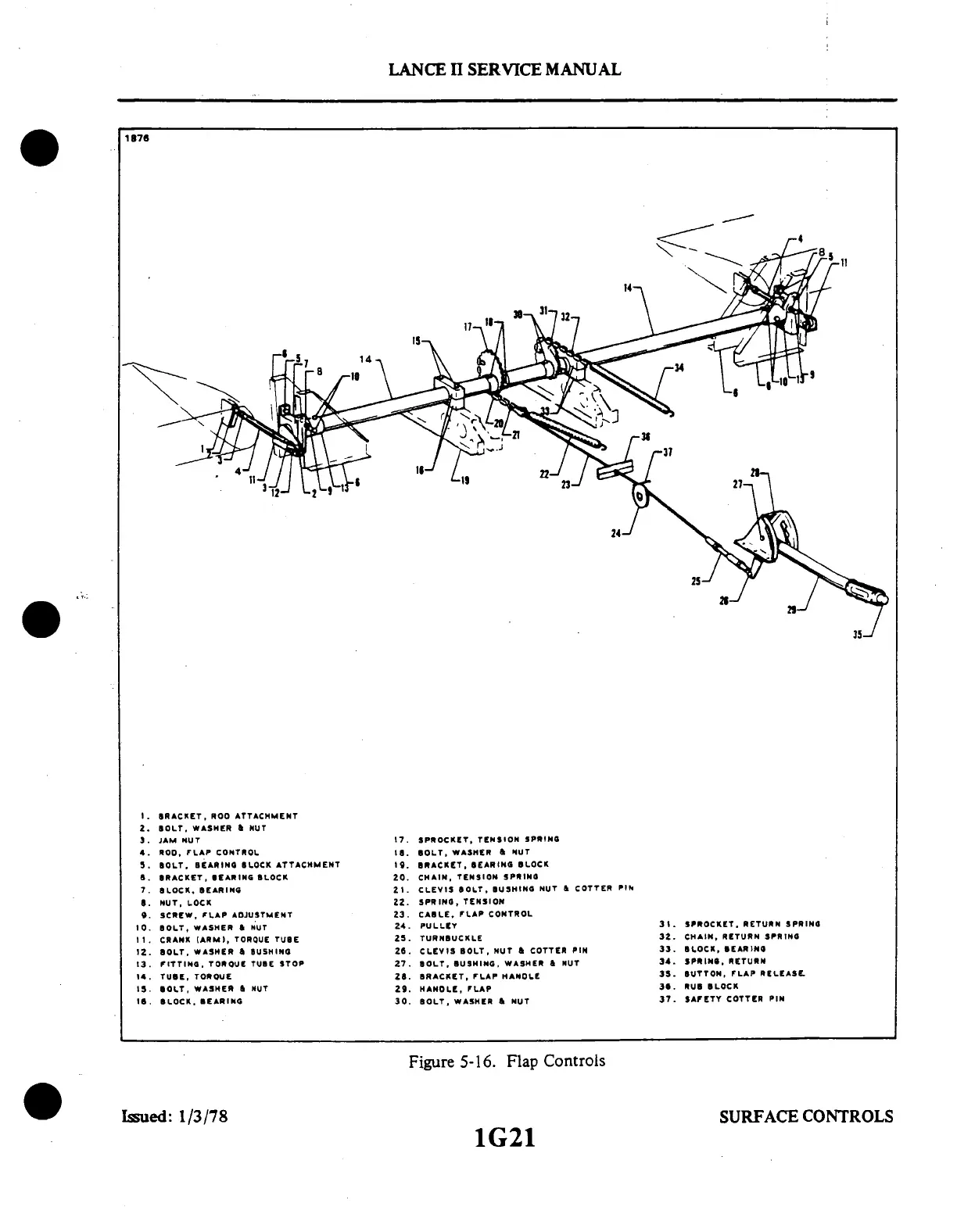

Figure
5-16.
Flap
Controls
Issued:
1/3/78
SURFACE
CONTROLS
1G21
