Piper PA-32RT-300T User Manual

13.250
LANCE
II SERVICE
MANUAL
MATERIAL:
.750 X 31.50 X 4.00 ALUM. BAR
NOTE:
I.DRILL AND TAP TO 1/4-28NF. BOLT AND FILE
TO REQUIRED LENGTH.
2.SPAR STOCK MAY
BE USED IN PLACE
OF ALUM;
BAR STOCK.
SEE NOTE I
t
31.50

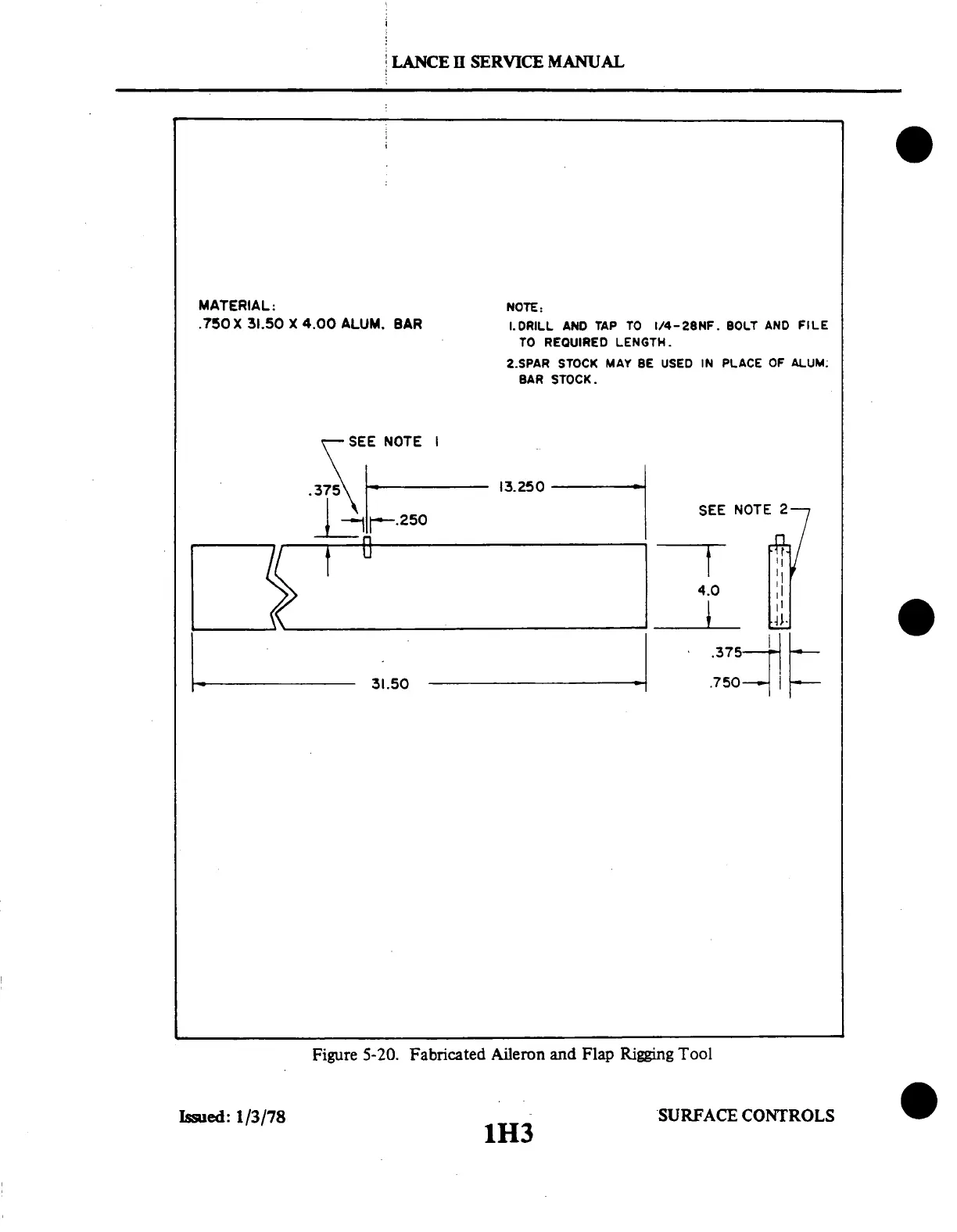

Figure 5-20.
Fabricated
Aileron and
Flap Rigging
Tool
Issued: 1/3/78
SURFACE
CONTROLS
1H3
