Piper PA-32RT-300T User Manual

31
DETAIL
A
837
40

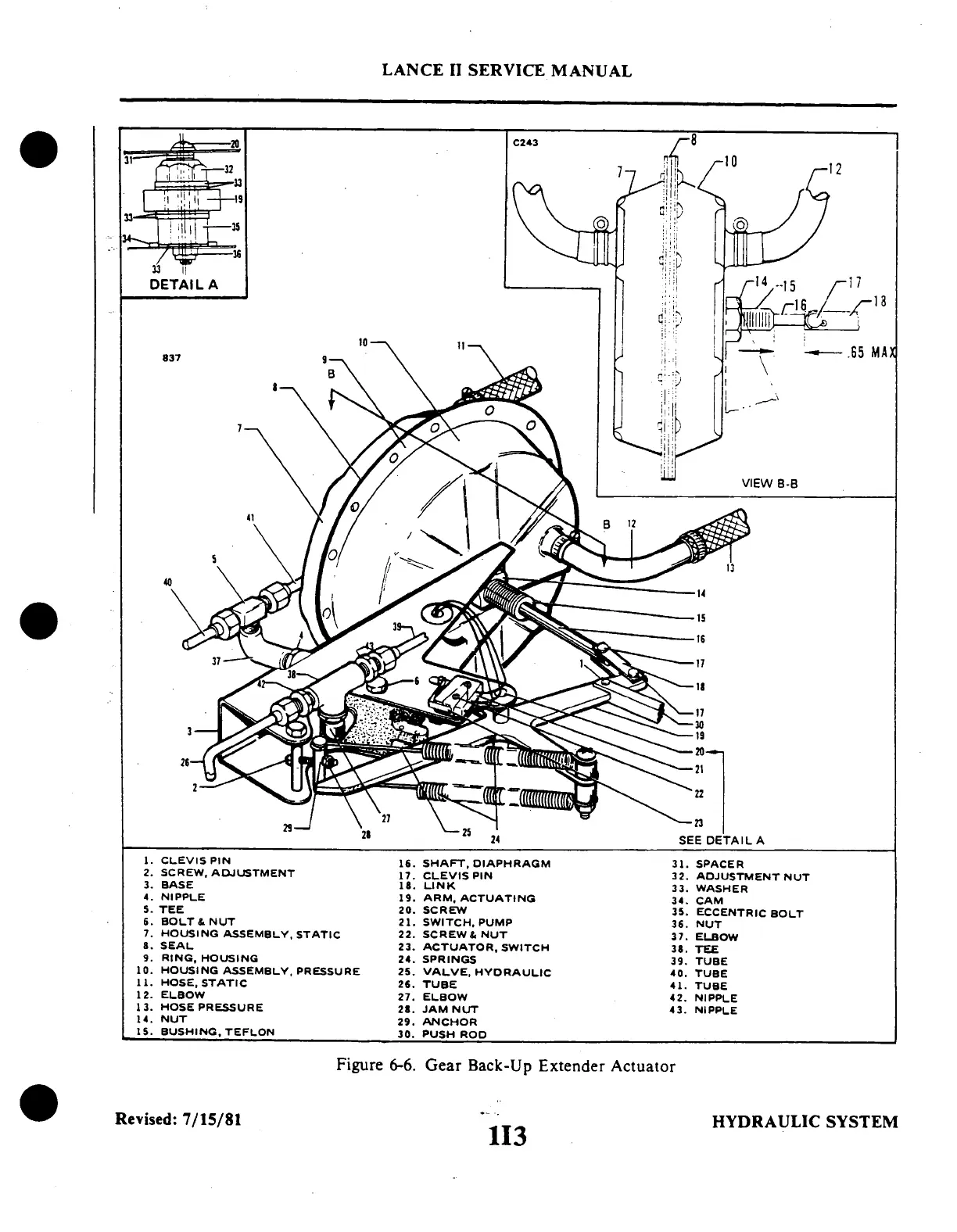

Figure
6-6.
Gear
Back-Up
Extender
Actuator
LANCE
II
SERVICE
MANUAL
a
MAX
VIEW
8-B
IL A
1. CLEVIS PIN
2.
SCREW,
ADJUSTMENT
3. BASE
4. NIPPLE
5.
TEE
6. BOLT
&
NUT
7.
HOUSING
ASSEMBLY,
STATIC
8. SEAL
9.
RING,
HOUSING
10.
HOUSING
ASSEMBLY,
PRESSURE
11.
HOSE,
STATIC
12. ELBOW
13.
HOSE PRESSURE
14. NUT
15.
BUSHING,
TEFLON
16.
SHAFT,
DIAPHRAGM
17. CLEVIS
PIN
18.
LINK
19. ARM,
ACTUATING
20. SCREW
21.
SWITCH,
PUMP
22.
SCREW&
NUT
23. ACTUATOR,
SWITCH
24.
SPRINGS
25.
VALVE,
HYDRAULIC
26. TUBE
27.
ELBOW
28. JAM
NUT
29.
ANCHOR
30.
PUSH
ROD
31. SPACER
32.
ADJUSTMENT
NUT
33.
WASHER
34. CAM
35.
ECCENTRIC
BOLT
36. NUT
37.
ELBOW
38. TEE
39.
TUBE
40.
TUBE
41.
TUBE
42.
NIPPLE
43. NIPPLE
Revised:
7/15/81
113
HYDRAULIC
SYSTEM
