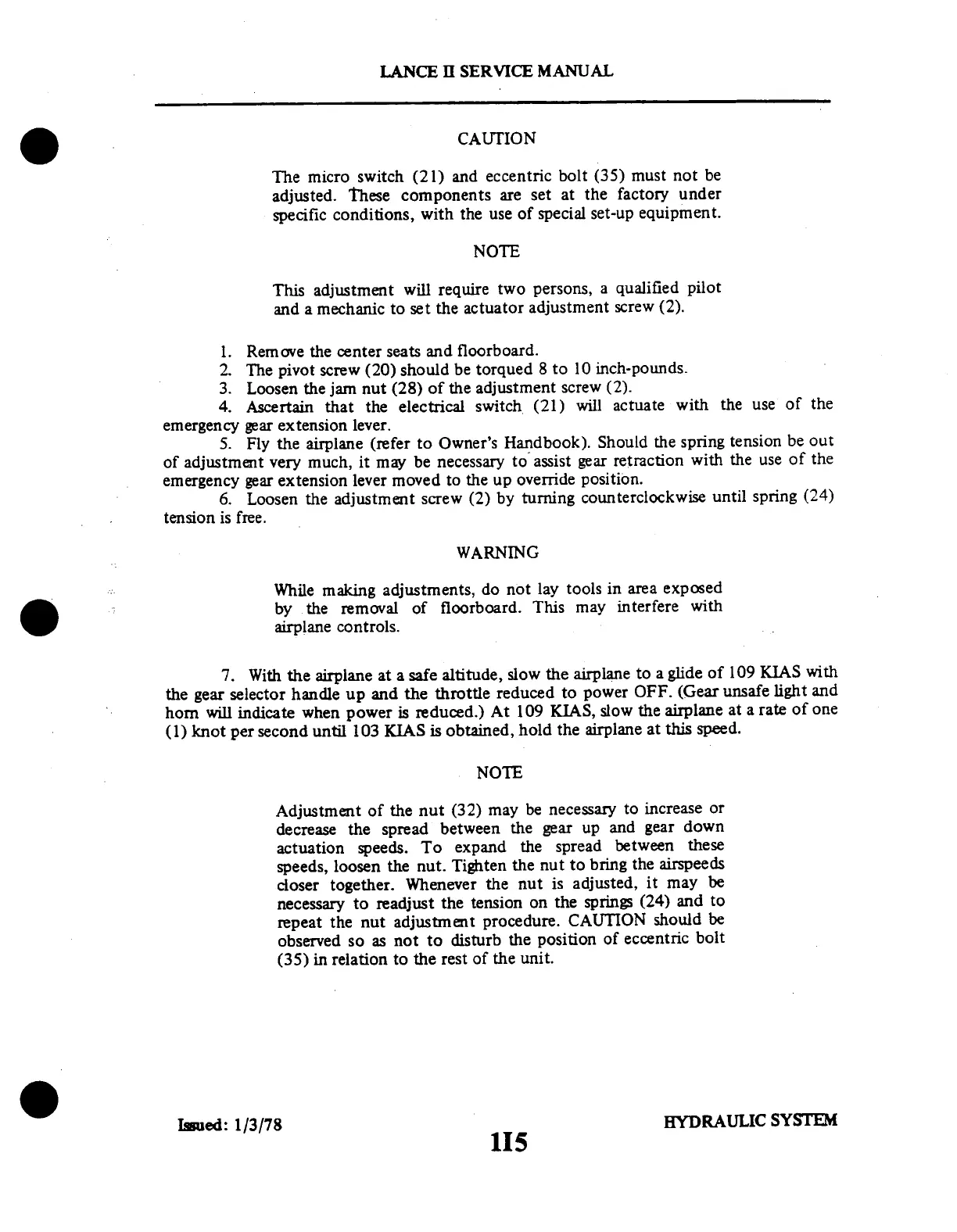

Piper PA-32RT-300T User Manual

LANCE
II
SERVICE
MANUAL
CAUTION
The
micro
switch
(21)
and
eccentric
bolt
(35)
must
not
be
adjusted.
These
components
are
set
at
the
factory
under
specific
conditions,
with
the
use
of
special
set-up
equipment.
NOTE
This
adjustment
will
require
two
persons,
a
qualified
pilot
and
a
mechanic
to
set
the
actuator
adjustment
screw
(2).
1.
Remove
the center
seats
and
floorboard.
2.
The
pivot
screw
(20)
should
be
torqued
8 to
10
inch-pounds.
3.
Loosen
the jam
nut
(28)
of
the
adjustment
screw
(2).
4.
Ascertain
that
the
electrical
switch
(21)
will
actuate
with
the
use
of
the
emergency
gear
extension
lever.
5.
Fly
the
airplane
(refer
to
Owner's
Handbook).
Should
the
spring
tension
be out
of
adjustment
very
much,
it may
be
necessary
to
assist
gear
retraction
with
the
use
of
the
emergency
gear extension
lever
moved
to the
up override
position.
6.
Loosen
the
adjustment
screw
(2)
by turning
counterclockwise
until
spring
(24)
tension
is
free.
WARNING
While
making
adjustments,
do
not
lay
tools
in area
exposed
by
the
removal
of
floorboard.
This
may
interfere
with
airplane
controls.
7.
With
the
airplane
at a
safe
altitude,
slow
the
airplane
to
a glide
of
109
KIAS
with
the
gear
selector
handle
up
and
the
throttle
reduced
to
power
OFF.
(Gear
unsafe
light
and
horn
will
indicate
when
power
is
reduced.)
At
109
KIAS,
slow
the
airplane
at
a rate
of
one
(1)
knot
per
second
until
103
KIAS
is obtained,
hold
the
airplane
at
this
speed.
NOTE
Adjustment
of
the
nut
(32)
may
be
necessary
to
increase
or
decrease
the
spread
between
the
gear
up
and
gear
down
actuation
speeds.
To
expand
the
spread
between
these
speeds,
loosen
the
nut.
Tighten
the
nut
to
bring
the
airspeeds
closer
together.
Whenever
the
nut
is
adjusted,
it
may
be
necessary
to
readjust
the
tension
on
the
springs
(24)
and
to
repeat
the
nut
adjustment
procedure.
CAUTION
should
be
observed
so
as
not
to
disturb
the
position
of
eccentric
bolt
(35)
in
relation
to
the
rest
of
the
unit.
Issued:
1/3/78
HYDRAULIC
SYSTEM
115
