LANCE
II SERVICE
MANUAL
895
BEARING
END

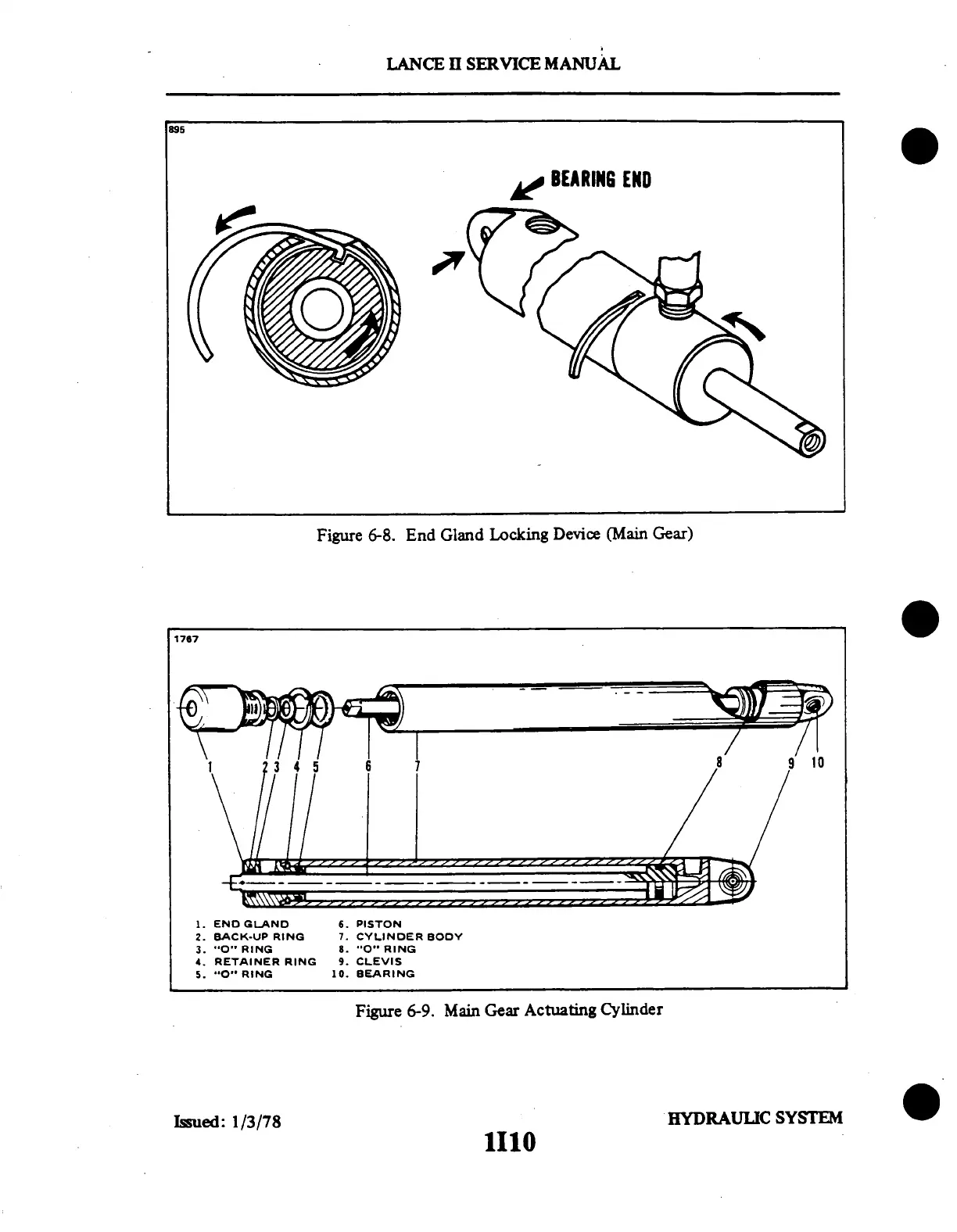

Figure
6-8.
End Gland
Locking
Device
(Main
Gear)
1767
10
1. END GLAND 6. PISTON
2. BACK-UP RING 7. CYLINDER BODY
3.
"O" RING
8. "O" RING
4. RETAINER RING 9. CLEVIS
5. "O" RING
10. BEARING
Figure
6-9.
Main Gear
Actuating
Cylinder
Issued: 1/3/78
HYDRAULIC
SYSTEM
1110
