LANCE II SERVICE
MANUAL
1. SUPPORT
FITTING,
AFT
2. SNAP RING
3. BEARING
4. RETAINER, TUBE ASSEMBLY
5. FITTING, GREASE
6.
HINGE,
GEAR
DOOR
7. BOLT,
WASHERS
AND NUT
8. LINK,
UPPER
9. WASHER. SPACER
10. LINK,
LOWER
11. DOOR.GEAR
12. NUT
13. HOUSING, STRUT
14.
PLUG. HYDRAULIC
FLUID
15. VALVE ASSEMBLY
16. SUPPORT
FITTING, FORWARD
17.
FITTING,
GREASE
18.
SPRING,
DOWNLOCK
19. TURNBUCKLE
20.
SWIVEL ASSEMBLY
21. RETRACTION FITTING
22. JAM
NUT
TORQUE
23.
ROD, PISTON
24. CYLINDER,
HYDRAULIC ACTUATING
50-70 IN.-LB.
25.
BOLT,
WASHERS,
NUT AND
COTTER
PIN
TORQUE 26. STUD. SIDE BRACE SUPPORT
27.
SUPPORT
BRACKET
SKETCH
A
50-70
IN.-LB.
28. LINK,
UPPER SIDE
BRACE
29. PLATE
30. HOOK,
OOWNLOCK
31. BOLT,
WASHERS, NUT
AND COTTER PIN
32.
PIN, DOWNLOCK
33. LINK,
LOWER SIDE
BRACE
34.
BRACKET,
SPRING
NOTE
35. SWITCH,
SAFETY
36. ACTUATOR,
SAFETY
SWITCH
37. BOLT, WASHERS, NUT AND COTTER PIN
WHEN REPLACING
BEARINGS
38. ROD, GEAR DOOR
14843-16 IN THE
UPPER SIDE
39. BOLT, WASHERS,
NUT AND COTTER PIN
40. FORK GEAR
BRACE
LINK,
IT WILL
BE
41. CLAMP
NECESSARY TO ONE REAMTHE
42. HOSE, BRAKE
I.D.
TO .375/.376. THE
43. BRAKEHOUSING
BUSHINGS MUST BE A PRESS
44. BRAKE DISC
45. TIRE
FIT; IF THEY ARE LOOSE UPON 46. ROD END BEARING
INSTALLATION, USE
LOCTITE
47. BOLT, WASHER,
NUT AND BUSHING
TO
ELIMINATE ANY
LOOSE-
49. BOLT
49.
SHIM WASHER
NESS.
50. BOLT
51.
WASHER
52. WASHER
53. BEARING, FORWARD
SUPPORT
54. BEARING, AFT SUPPORT
55. SNAP
RING
56. ROD END BEARING
57. JAM NUT
58. BRACKET,
SWITCH
59. CLIP,
SAFETY
60. BUSHING, TAPERED
31
SKETCH B

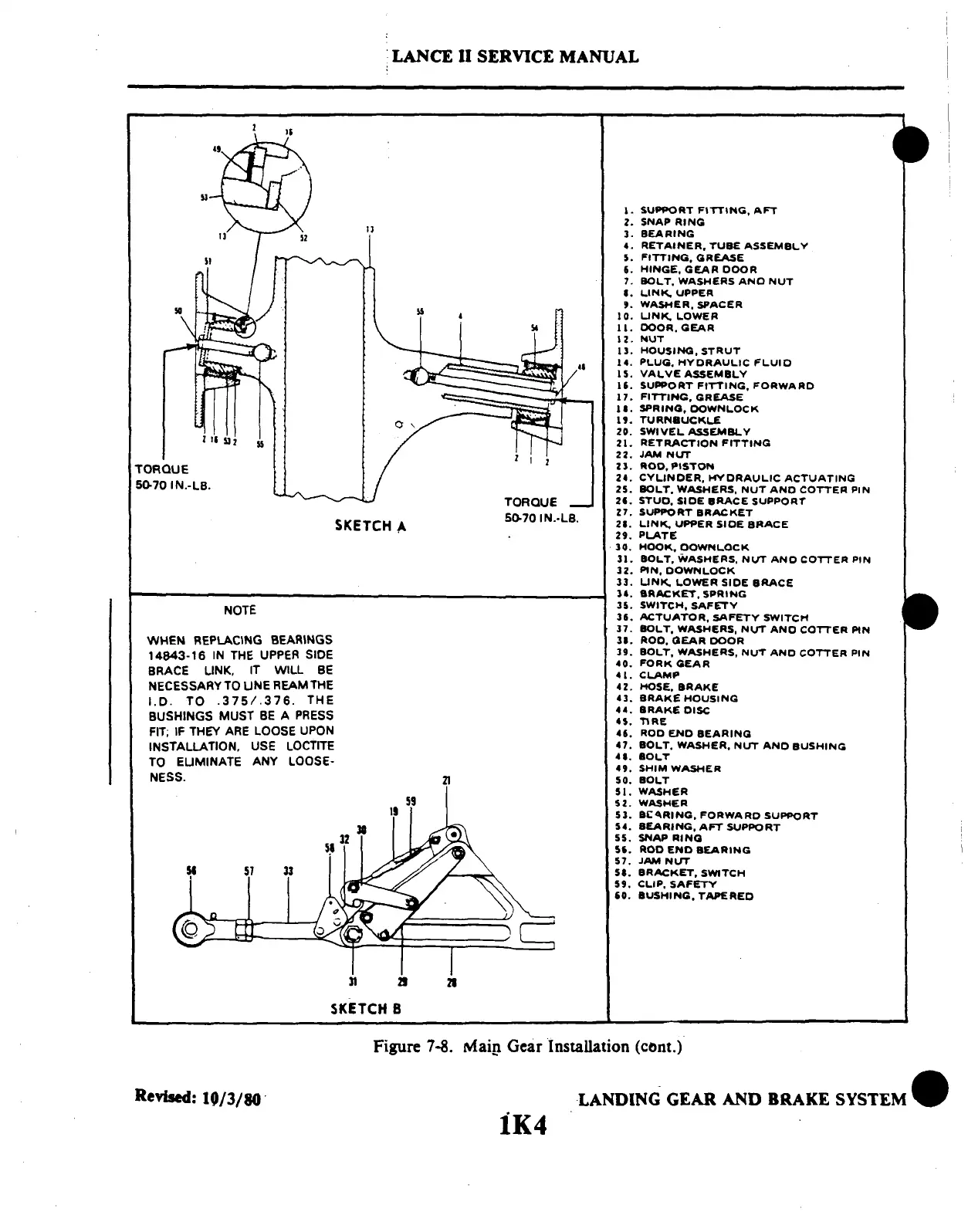

Figure 7-8. Main Gear Installation (cont.)
Revised:
10/3/80
LANDING
GEAR
AND
BRAKE
SYSTEM
1K4
