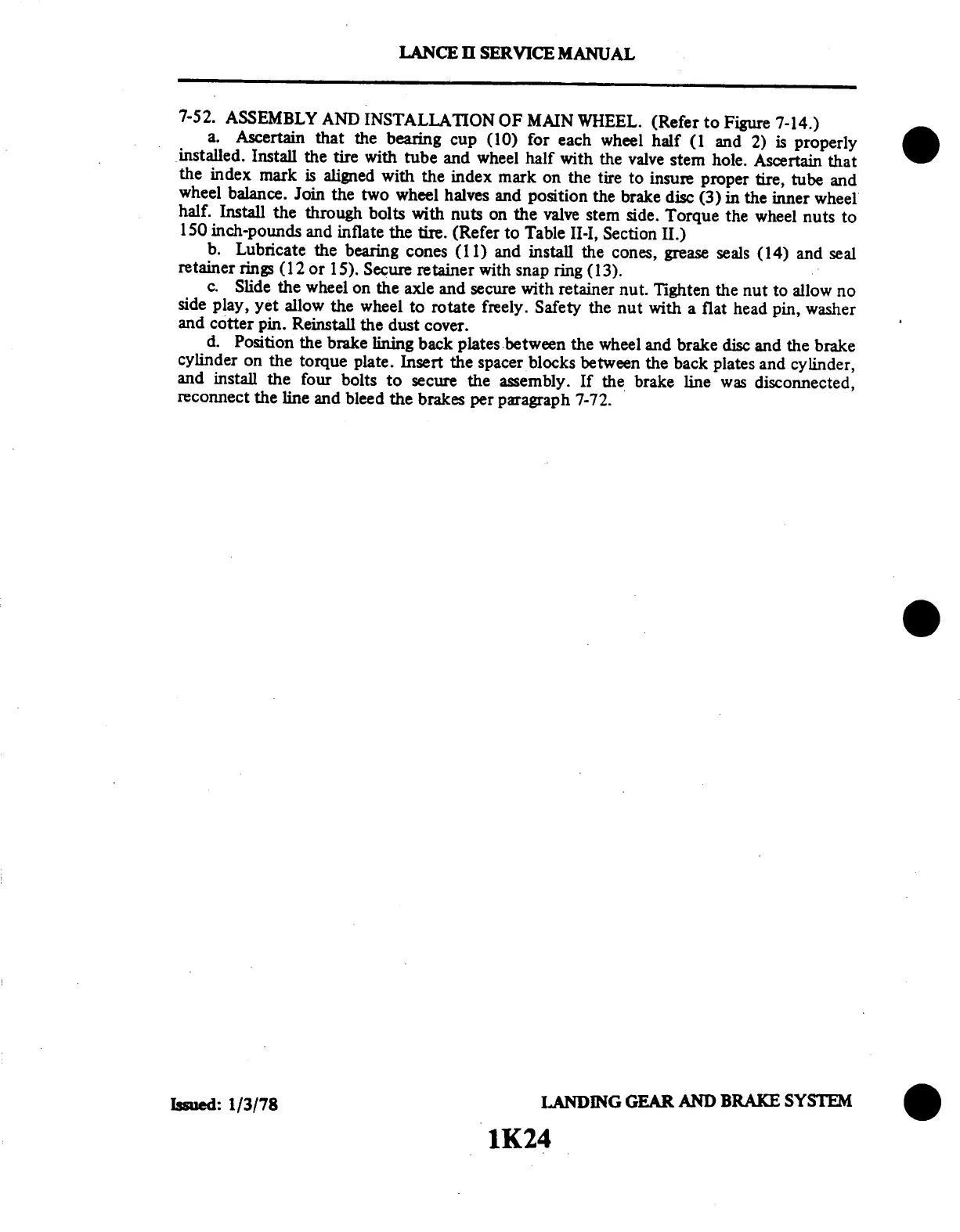

LANCE
II
SERVICE
MANUAL
7-52.
ASSEMBLY
AND
INSTALLATION
OF
MAIN
WHEEL.
(Refer
to
Figure
7-14.)
a.
Ascertain
that
the
bearing
cup
(10)
for
each
wheel
half
(I
and
2)
is
properly
installed.
Install
the
tire
with
tube
and
wheel
half
with
the
valve
stem
hole.
Ascertain
that
the
index
mark
is
aligned
with
the
index
mark
on
the
tire
to
insure
proper
tire,
tube
and
wheel
balance.
Join
the
two
wheel
halves
and
position
the
brake
disc
(3)
in
the
inner
wheel
half.
Install
the
through
bolts
with
nuts
on
the
valve
stem
side.
Torque
the
wheel
nuts
to
150
inch-pounds
and
inflate
the
tire.
(Refer
to
Table
II-I,
Section
II.)
b.
Lubricate
the
bearing
cones
(11)
and
install
the
cones,
grease
seals
(14)
and
seal
retainer
rings
(12
or
15).
Secure
retainer
with
snap
ring
(13).
c.
Slide
the
wheel
on
the
axle
and
secure
with
retainer
nut.
Tighten
the
nut
to
allow
no
side
play,
yet
allow
the
wheel
to
rotate
freely.
Safety
the
nut
with
a
flat
head
pin,
washer
and
cotter
pin.
Reinstall
the
dust
cover.
d.
Position
the
brake
lining
back
plates
between
the
wheel
and
brake
disc
and
the
brake
cylinder
on
the
torque
plate.
Insert
the
spacer
blocks
between
the
back
plates
and
cylinder,
and
install
the
four
bolts
to
secure
the
assembly.
If
the
brake
line
was
disconnected,
reconnect
the
line
and
bleed
the
brakes
per
paragraph
7-72.
Issued:
1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1K24
