2
1. WHEEL
HALF
2.
WHEEL
HALF
3. BRAKE DISC
4. SCREW
5. LOCK WASHER
6. OUST SHIELD
7. NUT
8. WASHER
9.
WHEEL THROUGH
BOLT
10. BEARING CUP
I . BEARING CONE
12. GREASE SEAL RETAINER
13. SNAP RING
14. GREASE SEAL
15. GREASE
SEAL RETAINER
LANCE
II SERVICE
MANUAL
1677
MIN. DISC
.3490 40-1
.4050
40-1:
VIEW
A-A
1
THICKNESS
0A -STD.
20 - HVY DUTY
A
12
14
12
13

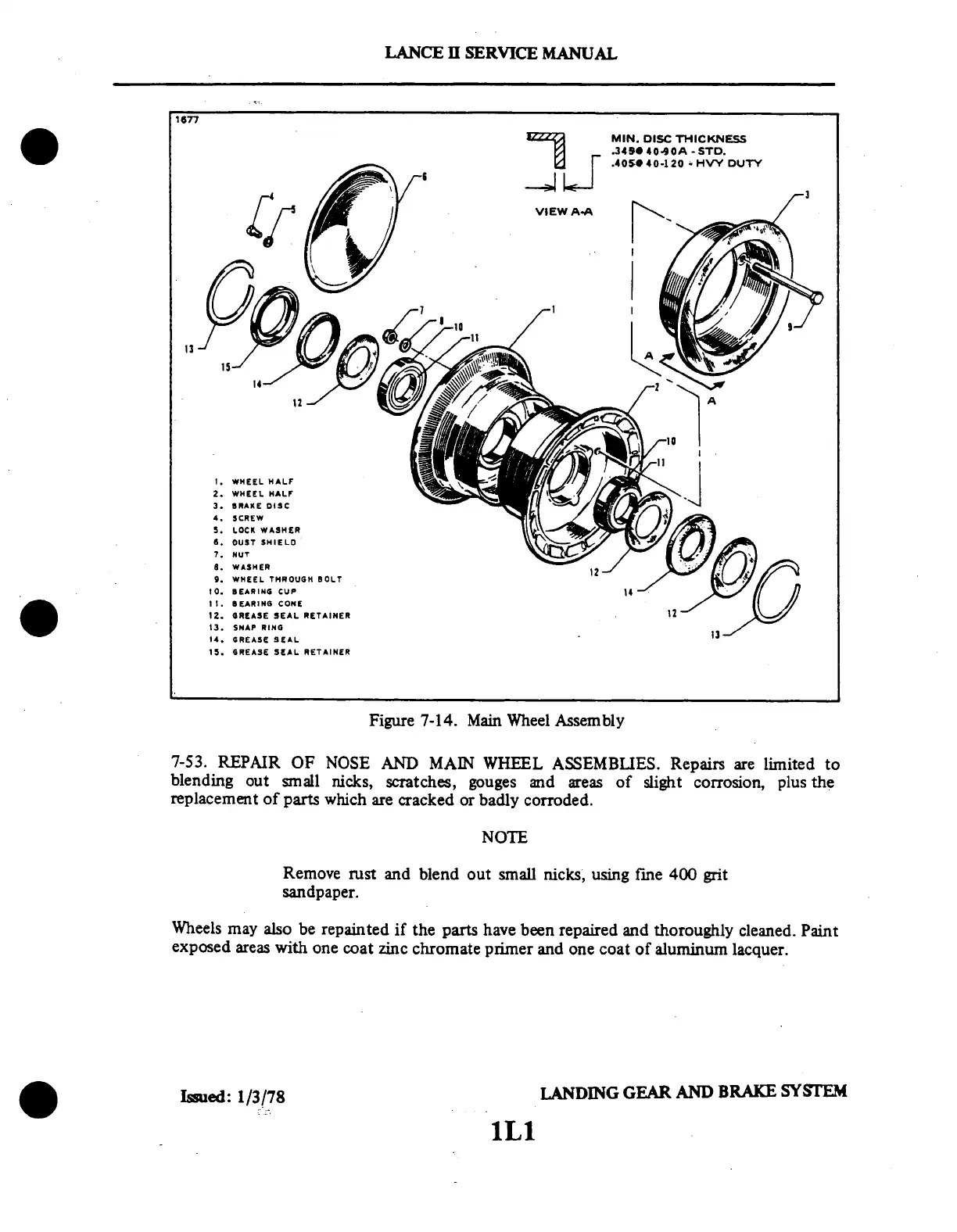

Figure 7-14.
Main Wheel
Assembly
7-53.
REPAIR
OF
NOSE AND
MAIN
WHEEL
ASSEMBLIES.
Repairs are
limited
to
blending
out small
nicks,
scratches,
gouges
and areas
of slight
corrosion,
plus
the
replacement
of parts
which are
cracked or
badly corroded.
NOTE
Remove rust and
blend out small nicks, using
fine 400 grit
sandpaper.
Wheels
may also
be repainted
if the
parts have
been repaired
and
thoroughly
cleaned.
Paint
exposed
areas with
one coat
zinc
chromate
primer
and one coat
of aluminum
lacquer.
Issued:
1/3/78
LANDING
GEAR
AND BRAKE
SYSTEM
1L1
