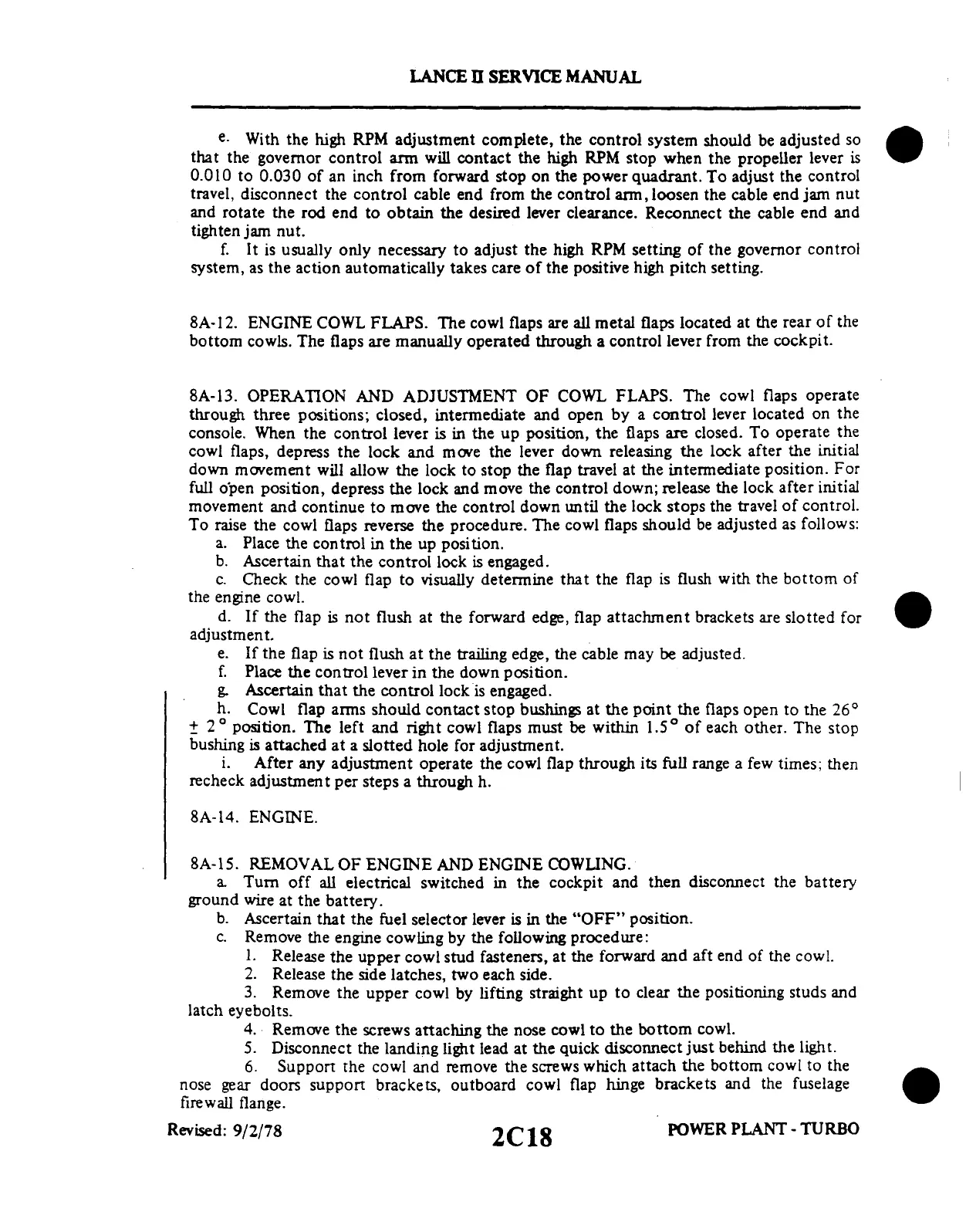

LANCE
II
SERVICE
MANUAL
e.
With
the
high
RPM
adjustment
complete,
the
control
system
should
be
adjusted
so
that
the
governor
control
arm
will
contact
the
high
RPM
stop
when
the propeller
lever
is
0.010
to 0.030
of
an
inch
from
forward
stop
on
the
power
quadrant.
To
adjust
the
control
travel,
disconnect
the
control
cable
end
from
the
control
arm,
loosen
the
cable
end
jam
nut
and
rotate
the rod
end
to
obtain
the
desired
lever
clearance.
Reconnect
the
cable
end
and
tighten
jam
nut.
f.
It
is
usually
only
necessary
to
adjust
the
high
RPM
setting
of
the
governor
control
system,
as
the
action
automatically
takes
care
of
the
positive
high
pitch
setting.
8A-12.
ENGINE
COWL
FLAPS.
The
cowl
flaps
are
all
metal
flaps
located
at
the
rear
of
the
bottom
cowls.
The
flaps
are
manually
operated
through
a
control
lever
from
the
cockpit.
8A-13.
OPERATION
AND
ADJUSTMENT
OF
COWL
FLAPS.
The
cowl
flaps
operate
through
three
positions;
closed,
intermediate
and
open
by
a
control
lever
located
on
the
console.
When
the
control
lever
is
in
the
up
position,
the
flaps
are
closed.
To
operate
the
cowl
flaps,
depress
the
lock
and
move
the
lever
down
releasing
the
lock
after
the
initial
down
movement
will
allow
the
lock
to stop
the
flap
travel
at
the
intermediate
position.
For
full
open
position,
depress
the
lock
and
move
the
control
down;
release
the
lock
after
initial
movement
and
continue
to
move
the
control
down
until
the
lock
stops
the
travel
of
control.
To
raise
the
cowl
flaps
reverse
the
procedure.
The
cowl
flaps
should
be
adjusted
as
follows:
a.
Place
the
control
in
the
up
position.
b.
Ascertain
that
the
control
lock
is
engaged.
c.
Check
the
cowl
flap
to
visually
determine
that
the
flap
is
flush
with
the
bottom
of
the
engine
cowl.
d.
If
the
flap
is
not
flush
at
the
forward
edge,
flap
attachment
brackets
are
slotted
for
adjustment.
e.
If
the
flap
is
not
flush
at
the
trailing
edge,
the
cable
may
be
adjusted.
f.
Place
the
control
lever
in
the
down
position.
g.
Ascertain
that
the
control
lock
is
engaged.
h.
Cowl
flap
arms
should
contact
stop
bushings
at
the
point
the
flaps
open
to
the
26
°
+
2
°
position.
The
left
and
right
cowl
flaps
must
be
within
1.5
°
of
each
other.
The
stop
bushing
is
attached
at
a
slotted
hole
for
adjustment.
i.
After
any
adjustment
operate
the
cowl
flap
through
its
full
range
a
few
times;
then
recheck
adjustment
per
steps
a
through
h.
8A-14.
ENGINE.
8A-15.
REMOVAL
OF
ENGINE
AND
ENGINE
COWLING.
a.
Turn
off
all
electrical
switched
in
the
cockpit
and
then
disconnect
the
battery
ground
wire
at
the
battery.
b.
Ascertain
that
the
fuel
selector
lever
is
in
the
"OFF"
position.
c.
Remove
the
engine
cowling
by
the
following
procedure:
1.
Release
the
upper
cowl
stud
fasteners,
at
the
forward
and
aft
end
of
the
cowl.
2.
Release
the
side
latches,
two
each
side.
3.
Remove
the
upper
cowl
by
lifting
straight
up
to
clear
the
positioning
studs
and
latch
eyebolts.
4.
Remove
the
screws
attaching
the
nose
cowl
to
the
bottom
cowl.
5.
Disconnect
the
landing
light
lead
at
the
quick
disconnect
just
behind
the
light.
6.
Support
the
cowl
and
remove
the
screws
which
attach
the
bottom
cowl
to
the
nose
gear
doors
support
brackets, outboard
cowl
flap
hinge
brackets
and
the
fuselage
firewall
flange.
Revised:
9/2/78
2C18
