1. TAIL PIPE
2. BLANKET TURBINE
3.
WASTE GATE - INTERCONNECT
CABLE
4. OIL LINE
5.
COMPRESSOR
6. AIR INTAKE
7. TURBINE
SUPPORT
TUBE
LANCE
SERVICE
MANUAL

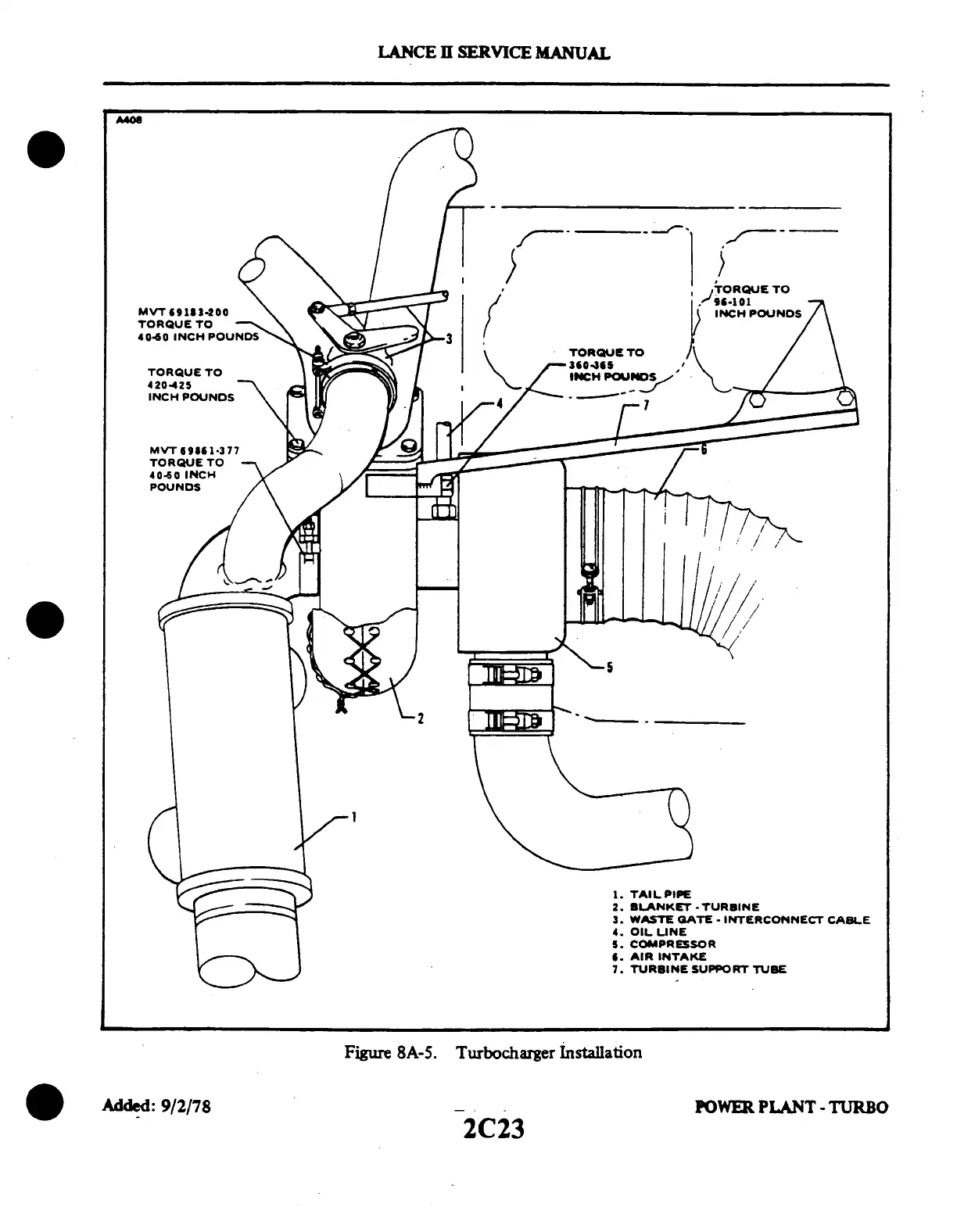

Figure 8A-5. Turbocharger
Installation
Added:
9/2/78
2C23
POWER
PLANT
-TURBO
