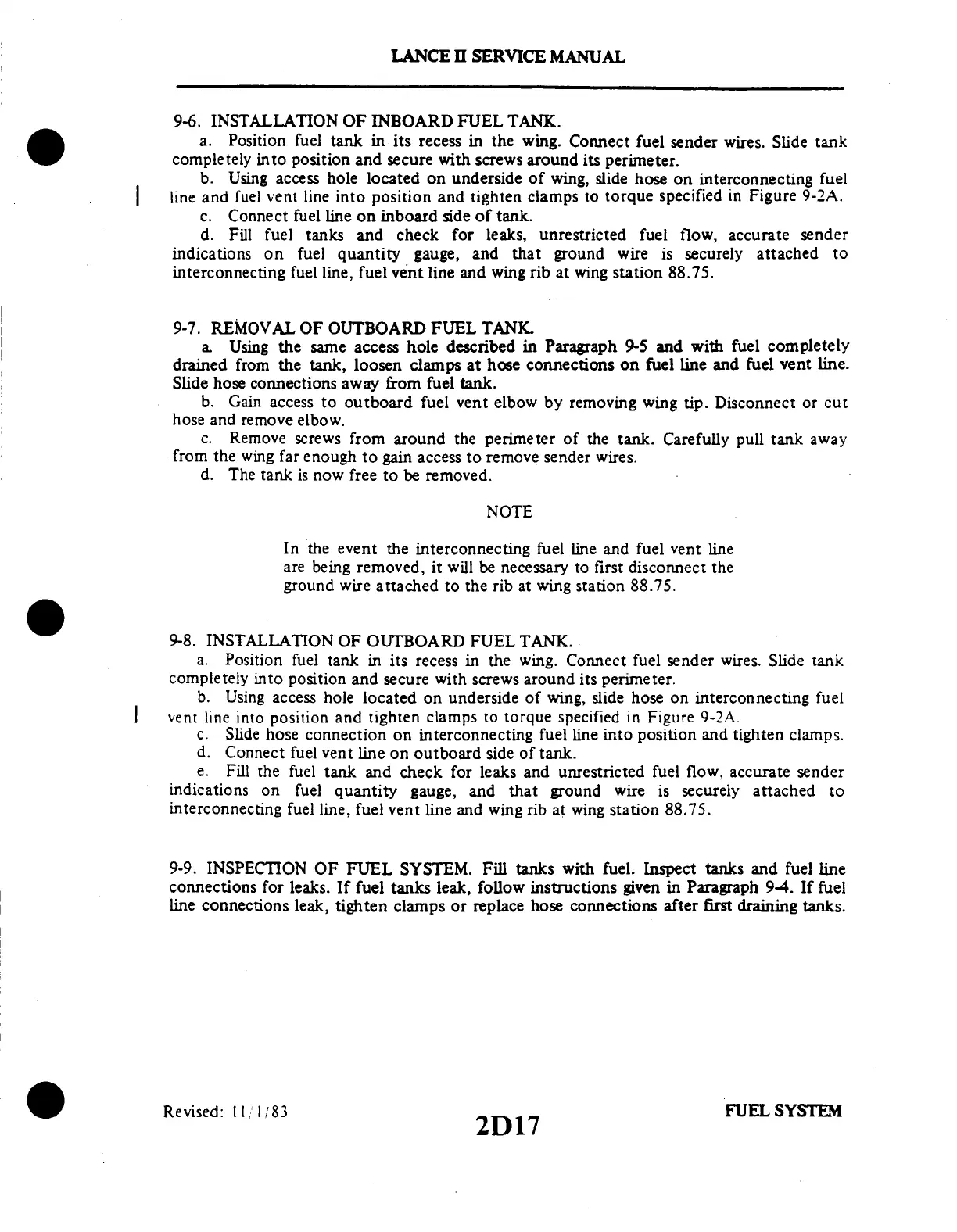

9-6.
INSTALLATION OF
INBOARD FUEL TANK.
a. Position
fuel tank in its recess
in the wing.
Connect fuel sender
wires. Slide tank
completely into position
and secure with screws around
its perimeter.
b. Using access
hole located on
underside of wing,
slide hose on
interconnecting fuel
line and fuel vent line
into position and tighten clamps to
torque specified in Figure 9-2A.
c. Connect fuel line on inboard side of tank.
d. Fill
fuel tanks and
check for leaks,
unrestricted fuel
flow, accurate
sender
indications on fuel quantity gauge, and that ground wire is securely attached to
interconnecting fuel line, fuel vent line and wing rib at wing station 88.75.
9-7. REMOVAL OF OUTBOARD FUEL TANK.
a. Using the same
access hole described in Paragraph
9-5 and with fuel completely
drained from the tank, loosen clamps at hose connections on fuel line and fuel vent line.
Slide hose connections away from fuel tank.
b. Gain access
to outboard fuel
vent elbow by
removing wing tip.
Disconnect or cut
hose and remove elbow.
c. Remove screws from around
the perimeter of the tank. Carefully
pull tank away
from the wing far enough to gain access to remove sender wires.
d.
The tank is now
free to be removed.
NOTE
In the event the
interconnecting fuel line
and fuel vent line
are
being removed, it will be
necessary to first disconnect
the
ground wire attached to the rib at wing station 88.75.
9-8. INSTALLATION
OF OUTBOARD
FUEL TANK.
a. Position fuel tank in its recess
in the wing. Connect fuel sender
wires. Slide tank
completely
into position and secure with
screws around its perimeter.
b. Using access
hole located on underside of
wing, slide hose on interconnecting
fuel
vent line into position
and tighten clamps to torque specified
in Figure 9-2A.
c. Slide hose connection on interconnecting fuel line into position and tighten clamps.
d.
Connect fuel vent line
on outboard side of
tank.
e. Fill the fuel tank
and check for leaks and unrestricted
fuel flow, accurate sender
indications on fuel quantity gauge,
and that ground wire is securely
attached to
interconnecting
fuel line, fuel vent line and wing
rib at wing station 88.75.
9-9. INSPECTION OF FUEL SYSTEM.
Fill tanks with fuel. Inspect
tanks and fuel line
connections
for leaks. If
fuel tanks leak, follow
instructions given
in Paragraph 9-4.
If fuel
line connections
leak, tighten clamps or replace hose
connections after first draining tanks.
Revised: 11, 1/83 FUEL SYSTEM
2D 17
LANCE II SERVICE
MANUAL
