CLAMP TORQUE VALUES
#32
HL - 30
to 35 in.-lbs.
#12 HL - 15 to 20 in.-lbs.
#10 HL-
12 to 16 in.-lbs.
8888
1. FUEL CELL
2.
FUEL SENDER
UNIT
3. BOLT
4. LOCK
WASHER
5 WASHER
6 WASHER
7 NEOPRENE GASKET
8. CORK
GASKET
9. FUEL CELL
10.
NUT
RING
11. SPAR
12. FUEL VENT VALVE ASS'Y.
13. CLAMP (#10HL)
14. NIPPLE
15 FUEL VENT LINE
16
NUT
RING
17. FUEL
CELL
18. GASKET
19 FUEL CAP ADAPTER ASSY
20.
GASKET
21. FUEL VENT INTERCONNECT
LINE
22.
FUEL
TANK
INTERCONNECT LINE
23. CLAMP (#32HL)
24 CLAMP
(#12HL)
25
SCREWS (4).
NUT PLATE
ATTACHMENT

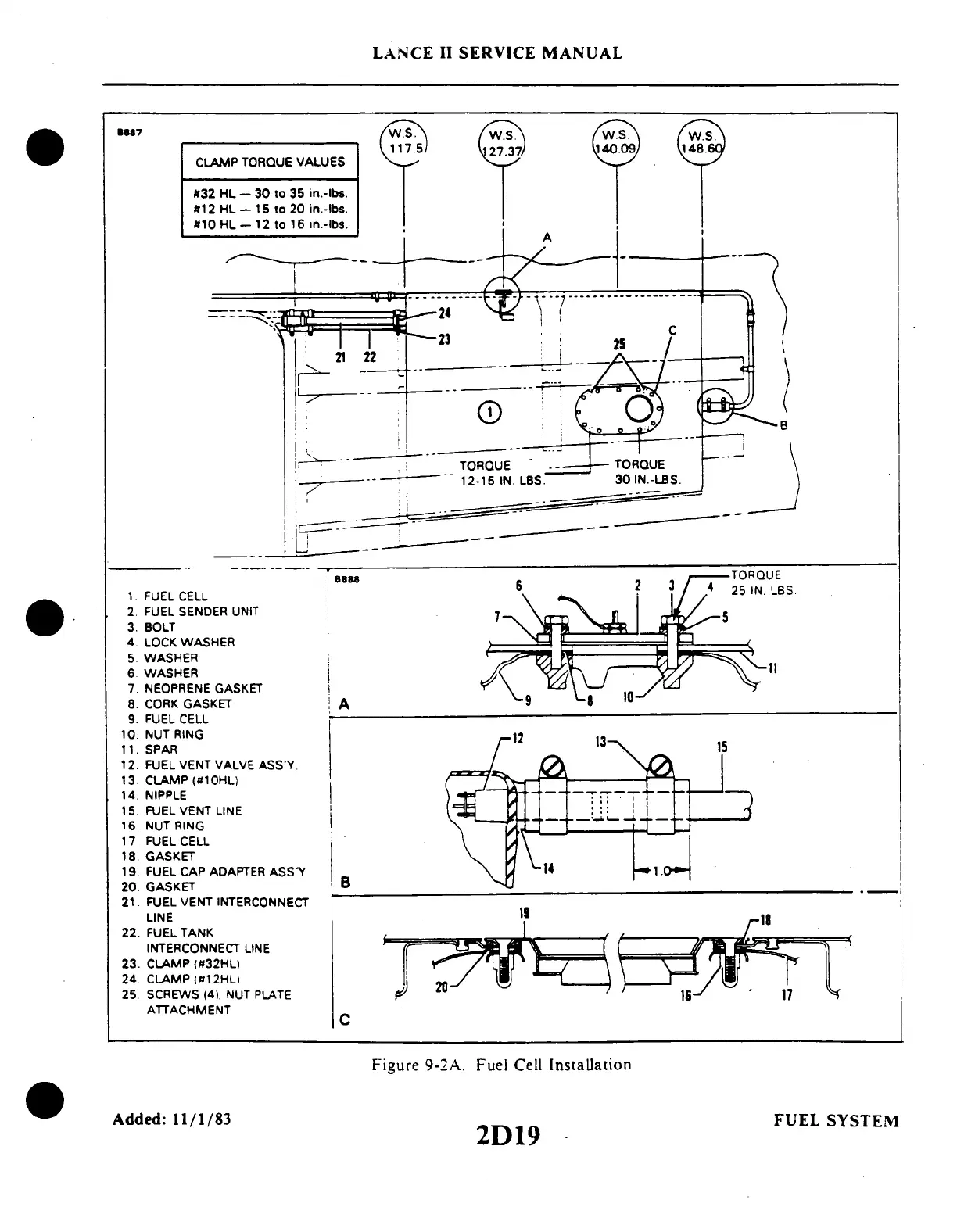

Figure 9-2A. Fuel Cell Installation
LANCE II SERVICE MANUAL
B
