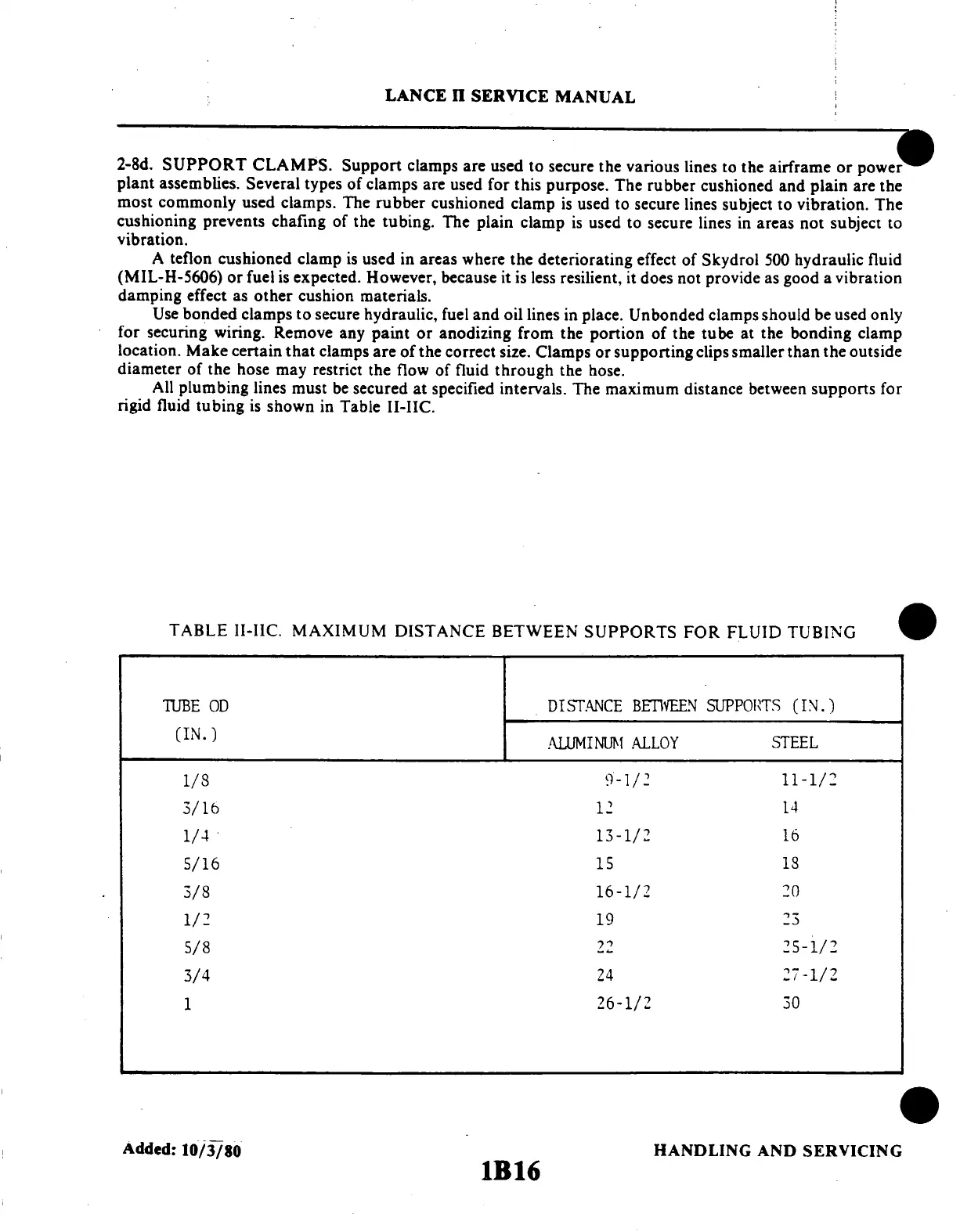

LANCE
II SERVICE
MANUAL
2-8d.
SUPPORT
CLAMPS.
Support
clamps
are
used
to secure
the various
lines
to the
airframe
or
power
plant
assemblies.
Several
types of
clamps
are used
for this
purpose.
The
rubber
cushioned
and
plain
are the
most
commonly
used
clamps.
The rubber
cushioned
clamp
is used
to secure
lines subject
to
vibration.
The
cushioning
prevents chafing
of the
tubing.
The plain
clamp is used
to secure
lines in areas
not subject
to
vibration.
A teflon
cushioned
clamp
is used in
areas where
the deteriorating
effect
of Skydrol
500 hydraulic
fluid
(MIL-H-5606)
or fuel
is expected.
However,
because it
is less resilient,
it does
not provide
as good a
vibration
damping
effect
as other
cushion
materials.
Use
bonded clamps
to secure hydraulic,
fuel and
oil lines in
place. Unbonded
clamps should
be used only
for securing
wiring.
Remove any
paint or
anodizing
from the portion
of the
tube at the
bonding
clamp
location.
Make certain
that clamps
are of the correct
size. Clamps
or supporting
clips smaller than
the outside
diameter
of the
hose may
restrict the
flow of
fluid through
the
hose.
All
plumbing
lines must
be secured
at specified
intervals.
The maximum
distance
between
supports
for
rigid fluid
tubing
is shown
in Table
II-IIC.
TABLE
II-IIC.
MAXIMUM
DISTANCE
BETWEEN
SUPPORTS
FOR FLUID
TUBING
TUBE OD
(IN.)
DISTANCE
BETWEEN
SUPPORTS
(IN.)
.ALUMINUM ALLOY
1/8
3/16
1/4
5/16
3/8
1/2
5/8
3/4
1
9-1/2
12
13-1/2
15
16-1/2
19
STEEL
11-1/2
14
16
18
20
22
22
24
26-1/2
25-1/2
27-1/2
30
Added:
10/3/80
HANDLING
AND SERVICING
1B16
