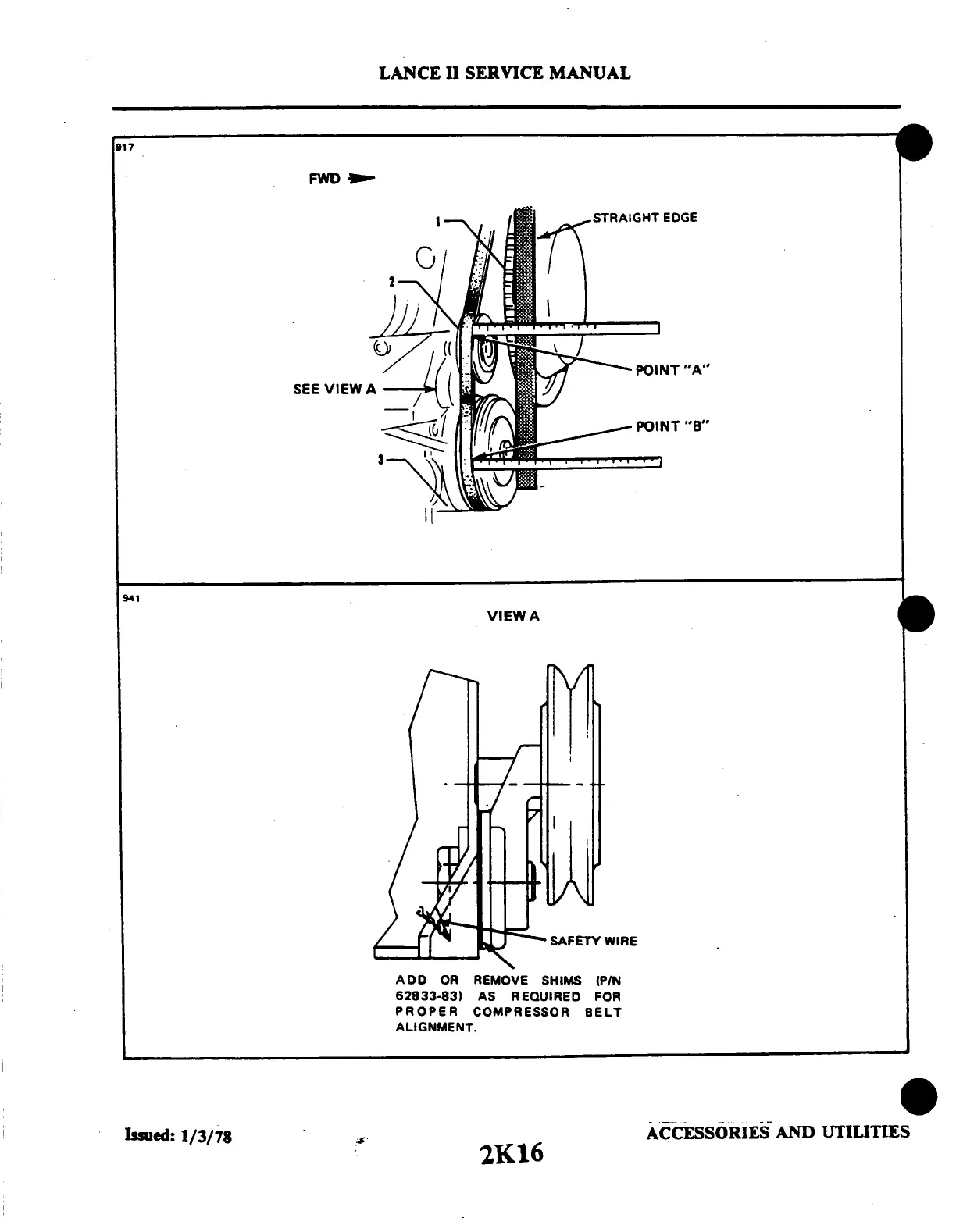

LANCE II SERVICE MANUAL
917
FWD
STRAIGHT
EDGE
SEE VIEW A
POINT
"A"
POINT "B"
941
VIEW A
ADD
OR REMOVE
SHIMS (P/N
62833-83)
AS
REQUIRED
FOR
PROPER COMPRESSOR BELT
ALIGNMENT.
Issued:
1/3/78
ACCESSORIES
AND
UTILITIES
2K16
