LANCE
II
SERVICE
MANUAL
1788
SEAL
ALL
AROUND
FORWARD
AND
AFT
COVERS
WITH
PERMAGUM
BEAD
NO.
576
PURCHASED
FROM
PRESTOLITE
ENGINEERING
COMPANY.
1.
ACTUATING
TRANSMISSION
ASSY.
2.
BELLCRANK
ASSY.
(CONDENSER)
3.
PUSH
ROD
ASSY.
4.
BELLCRANK
ASSY.
(MECHANISM)
5.
OPEN
LIMIT
SWITCH
6.
CLOSED
LIMIT
SWITCH
7.
CONDENSER
8.
CONDENSER
DOOR
9.
PUSH
ROD
10.
TRANSMISSION
MOTOR
ASSY.
UP
LIMIT SWITCH
.12PRELOAD
.22
NOM.
CLEARANCE
PRIOR
TO
PRELOAD
VIEW A

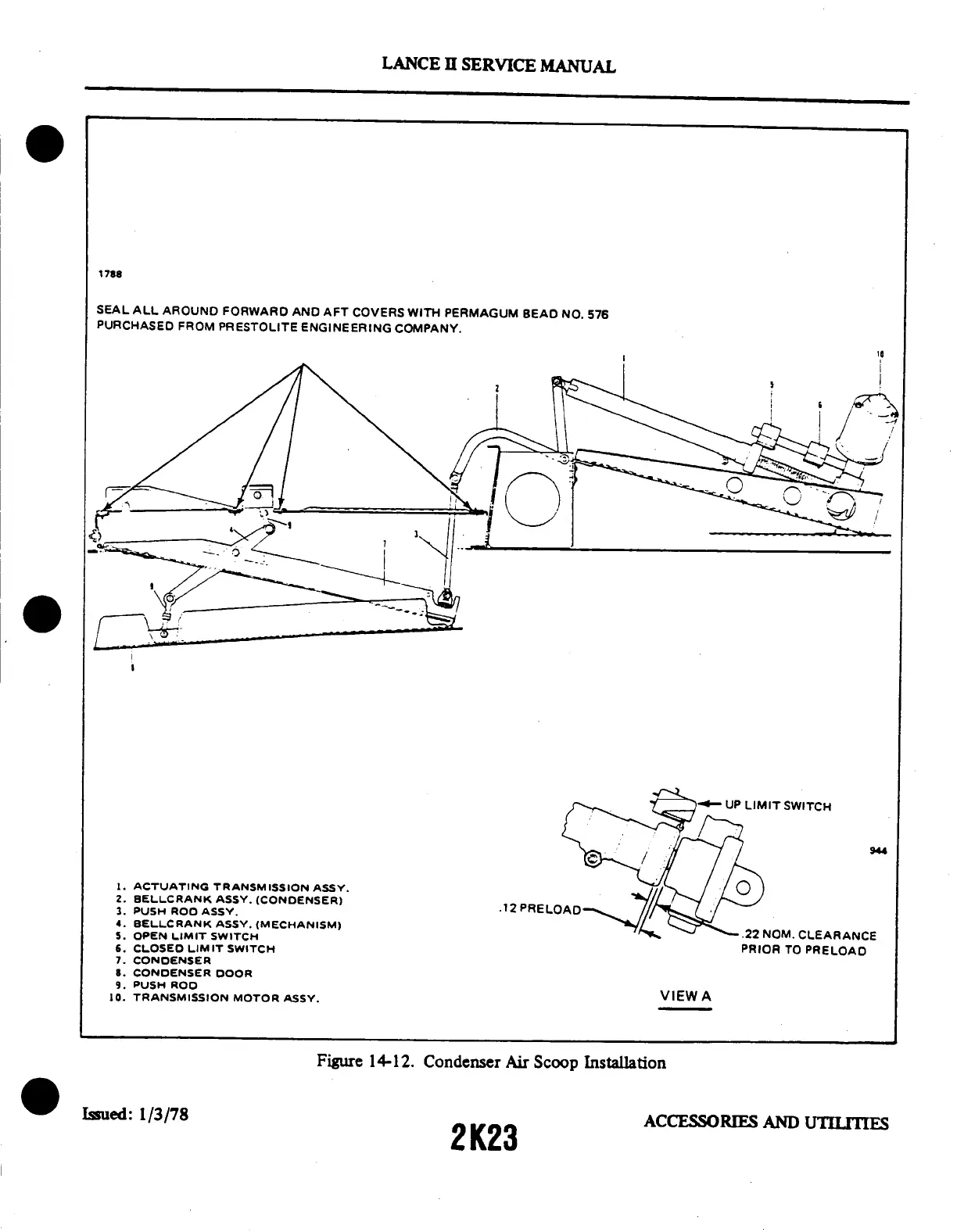

Figure
14-12.
Condenser
Air
Scoop
Installation
Issued:
1/3/78
2K23
ACCESSORIES
AND
UTILITIES
