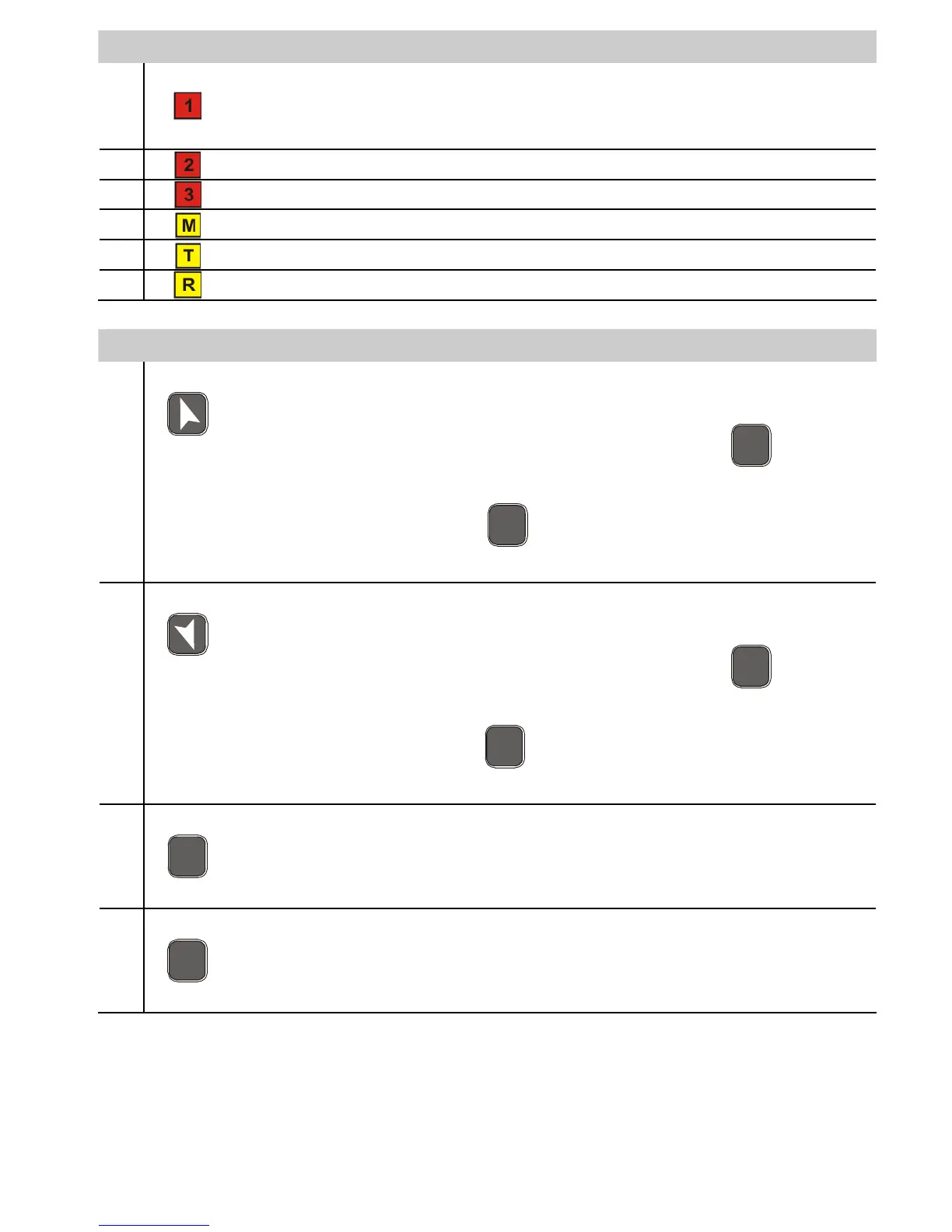

6.2 Meaning of Status Lights (Led)
3
ON when the output command is on. For motorised valve
command, led in on when valve is opening and blink
when closing.
4
ON when alarm 1 is on.
5
ON when alarm 2 is on.
6
ON when the “Manual” function is on.
7
ON when the controller is running an “Autotune” cycle.
8
ON when the controller communicates via serial port.
6.3 Keys
9
• Allows to increase the main setpoint.
• During the configuration phase, allows to slide
through parameters. Together with the
S
E
T
key it
modifies them.
• Pressed after the
S
E
T
key it allows to increase the
alarm setpoint.
10
• Allows to decrease the main setpoint.
• During the configuration phase, allows to slide
through parameters. Together with the
S
E
T
key it
modifies them.
• Pressed after the
S
E
T
key it allows to decrease the
alarm setpoint.
11
