Pixsys ATR142 - 6 Display and Key Functions; Numeric Indicators (Display)

9

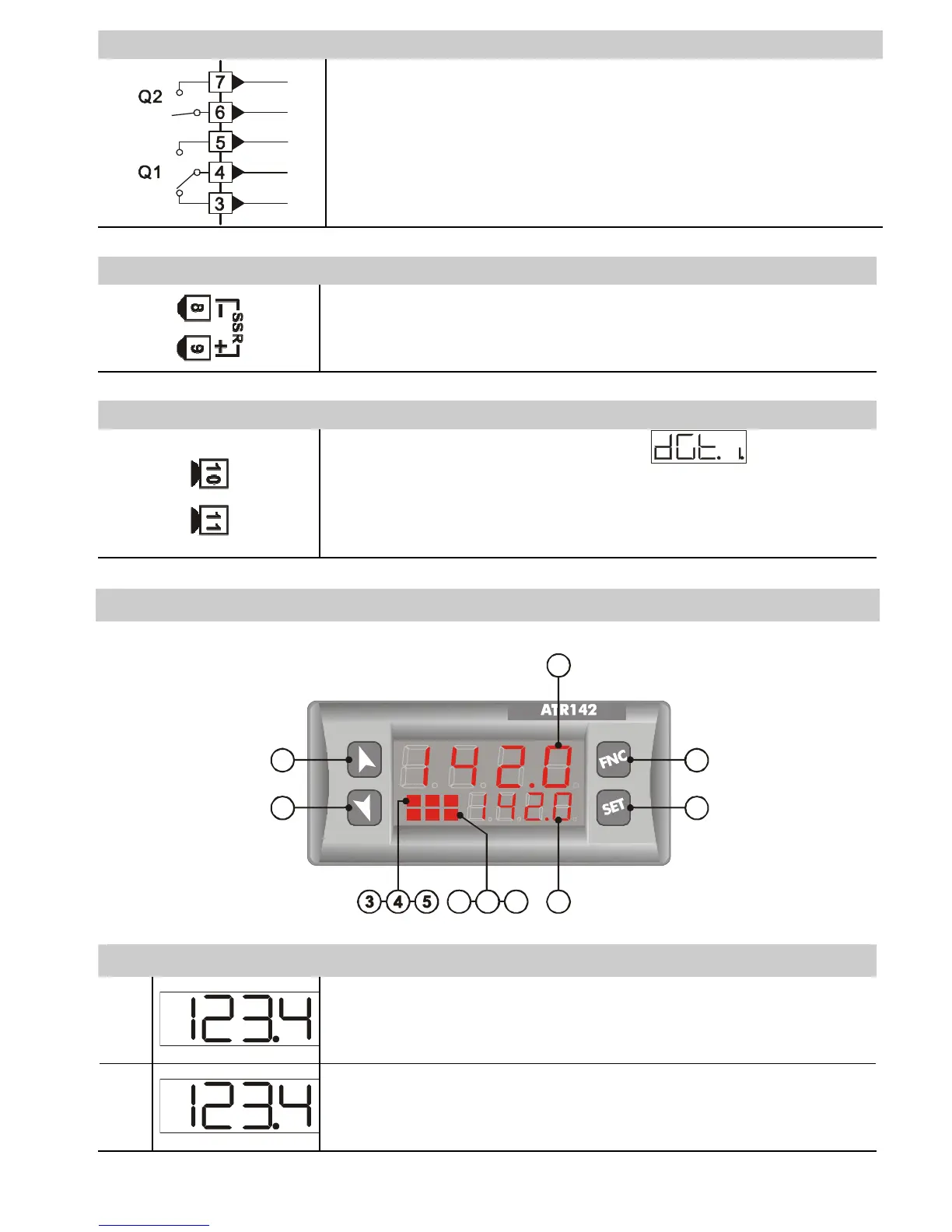

Relay Q1 Output
Capacity:
Q1 - 8A/250V~ for resistive loads
Q2 - 5A/250V~ for resistive loads
SSR output
SSR command output 12V/30mA
Digital Input on ATR243-20ABC
Digital input using parameter .
The use of digital input in this version is possible
only with TC sensors, 0…10V, 0/4…20mA and
0…40mV
6 Display and Key Functions
1 2 3
M T R
87
6
2
1
9
10
12
11
6.1 Numeric Indicators (Display)
1
Normally displays the process. During the
configuration phase, it displays the parameter
being inserted.
2
Normally displays the setpoint. During the
configuration phase, it displays the parameter
value being inserted.
