Installing IR Extender
EP Series Ultra HD LCD Displays User Guide 17
Installing IR Extender

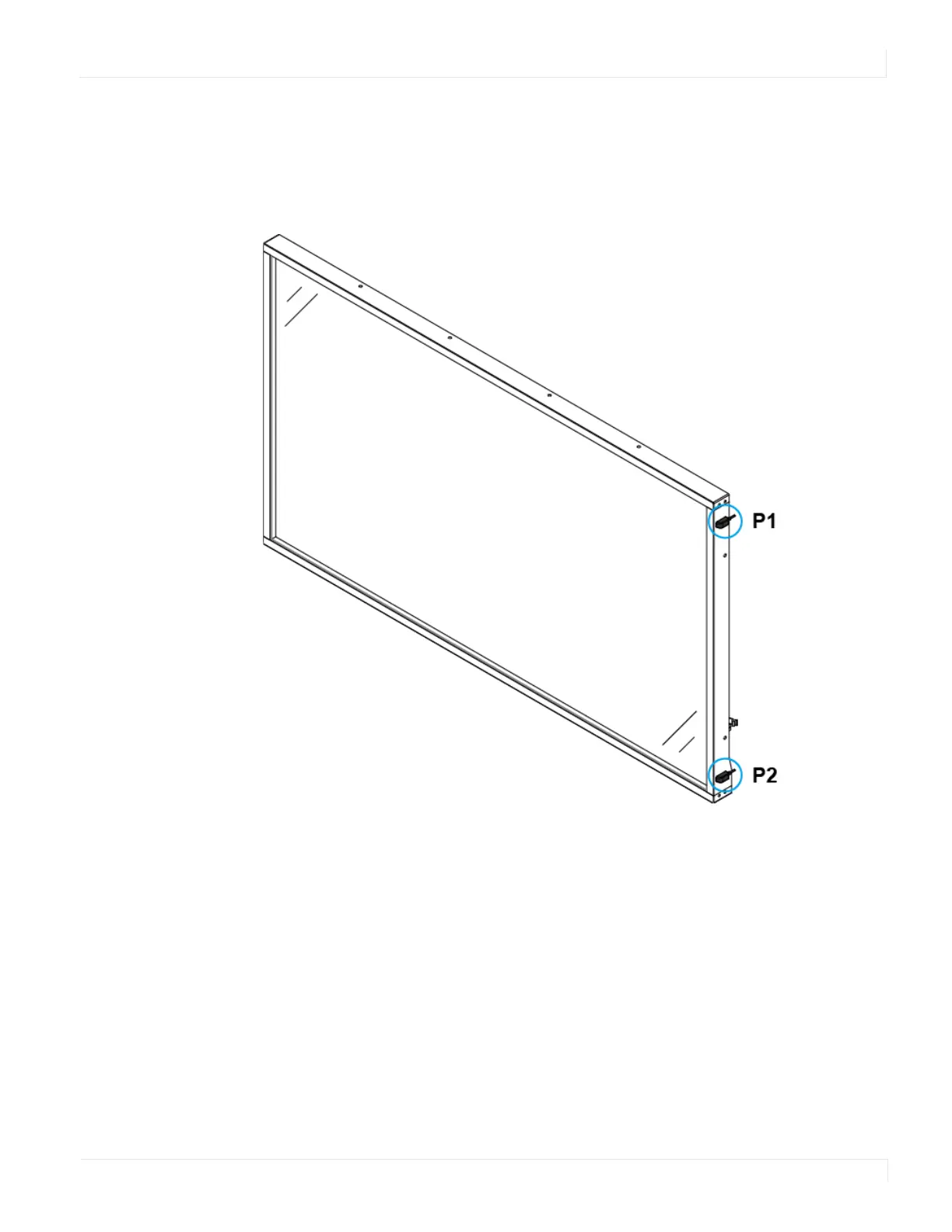

The position of the IR extender will affect the reception of the IR signal. To ensure the
best IR reception, P1 and P2, the two positions marked in the figure below, are
recommended for installing the IR extender.
