6
minal program may be a good choice. It can be accessed from the Start menu. Click START, then
Programs, Accessories and then Hyper Terminal.
MS-DOS based terminal program such as PC-PLUS, PROCOMM, can also make the connection with
the device built-in software. The COM port should be configured as:
♦ Baud : 38400
♦ Parity : None
♦ Data bits : 8
♦ Stop bits : 1
♦ Flow Control: none
Once the terminal has connected to the device, power on the device. The terminal will display that it is

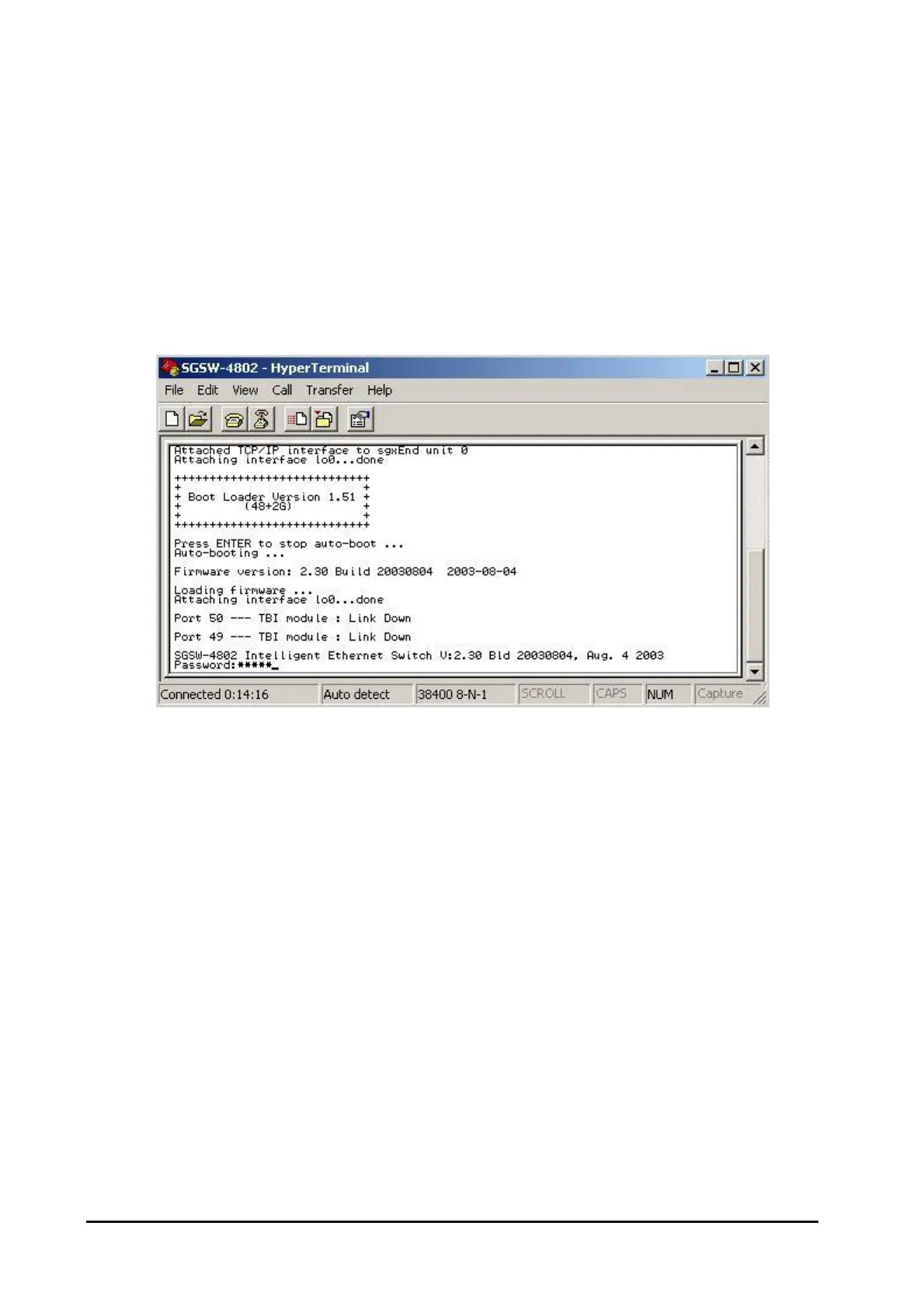

loading the firmware. Then, the screen as below will show up:
Press “Enter” and input the password. The default password is “admin”.
2.5 IP Configuration
Once log on to the console, the “Command>” prompt will be shown. You can type, “help” for all
available commands.
