12
3.5 Trunk config
The SGSW-4802 provides 2 trunk groups and maximum up to 4-ports per trunk. Port Trunking is the
ability to group together several switch ports to increase the bandwidth between the management
switch and other switch. This is an inexpensive method to increase throughput between switches (or to
servers). We define the Port Trunking as the ability to group a set of ports into a single logical link. The
port trunk acts as single link between switches. It doesn’t create a loop even though it is physically
connected as such.

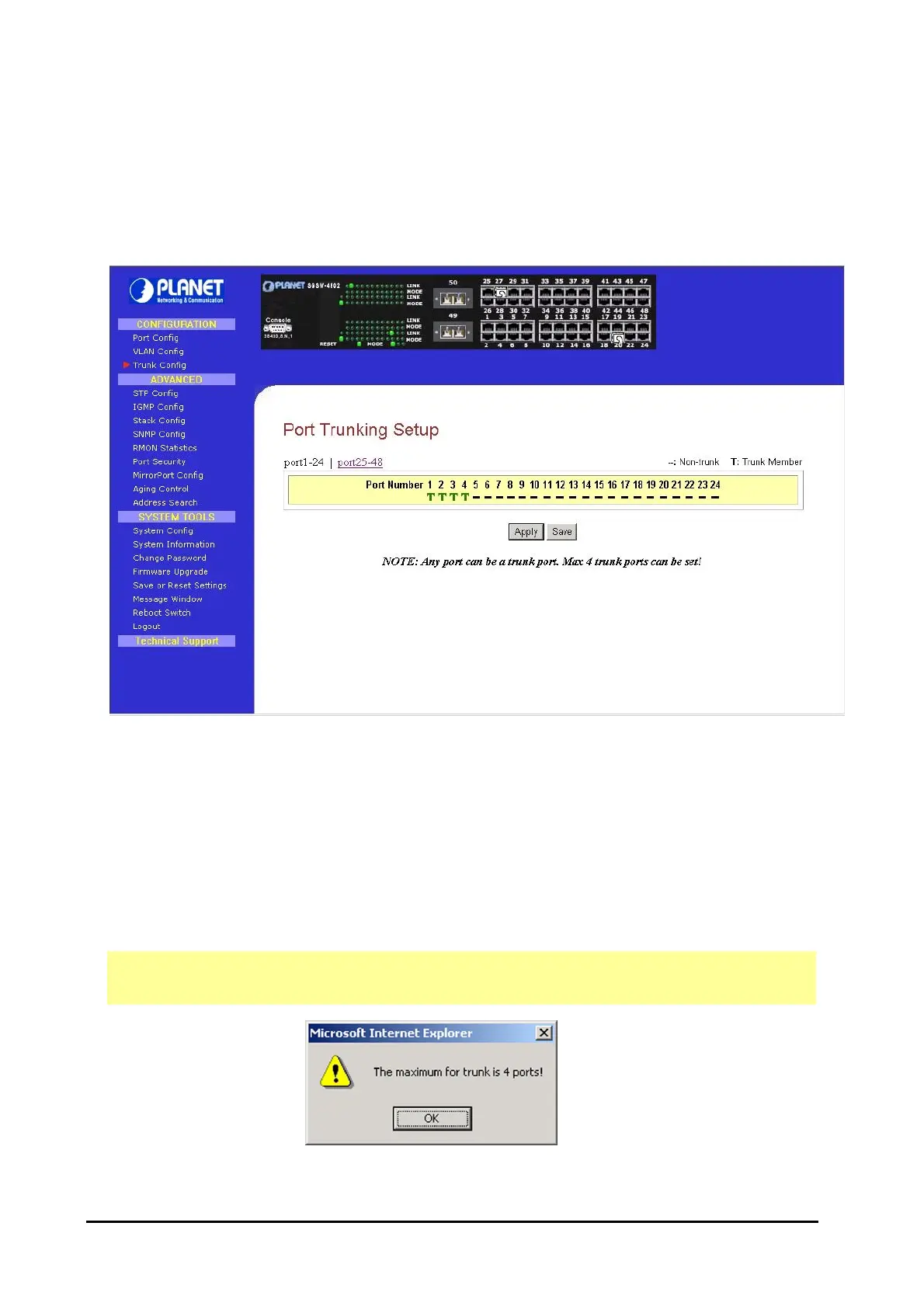

Figure 3-5: The Port Trunk config Web Page
Port Trunking Setup Procedures
Step 1: Decide to create a trunk group from port 1-24 or port 25-48.
Step 2: You can choose up to 4-port for Trunking by selecting ‘-‘ as “T”.
Step 3: Click on “Apply” button to make the configuration effective.
Step 4: Click “Save” button to save the current configuration.
!
NOTE
If you select more than 4 ports for trunking, the following error message will appear:
Click “OK” button and select the ports again.
