39
3.23 Reboot Switch
This function allows user to rebooting the management switch is required after changes are made in
the configuration or setting. The screen in Figure 3-27 appears.

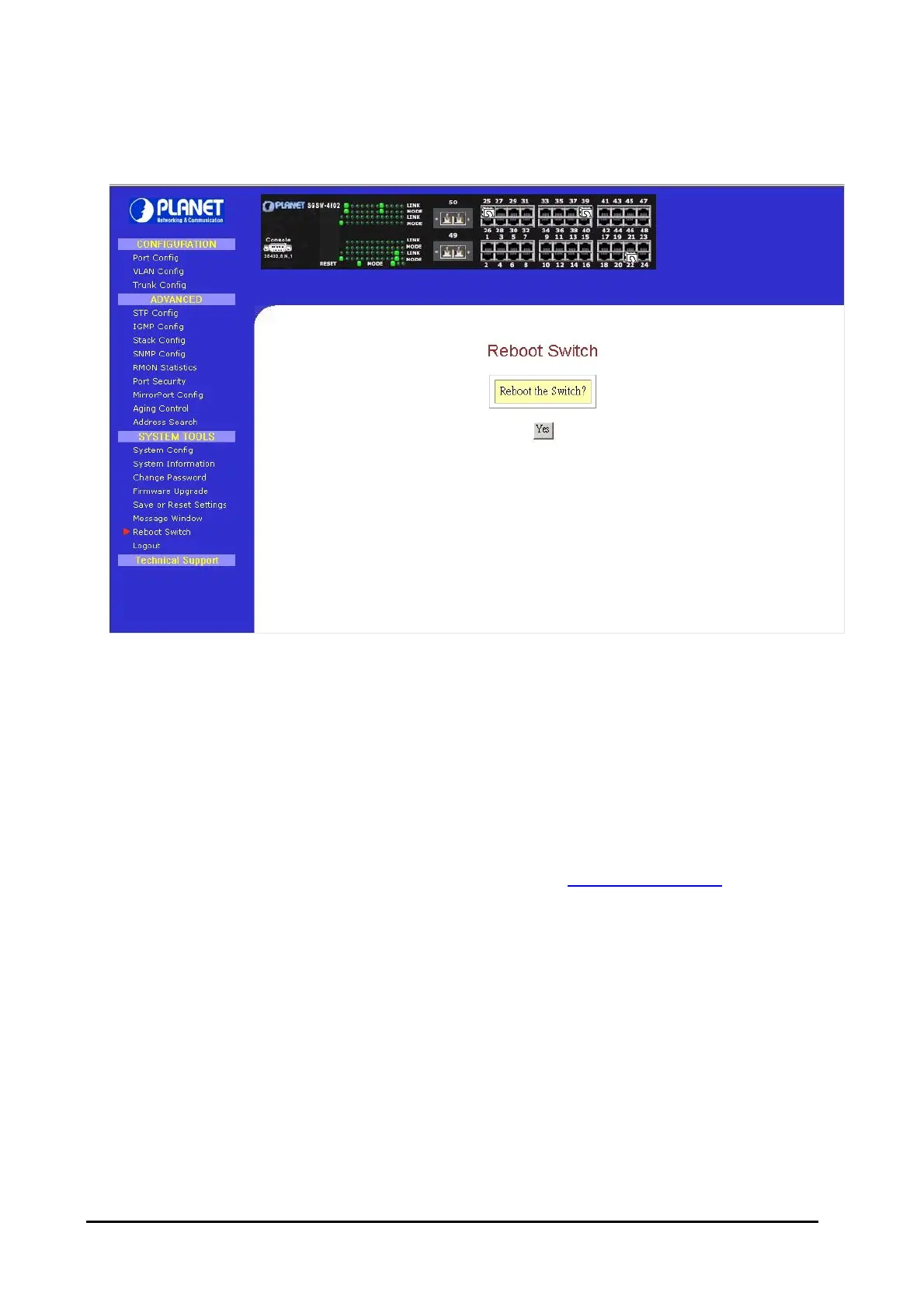

Figure 3-27: The Reboot Switch page
Click “Yes” to reboot the switch. The system will prompt you to logon again after about 60 seconds to
see the effect.
3.24 Logout
With the web browser, logging out is as easy as ABC. By clicking “Logout” button, you will get a logout
GUI as shown below. If you need to access to the Web Page again, you just need to click “Logon”
button. This is true only if you have not changed the default factory settings for the IP address
of your switch.
Alternatively, you can log in again into the web-based browser via http://192.168.100.128 or the new IP
address, which you have assigned to the switch. The Logout screen in Figure 3-28 appears.
