Planet vc-231 User Manual

14

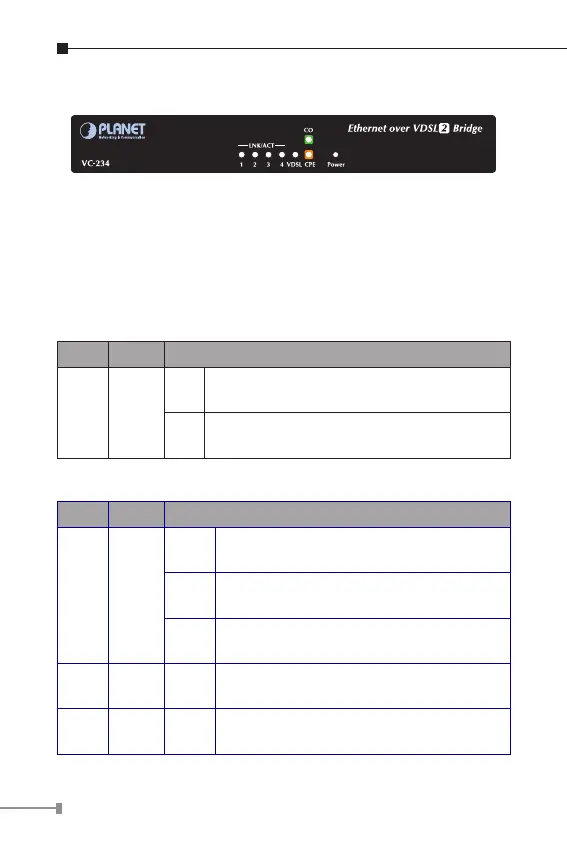

n VC-234 Front Panel
Figure 2-2: VC-234 front panel
2.1.1 LED Indicators for VC-231
The rich diagnostic LEDs on the front panel can provide the
operating status of individual port and whole system.
n System
LED Color Function
PWR Green
Lit
Lights to indicate that the VDSL
Converter has power.
Off
Indicate that the VDSL Converter has no
power.
n VDSL
LED Color Function
VDSL Green
Lit
Indicate that the VDSL link is
established.
Fast
Blink
Indicate that the VDSL link is at training
status (about 10 seconds).
Slow
Blink
Indicate that the VDSL link is at idle
status.
CO Green Lit
Indicate the VDSL Converter is running
at CO mode.
CPE Green Lit
Indicate the VDSL Converter is running
at CPE mode.

Planet vc-231 Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1400 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Input current	2 A
Input voltage	5 V
Power consumption (typical)	6.6 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	97 mm
Height	26 mm
Weight	199 g
