Planet vc-231 User Manual

17
2.2 The Rear Panel

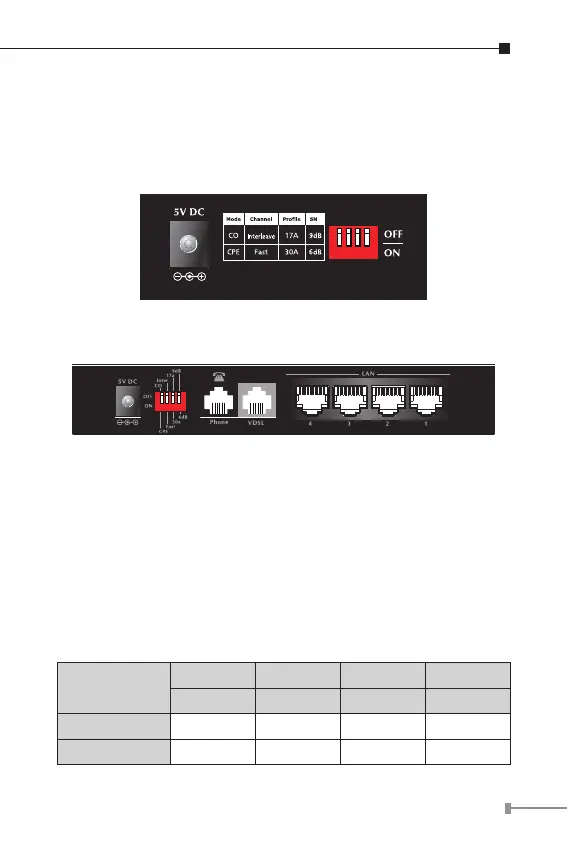

The rear panel of the Ethernet over VDSL2 Converter is shown
as below.
n VC-231 Rear Panel
1 2 3 4
Figure 2-3: VC-231 rear panel
n VC-234 Rear Panel
1 2 3 4
Figure 2-4: VC-234 rear panel
2.2.1 Mode DIP Switch
The Ethernet over VDSL2 Converter provides 4 selective
transmission modes. By switching the transmission modes,
you can obtain a best transmission mode to suit with phone
line quality or distance of connectivity. The following is the
summary table of transmission setting, bandwidth and distance
extensibility tested for AWG 24 (0.5mm) twisted-pair without
noise and cross talk.
DIP-1 DIP-2 DIP-3 DIP-4
Mode Channel Prole SNR
OFF CO Interleave 17A 9dB
ON (default) CPE Fast 30A 6dB

Planet vc-231 Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1400 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Input current	2 A
Input voltage	5 V
Power consumption (typical)	6.6 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	97 mm
Height	26 mm
Weight	199 g
