2. Hardware Description
The VC-231 provides 1 RJ-11 port for VDSL2 connection, for
both VDSL2 connection and voice connection service operate at
the same time. The Additional splitter from package of VC-231
can help VC-231 work in this way easily.
The VC-234 provides 2 RJ-11 ports for voice connection (like
telephone) and for network line connection.
The VC-231 provide 1 RJ-45 port and VC-234 provide 4 RJ-45
ports for two different running speed –10Mbps, 100Mbps, in the
same converter / bridge and automatically distinguish the speed
of incoming connection.
This section describes the hardware features of the Ethernet
over VDSL2 Converter / Bridge. For easier control of the
converter / bridge, familiarize yourself with its display indicators,
and ports. Front panel illustrations in this chapter display the
unit LED indicators. Before connecting any network device to the
converter / bridge, read this chapter carefully.
2.1 Front Panel
The units’ front panel provides a simple interface monitoring the
Ethernet over VDSL2 Converter.
n VC-231 Front Panel

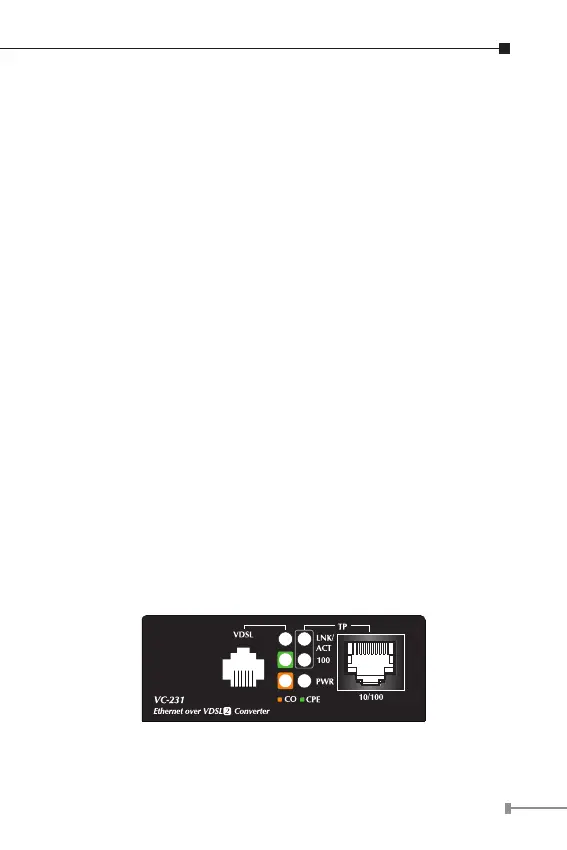

Figure 2-1: VC-231 front panel

Planet vc-231 Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1400 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Input current	2 A
Input voltage	5 V
Power consumption (typical)	6.6 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	97 mm
Height	26 mm
Weight	199 g
