3.3 Chassis Installation and Rack Mounting (VC-231)
To install the Ethernet over VDSL2 Converter in a 10-inch or 19-
inch Converter Chassis with standard rack, follow the instructions
described below.
Step 1: Place your VC-231 on a hard at surface, with the
front panel positioned towards your front side.
Step 2: Carefully slide in the module until it is fully and rmly
tted into the slot of the converter chassis.

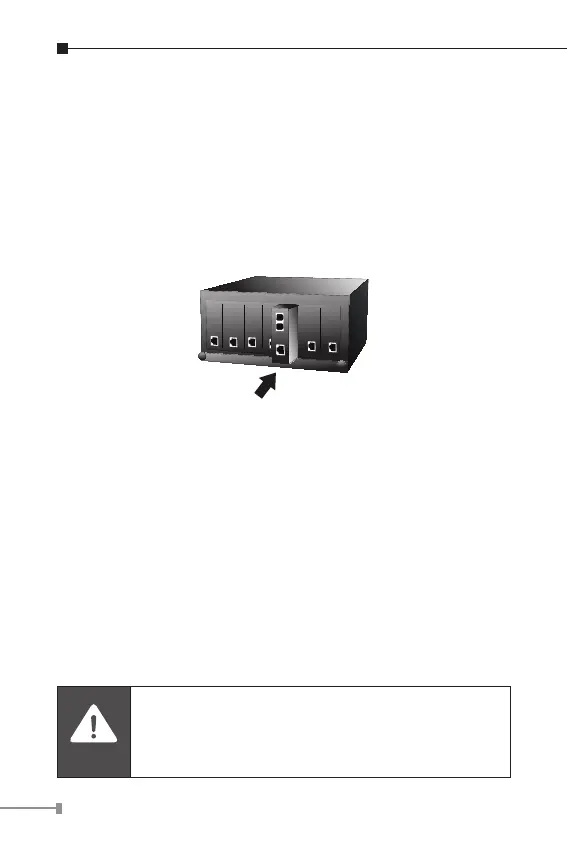

Figure 3-5: Insert a VDSL2 converter into an available slot
Step 3: Attach a rack-mount bracket to each side of the
Converter Chassis with supplied screws attached to
the package.
Step 4: After the brackets are attached to the Converter
Chassis, use suitable screws to securely attach the
brackets to the rack.
Step 5: Connect one end of the power cable to the 10-inch or
19-inch Converter Chassis.
Step 6: Connect the power plug of the power cable to a
standard wall outlet then power on the 10-inch or 19-
inch Converter Chassis, the PWR LED should light on.
Caution
You must use the screws supplied with the
mounting brackets. Damage caused to the parts
by using incorrect screws would invalidate your
warranty.

Planet vc-231 Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1400 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Input current	2 A
Input voltage	5 V
Power consumption (typical)	6.6 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	97 mm
Height	26 mm
Weight	199 g
