Planet vc-231 User Manual

23
3.2 Connecting VC-231 / VC-234
3.2.1 Connecting Standalone PC
Refer to the following procedures to setup the VC-231 to a
standalone PC.
1. Set the VC-231 to be CO mode or CPE mode from the DIP
switch at the rear panel.
2. Power on the VC-231 by connecting its power source.
3. Power LED will illuminate.
4. Use one RJ-11 wire and make a connection between VC-231
and “Line” port of splitter from VC-231 package.
5. Connect VDSL line from another VDSL device to DSL port of
the splitter that connects to VC-231 VDSL port.
6. LNK LED will from blinking to illuminate.
7. Connect telephone to the PHONE port of the splitter that
connects to VC-231 VDSL port.
8. Connect VC-231 Ethernet port to PC Network Interface Card
(NIC) via regular Cat. 5 cables.

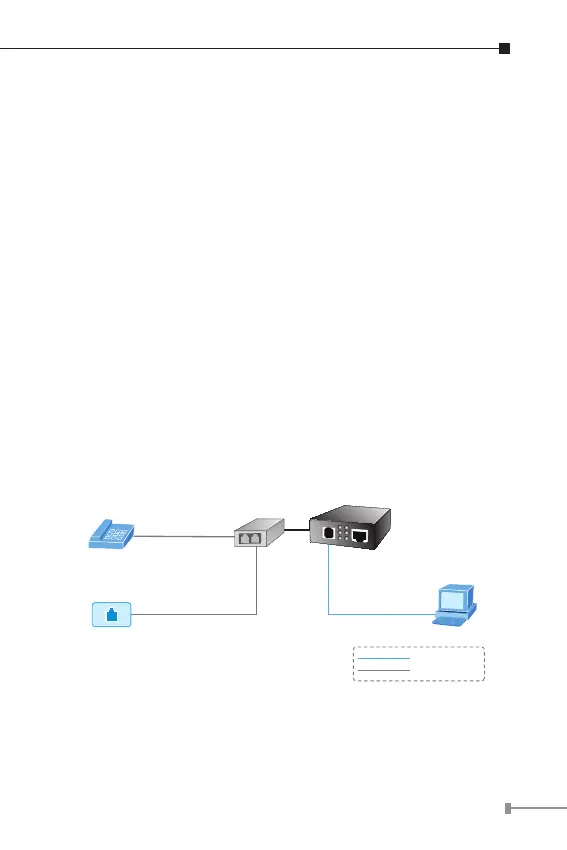

Telephone wire
100Base-TX UTP
VC-231
Phone
RJ-11 Phone Jack PC
Splitter
RJ-11 Line Cord
RJ-11 Line Cord
Phone
RJ-45 Cat.5
Twisted Pair Cable
VDSL
TP
Figure 3-3: Connecting Standalone PC

Planet vc-231 Specifications

General

Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter input interface	100Base-TX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	-
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	- nm
Maximum transfer distance	1400 m
Internal	No
Certification	FCC Part 15 Class A, CE
Product color	Black
Input current	2 A
Input voltage	5 V
Power consumption (typical)	6.6 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	70 mm
Width	97 mm
Height	26 mm
Weight	199 g
