User Manual of WDAP-C3000AX, WDAP-3000AX, WDAP-W3000AX
- 34 -
3.3.1 Configuring the IP Address Manually (e.g. WDAP-C3000AX)
Summary:
 Set up the TCP/IP Protocol for your PC.
 Configure the network parameters. The IP address is 192.168.1.xxx (If the default IP
address of the WDAP-C3000AX is 192.168.1.253, and the DSL router is 192.168.1.254,
the "xxx" can be configured to any number from 1 to 252.) and subnet mask is
255.255.255.0.
1 Select Use the following IP address, and then configure the IP address of the PC.
2 For example, the default IP address of the WDAP-C3000AX is 192.168.1.253 and the
DSL router is 192.168.1.254, or you may choose from 192.168.1.1 to 192.168.1.252.

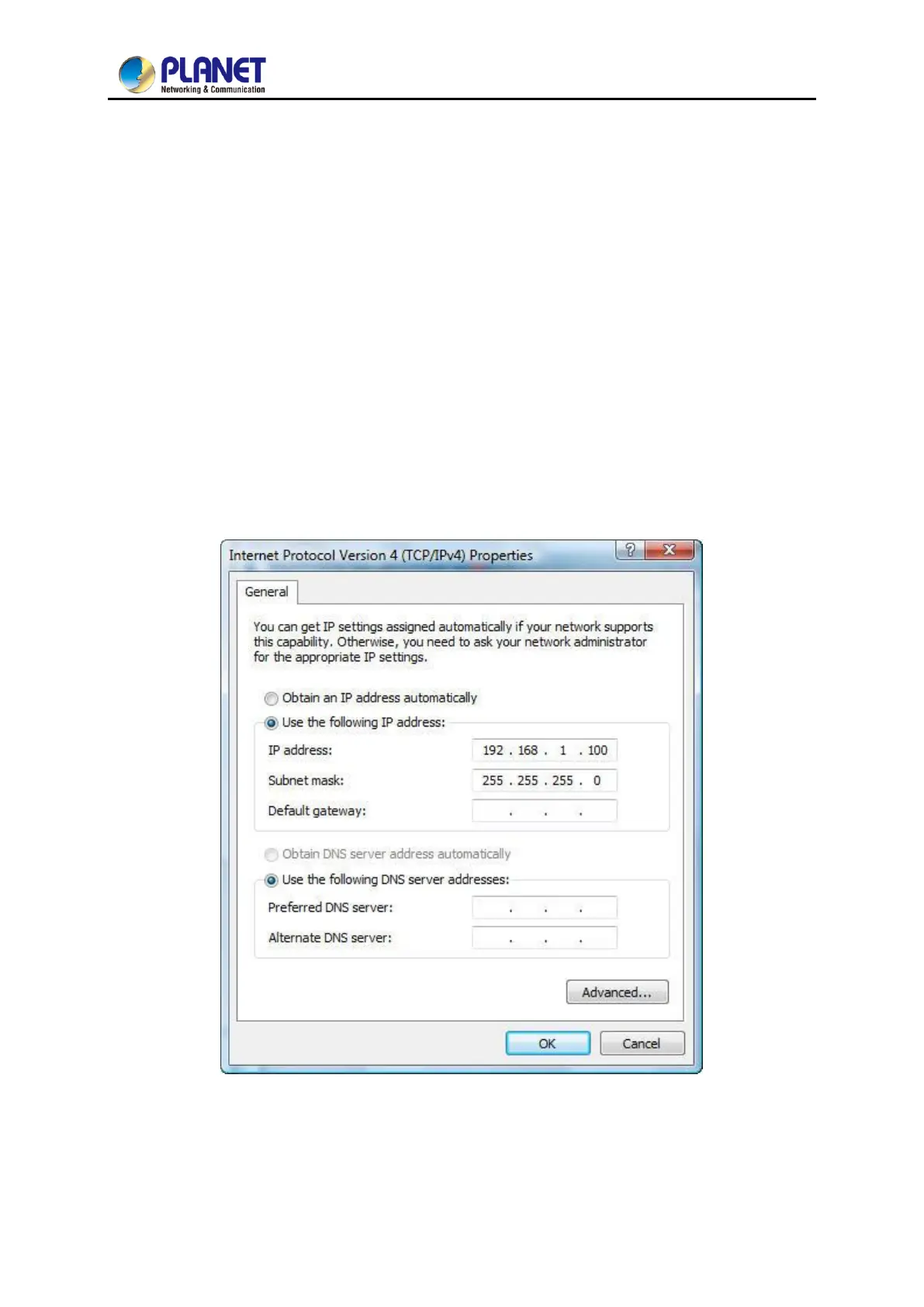

Figure 3-6 TCP/IP Setting
