Planmeca Chair - Using the Planmeca Chair; Switching the Planmeca Chair On and Off

7 USING CHAIR
User’s manual Planmeca Chair 7
7 USING CHAIR
The chair can be operated manually or automatically.
When the chair is used manually the foot control must be
pushed and held to drive the chair to the position required.
In automatic use the foot control only needs to be pushed
once and the chair will move automatically to the
preprogrammed chair position. Before the chair can be
used in the automatic mode, check the preprogrammed
automatic positions.
7.1 Switching chair on
The on/off switch is located on the base of the chair below
the legrest. When the chair is switched on it will give a
signal tone. The chair is now ready for use.
The same switch is used to switch the chair off.
4AT
Intermittent o
peratio
n, ED8%
25 sec "ON",
300 sec "OFF"
220-240V~ 50
/60Hz 800W
4AT
LBL-10026426
4AT
Intermittent
operation,
ED8%
25 sec "ON", 300 sec "OFF"
220-240V~ 50/60Hz 800W
4AT
LBL-10026426

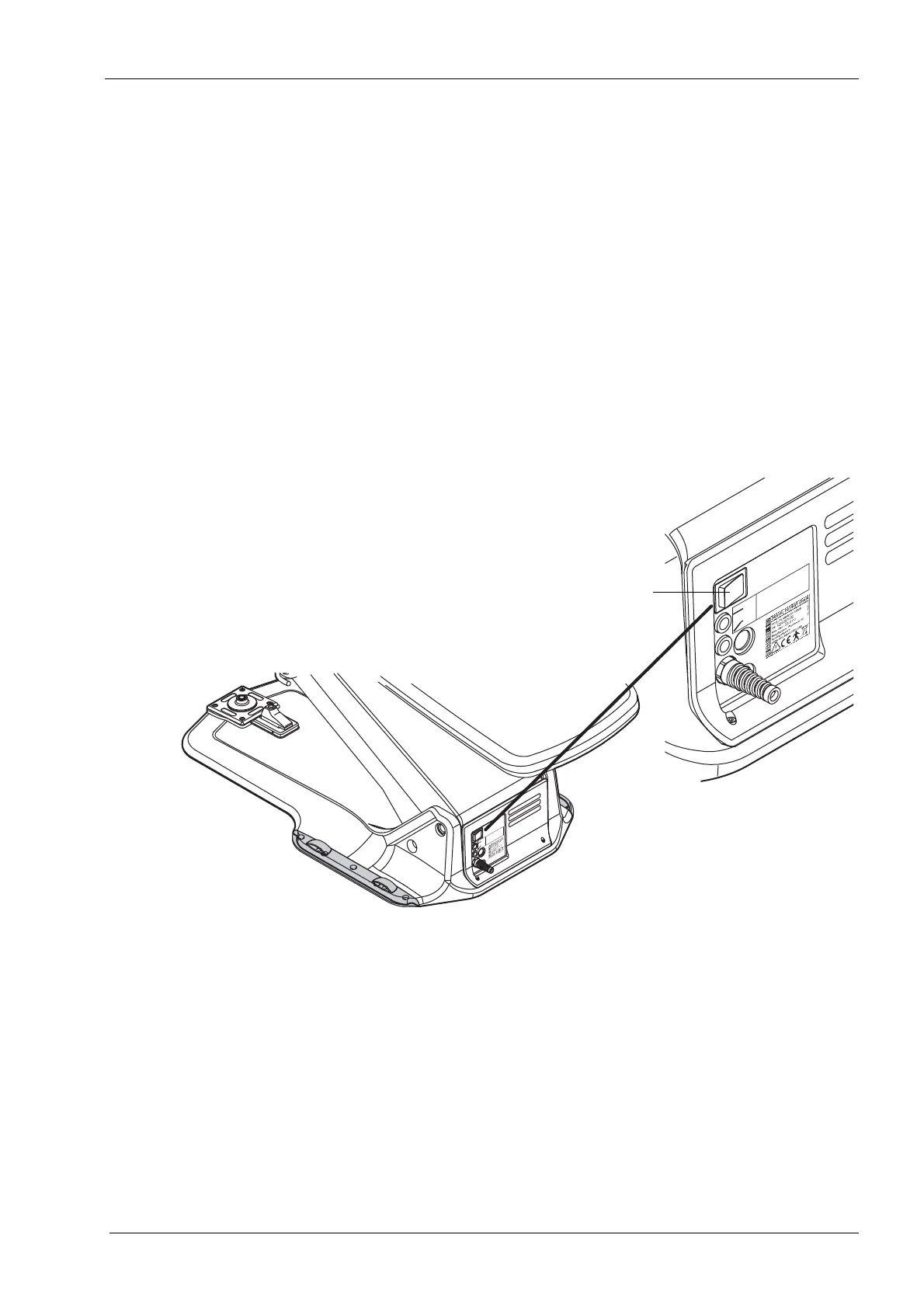

PM_chair_switch.eps
On/off switch
