Intra Invasive kV/mA Test
NOTE: Time must be set above 0.200 seconds to be able to get a reading.
kV

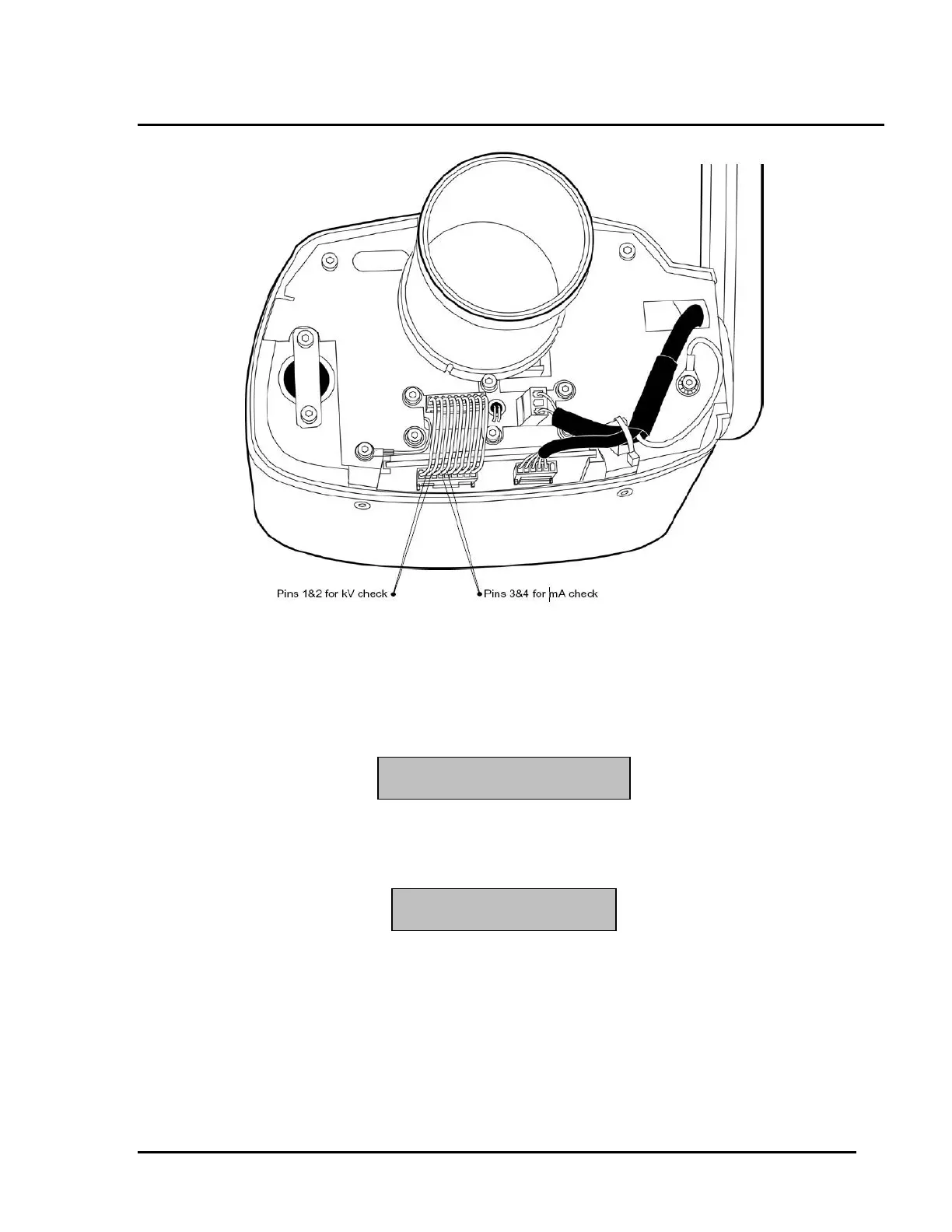

On the tubehead pcb P1 connector, measure DC volts between pins 1&2 during exposure.
The reading should be:
kV x 0.04614 = Volts +/- 10%
mA
On the tubehead pcb P1 connector, measure DC volts between pins 3&4 during exposure.
The reading should be:
mA x 0.4 = Volts +/- 10%

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
