Quick Reference Manual
6

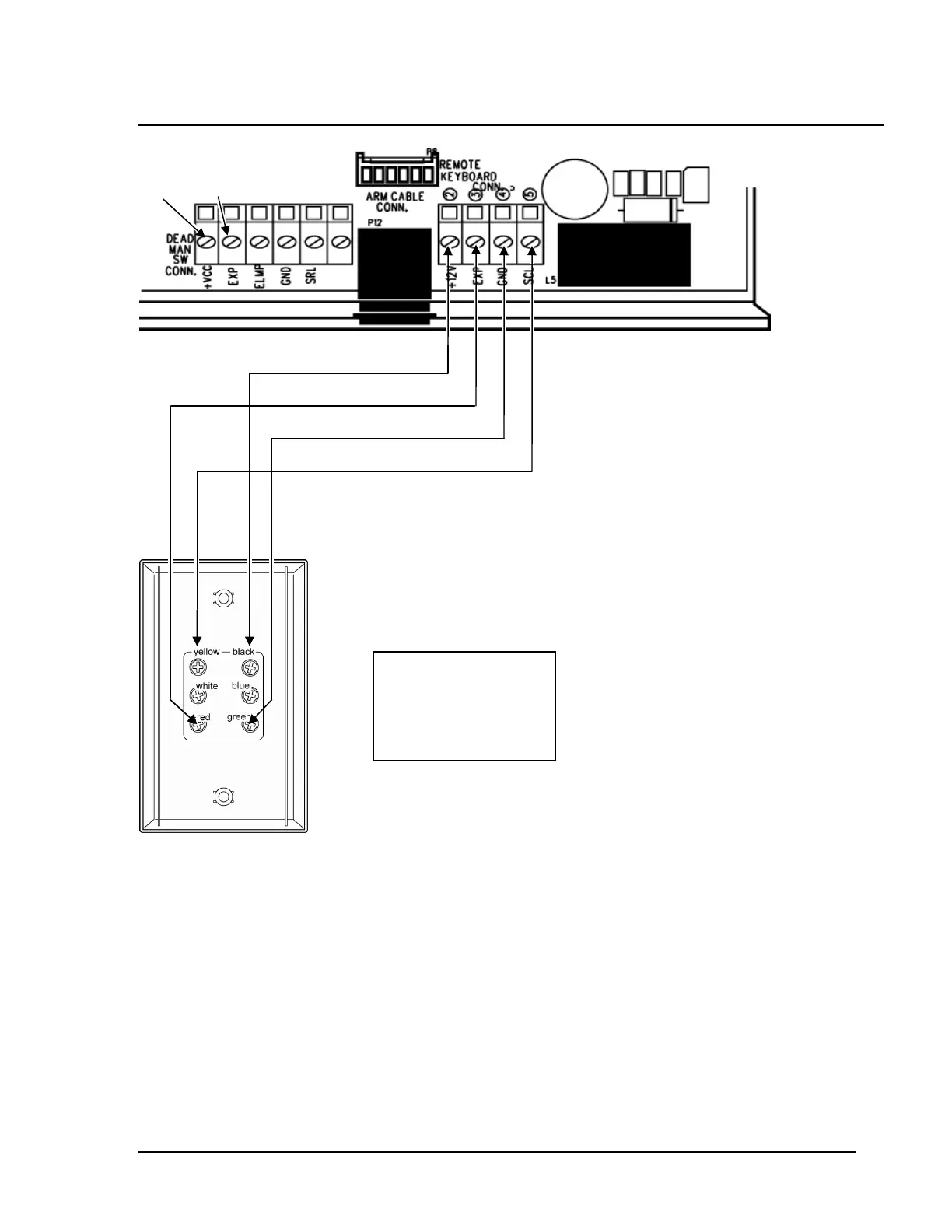

Intra Phone Jack Wire Diagram
Intra Generator Board
PCB
–
+12v .–
.
Bl ack
EXP
.
– Red
GND
.
–
.
Green
SCL
.
– .Yellow
Note: Blue and white
terminals are not used.
SCL
EXP
+12v
GND
Back side of the wall plate
+VCC and EXP are used for a
