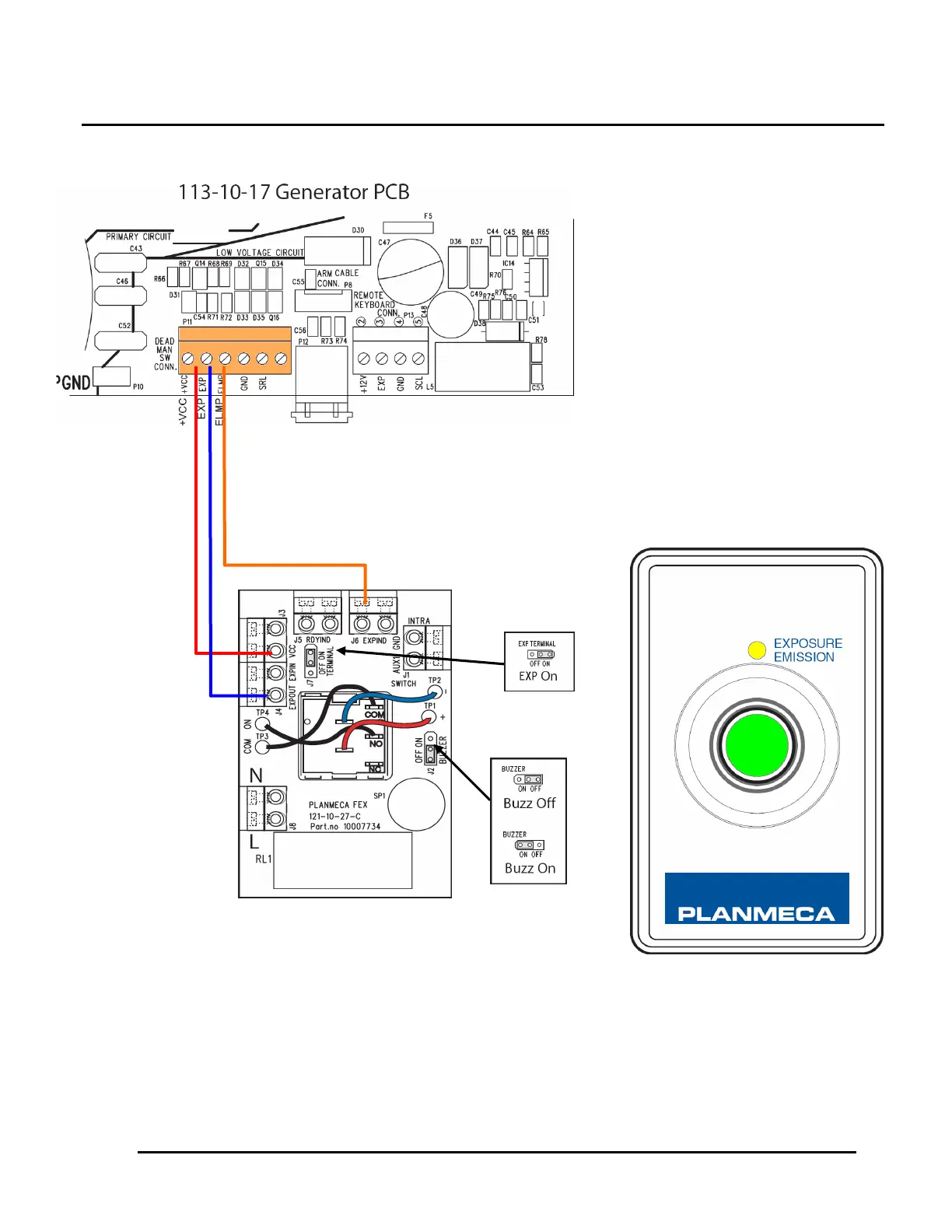

Planmeca intra - Wall Exposure Wire Diagram

Quick Reference Manual
7
Optional remote exposure switch
Set exp osu re
terminal to ON
Set buzz er t o OFF
(ON if desired)
VCC
–
VCC
EXP – EXPOUT
ELM P
–
EXPIND
EXPIND
VCC
EXPOUT
