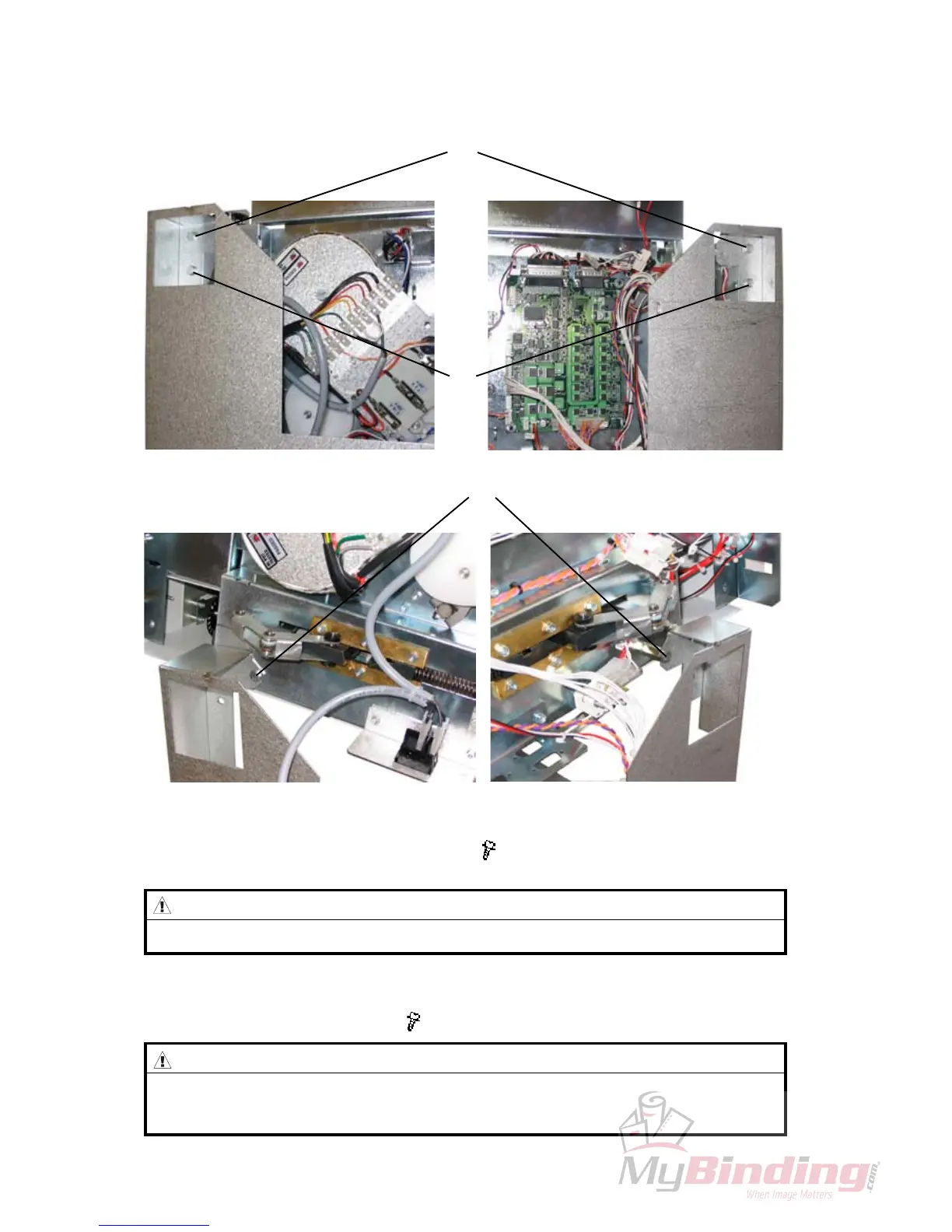

11. Remove screws [F]. One on each side ( x 2).
NOTE: Keep the screws. They will be used later in this procedure.
[F]
COVERS
Front view
Rear view
Front view,
machine tilted
Rear view,
machine tilted
CAUTION
When lowering or raising the machine, lift in infeed area only.
[G]
[E]
12. Tilt machine by lifting infeed cover.
13. Secure machine with both the screws [G]. One on each side. Use the screws
previously removed from [F]. (
x2).
WARNING
When tilting SQF 200, make sure to tighten BOTH screws [G],
one on each side.
