SQF-3-10

29 November 2006

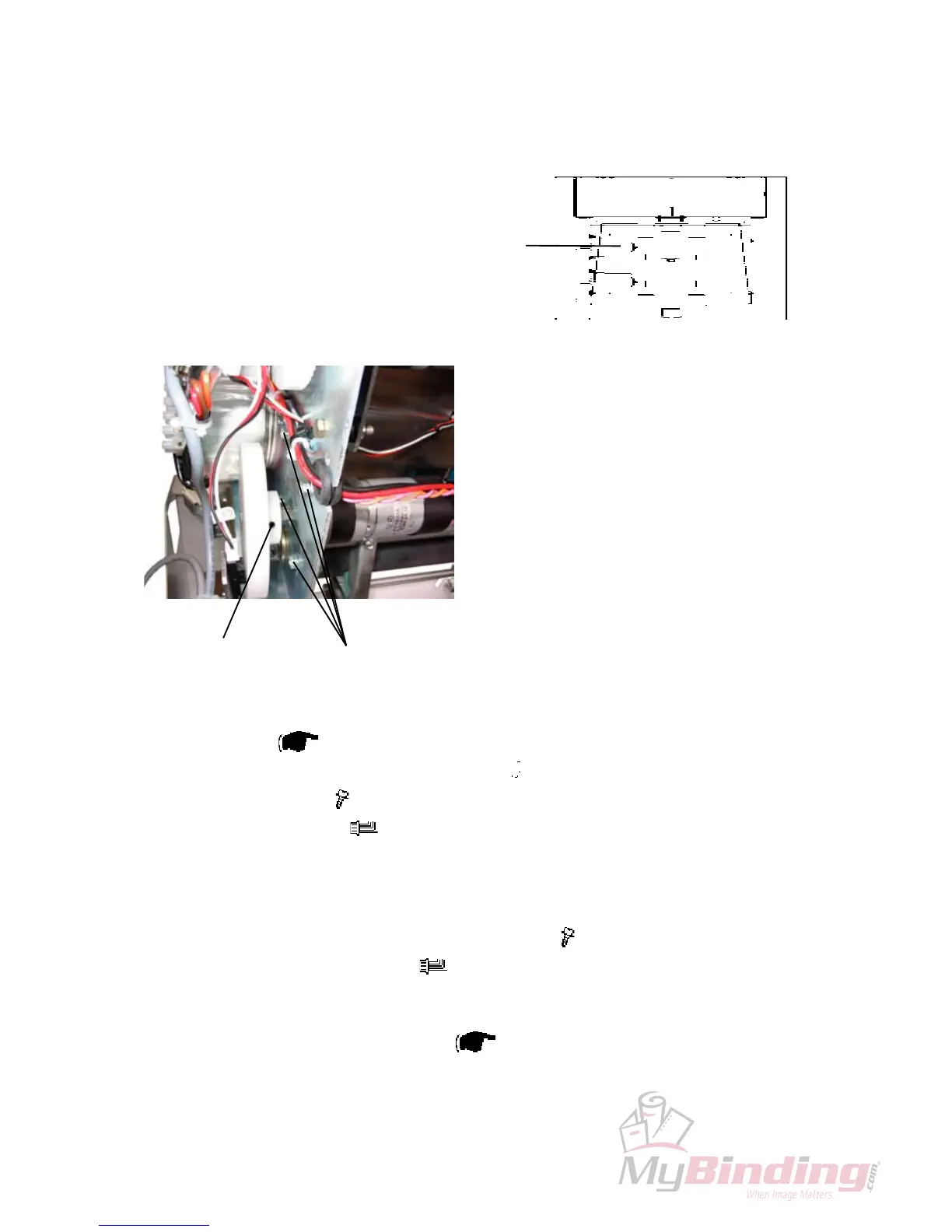

3.2.2 STOP GATE MOTOR (M2)

MOTORS

Removal

1. Tilt machine (

3.1.6).

3. Remove cam by loosening allen screw [A] (

x 1).

4. Remove screws [B] (

x4).

5. Disconnect the Motor (

x 2).

6. Remove Motor.

Replacement

Reinstall the motor

, but do not tighten screws [B] (

x 4).

2. Connect the motor connectors (

x 2) .

NOTE: The Orange wire on ”+”, and the Violet wire on ”-”.

3. Reverse the rest of the removal procedure.

4. Perform Stop Gate adjustment B (

3.5.2).

[A] [B]
