Plockmatic SQF-200 SquareFolder

SQF-4-13
Trouble-
shooting

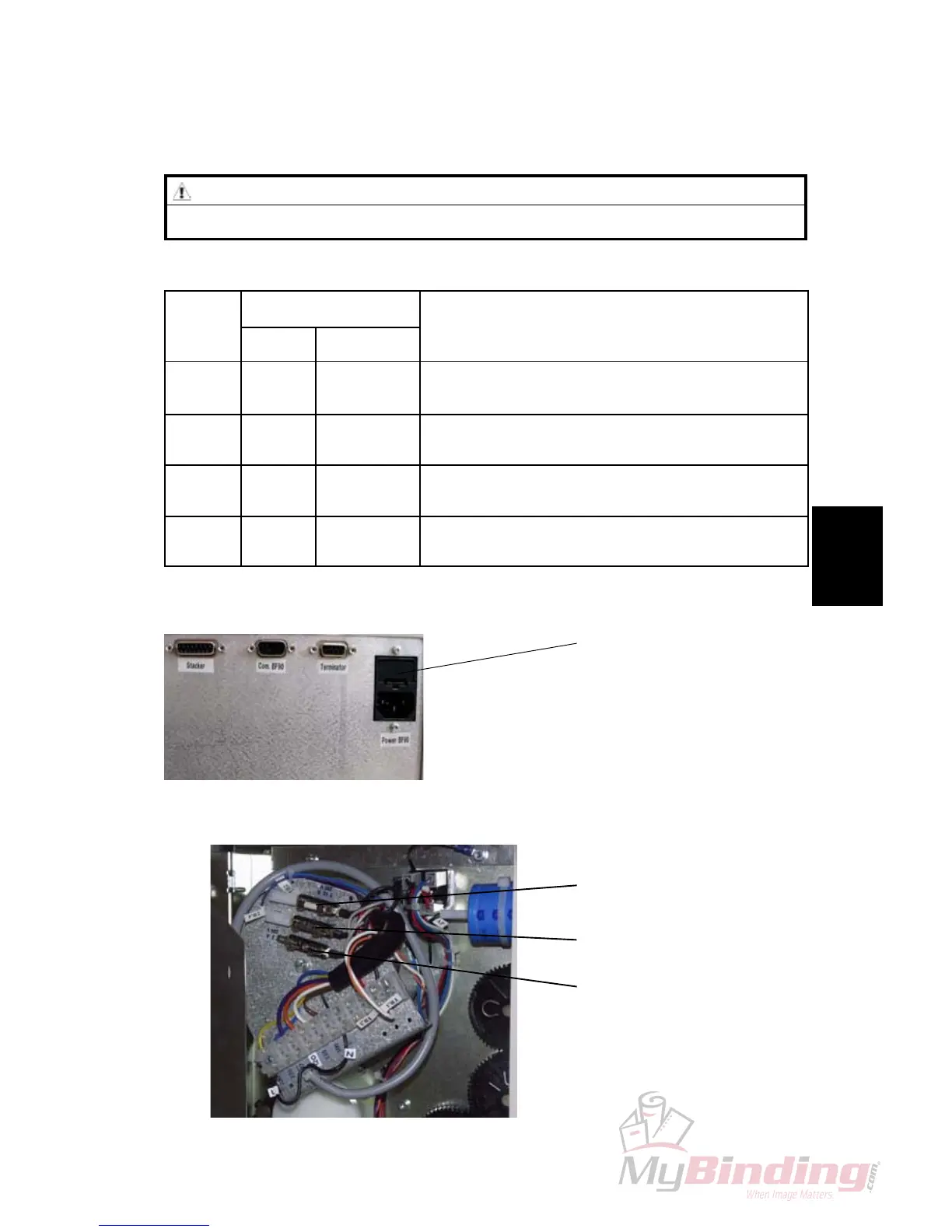

12 February 2007 BLOWN FUSE CONDITION
4.2 BLOWN FUSE CONDITION
Rating
Fuse Symptom at power on
115V 210-230V
F1 6.3A 3.15A SQF setting option gone from BM 200 UI
F2 10A 10A Fault in area E SQF-150
F3 2A 2A SQF setting option gone from BM 200 UI
F4    NotinuseintheSQF200conguration
WARNING
ONLY USE SLOW BLOW FUSES.
F3
F2
F4
F1
