SQF-3-18

29 November 2006

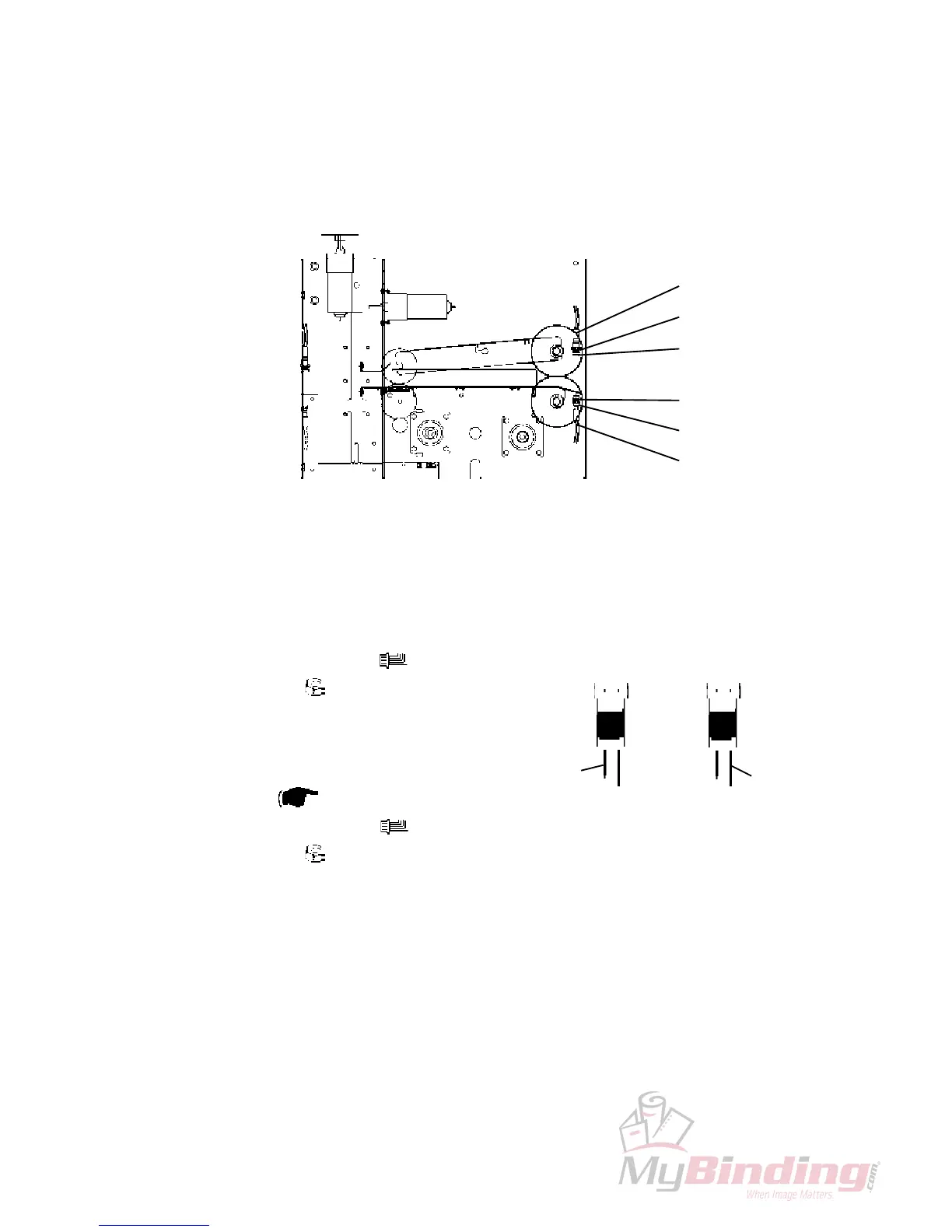

3.3.4 INFEED / OUTFEED SENSORS (Q5 AND Q7)

Removal Q5, LED

1. Open Top Cover.

2. Disconnect connector [A] (

x 1).

3. Remove nut [B] (

x 1).

4. Remove LED [C].

Removal Q5, phototransistor

1. Tilt machine (

3.1.6).

2. Disconnect connector [D] (

x 1).

3. Remove nut [E] (

x 1).

4. Remove Phototransistor [F].

Phototransistor

LED

White

Red

SENSORS AND SWITCHES

Infeed Sensor Q5)

[C]

[A]

[B]

[D]

[F]

[E]
