SQF-3-21

Replacement

Adjustment

29 November 2006

SENSORS AND SWITCHES

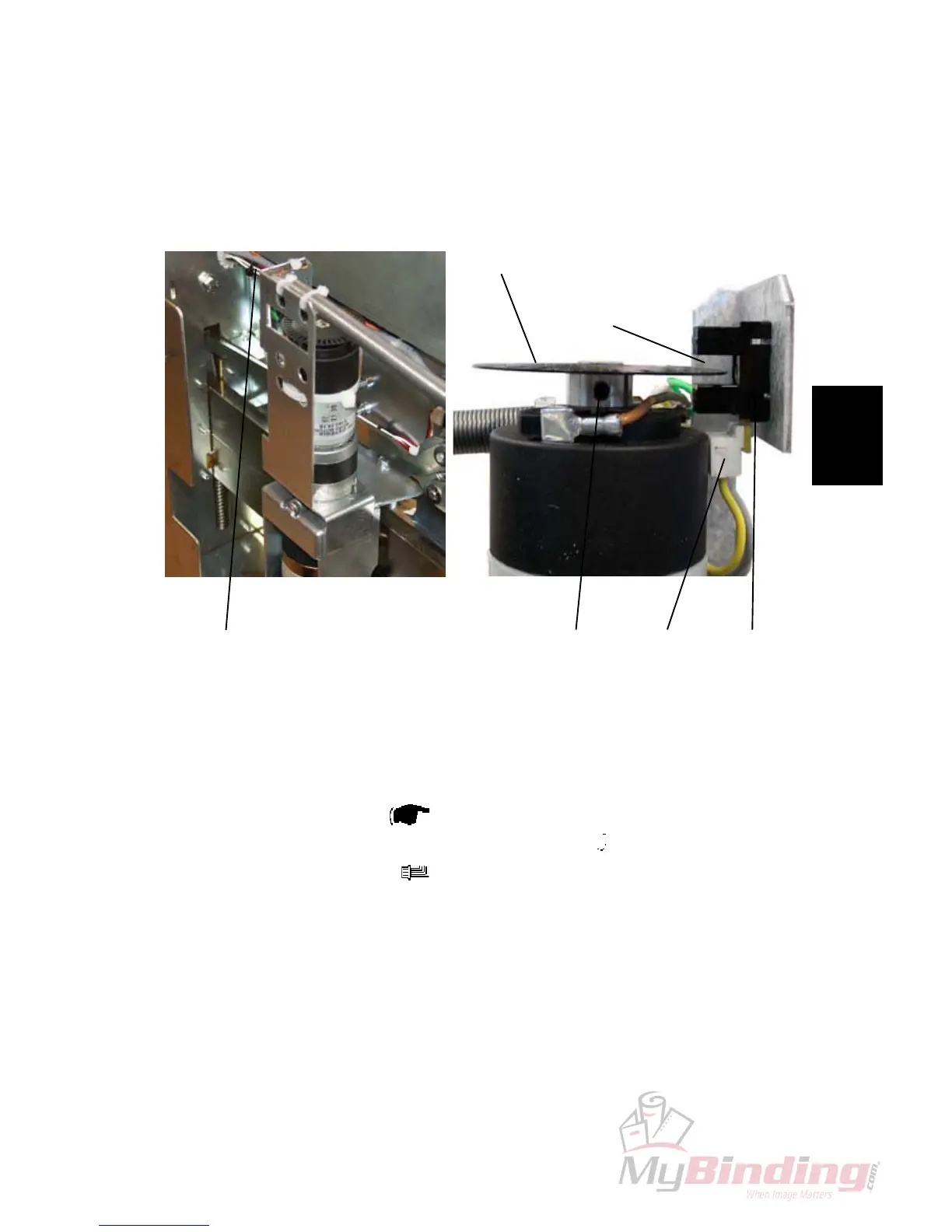

3.3.6 MOTOR M4 ENCODER SENSOR (Q8)

Removal

1. Remove Outfeed Cover (

3.1.4).

2. Loosen allen screw [A] and remove Tacho Disc [B] (

x 1).

2. Disconnect connector [C] (

x 1).

3. Remove sensor [D].

Replacement

Reverse the removal procedure.

NOTE:

Install Encoder Disc in centre [E] of slot in sensor.

[A] [C]

[D]

[B]

[E]
