Plockmatic SQF-200 SquareFolder

SQF-3-29
Replacement
Adjustment
29 November 2006
3.4.3 TEFLON TAPE LOWER TRANSPORT BELT
Removal
1. Open the Top cover.

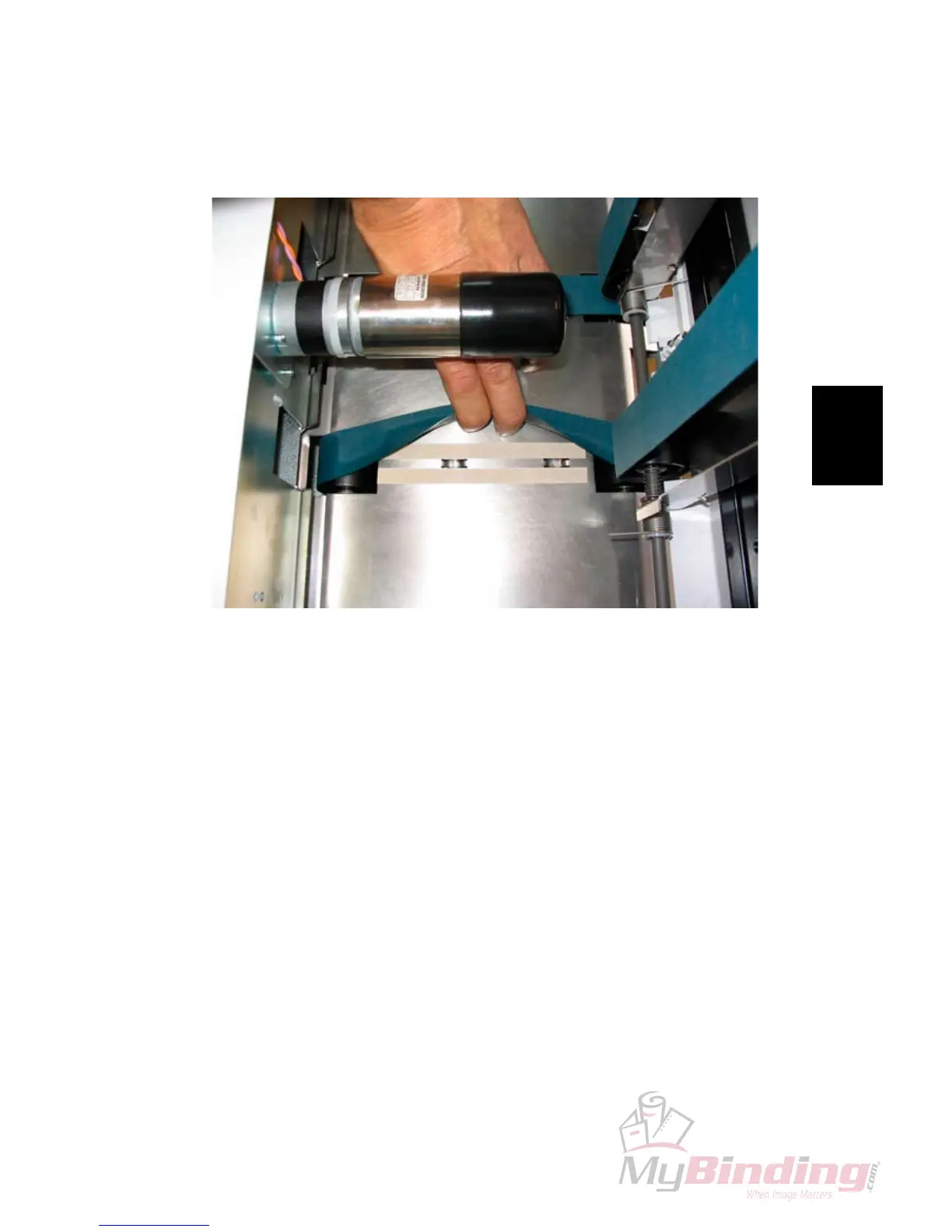

2. Lift the upper Feed belt assembly.
3. LiftthelowerFeedbeltandremoveTeontape.
Replacement
1. Mountthe
newteontapestrapsbetweenthecut-outsfortherollersandon
each side of the cut-outs for the cable ties.
BELTS
