Plockmatic SQF-200 SquareFolder

The motor drives:
MA-MD are for bi-directional motors with lower current
ME is for bi-directional motor with higher current.
MF is for one-directional motor with higher current.
One of three solenoid drives is used for the electro-mechanical counter.

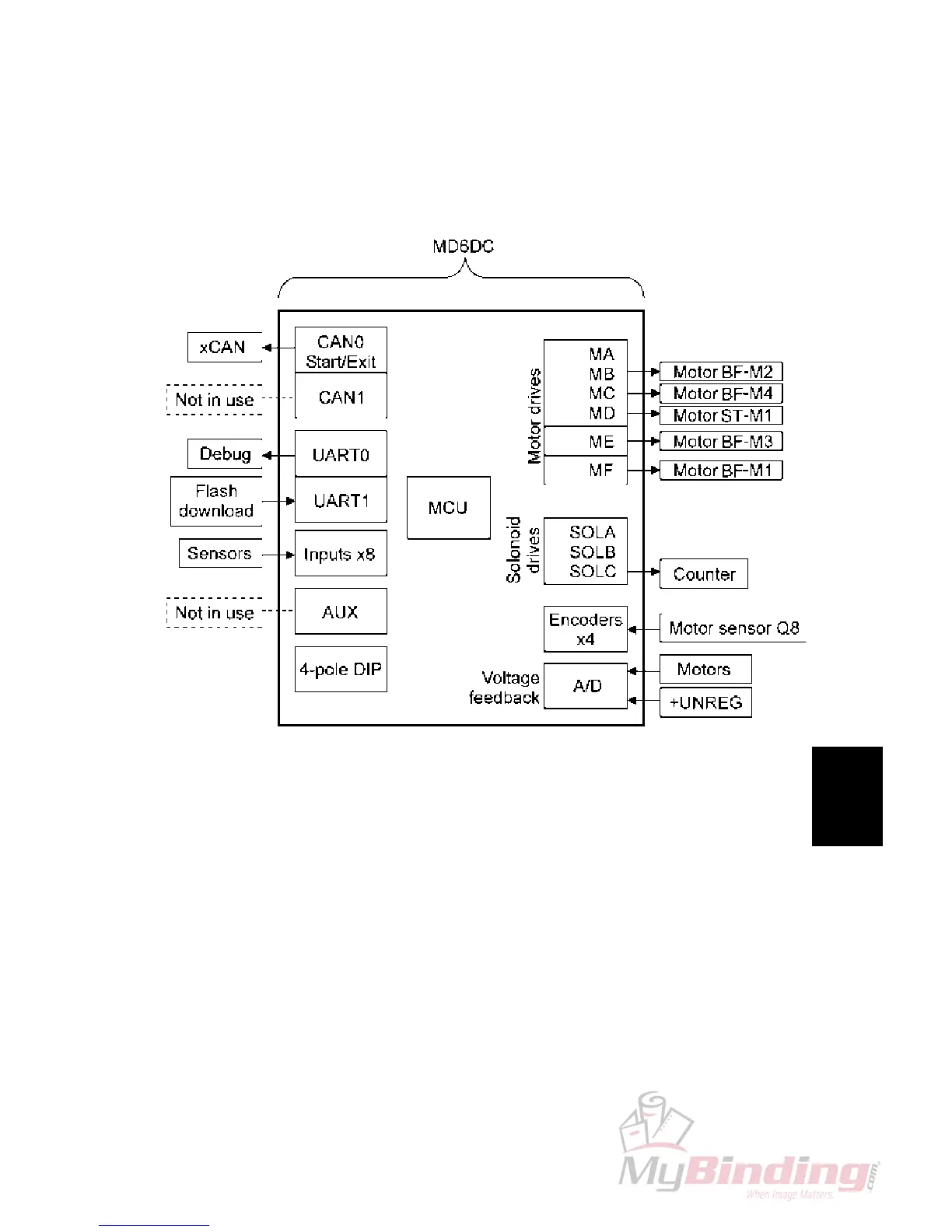

6.2 BOARD STRUCTURE
6.2.1 CONTROLLER MD6DC “D”
SQF-6-5
29 November 2006
Detailed De-
scription
BOARD STRUCTURE
