SQF-3-24

29 November 2006

SENSORS AND SWITCHES

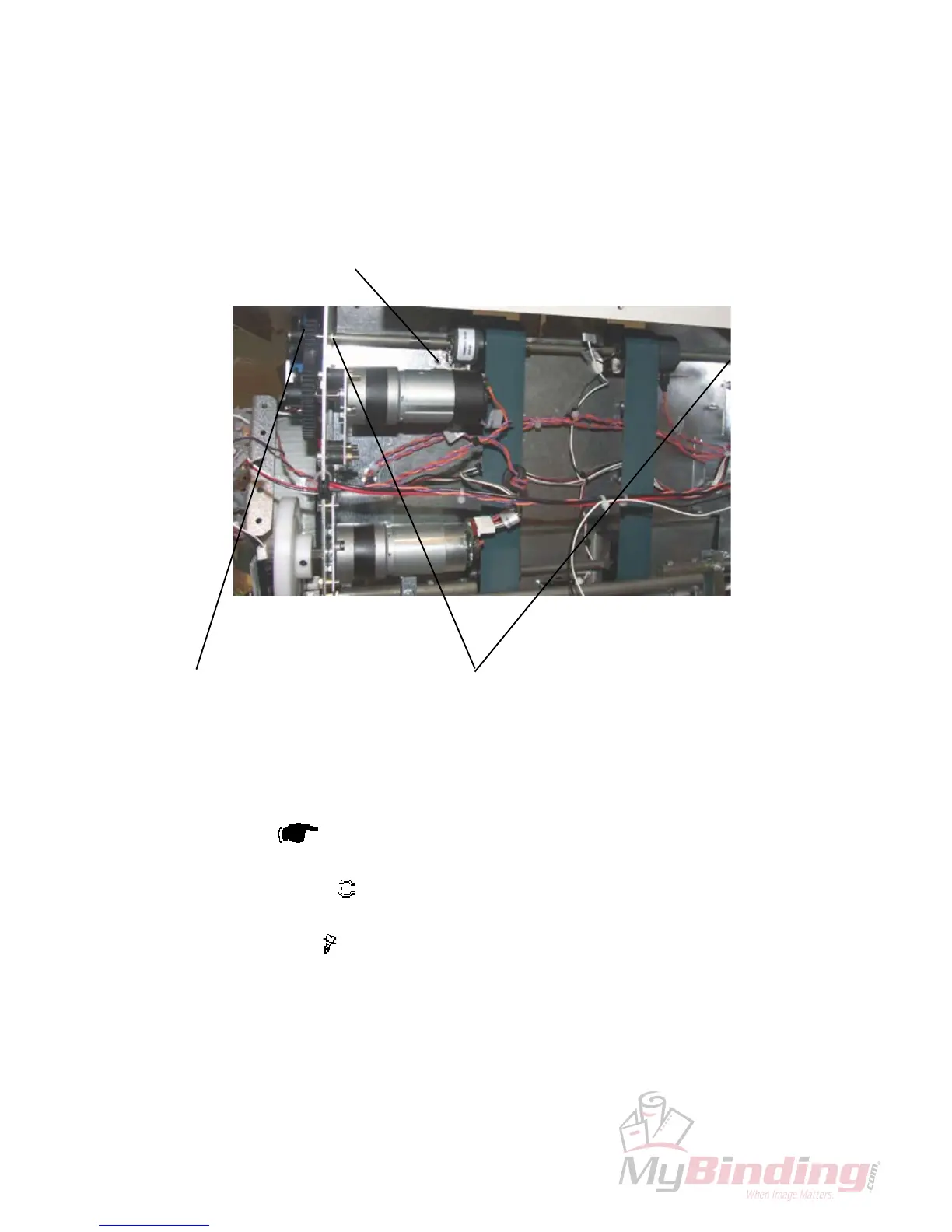

Removal

1. Tilt machine (

3.1.6).

2. Pulley [A].

3. Remove E-Clips [B] (

x2).

4. Lift out shaft.

5. Remove screw [C] (

x 1)

[A]

[C]

[B]

3.3.9 LOWER TRANSPORT BELT CLUTCHES (SOL2 & SOL4)
