SENSORS AND SWITCHES

3.3.8 UPPER TRANSPORT BELT CLUTCHES (SOL1 & SOL3)

Removal

1. Remove Upper Transport Belt (

3.4.1).

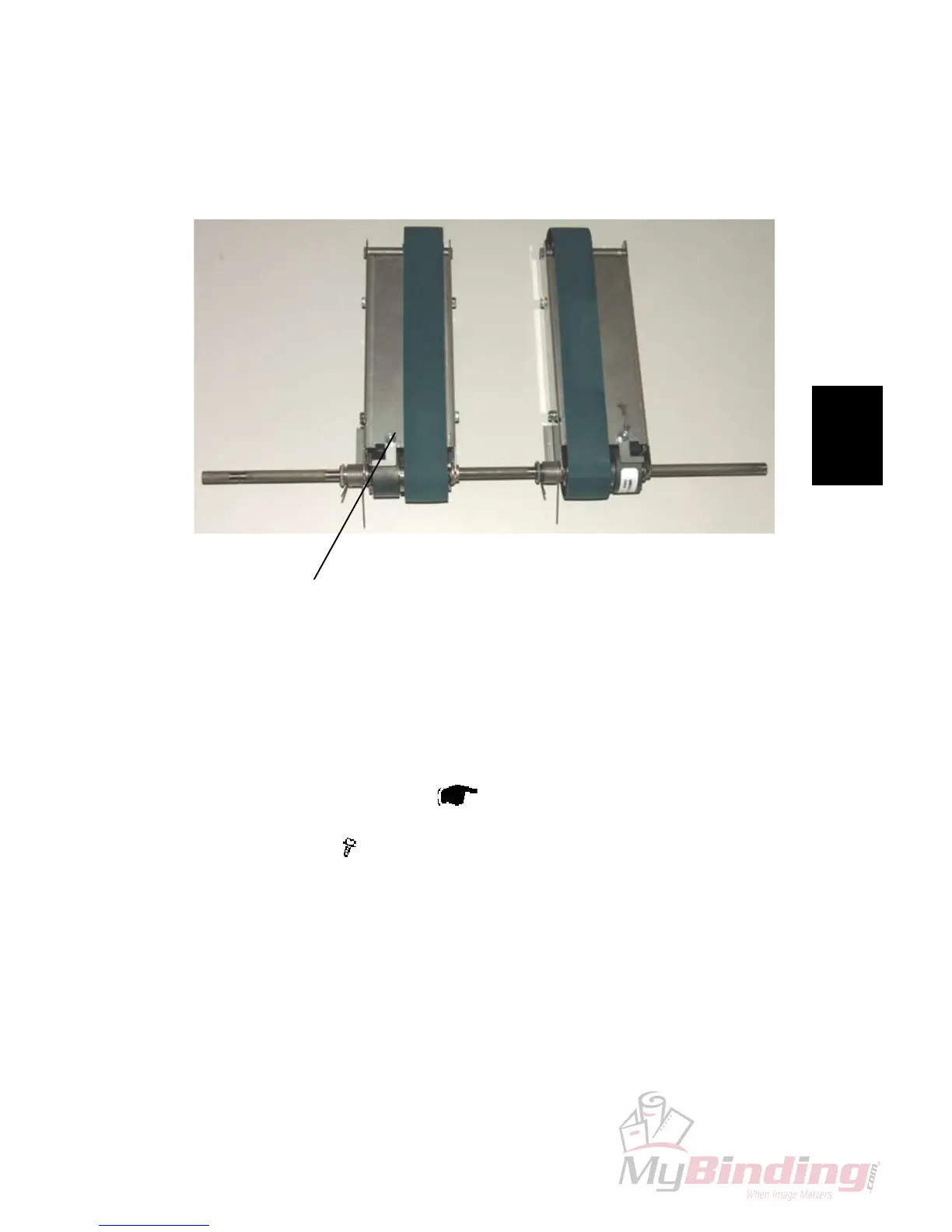

2. Remove belt [B].

3. Remove screw [A] (

x 1)

[A]

[B]
