Plockmatic SQF-200 SquareFolder - Clamp Sensor (Q6)

SQF-3-20
29 November 2006
SENSORS AND SWITCHES
3.3.5 CLAMP SENSOR (Q6)

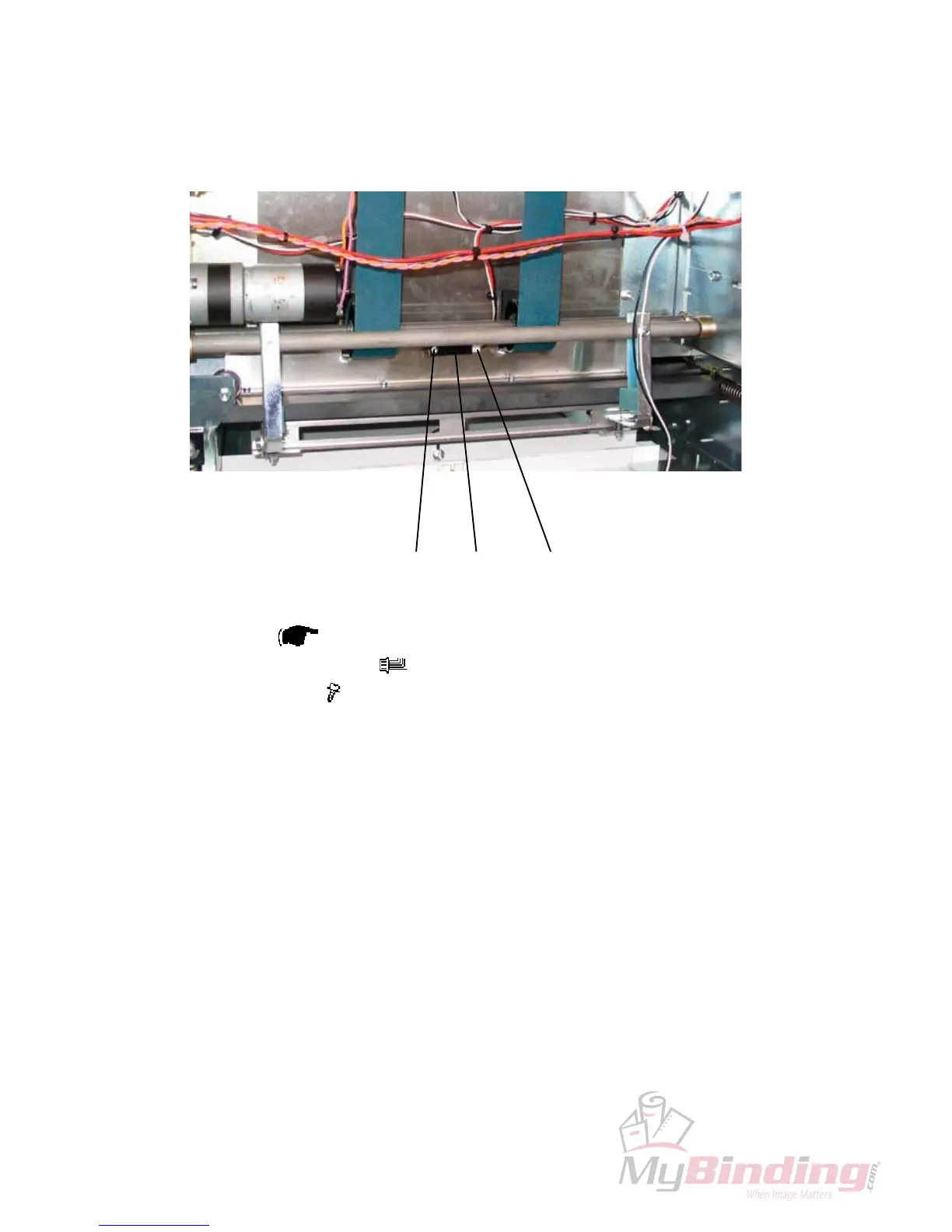

[A]
Removal
1. Tilt machine (
3.1.6).
2. Disconnect connector [A] (
x 1).
3. Remove screw [B] (
x 1).
4. Remove sensor [C].
[B] [C]
Bottom view
